Description

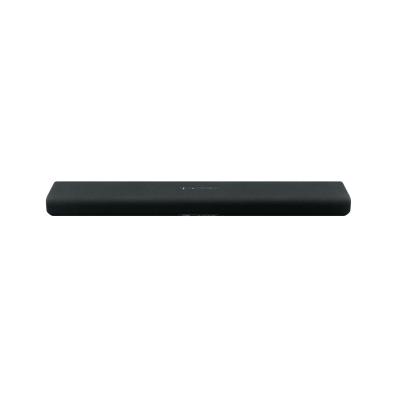

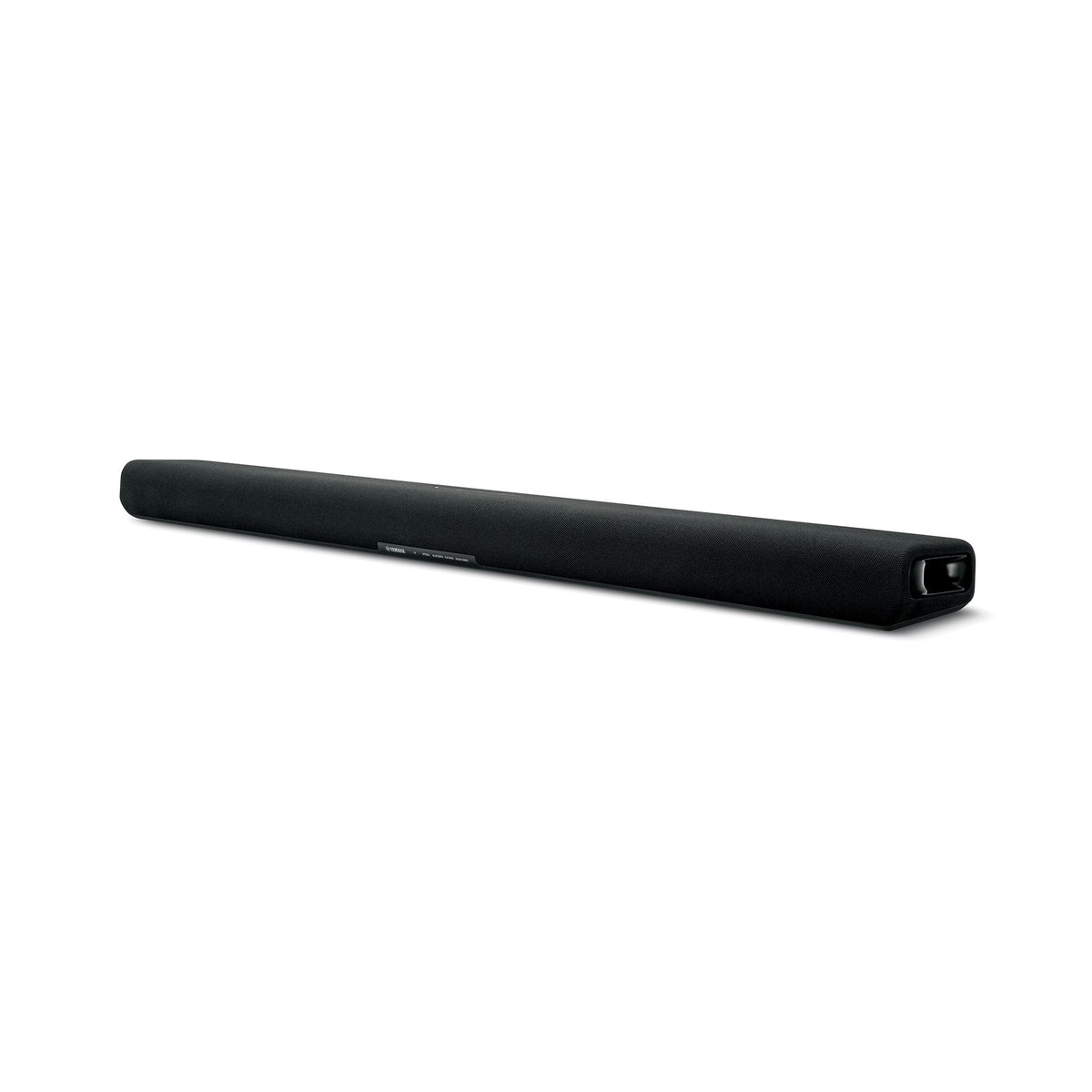

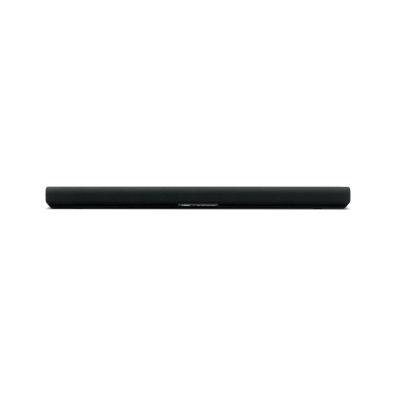

Yamaha SR-B30A Dolby Atmos Sound Bar with Built-In Subwoofers
All-in-one immersion. This sleek, single-body Dolby Atmos® sound bar has two subwoofer drivers built in, giving you rich bass without the need for a separate sub. Perfect for smaller living rooms, bedrooms and dens, it delivers surprisingly spacious and clear sound.
- Dolby Atmos immersive audio
- Single-body design with dual built-in subwoofers
- Clear Voice for enhanced dialogue clarity
- Stream your music, audiobooks and podcasts with Bluetooth®
- Easy, one-cable connection to your TV with HDMI or optical
- Wall-mountable with built-in keyholes
| SR-B30A | ||
|---|---|---|
| General | Drivers | Front L/R: 1.8" cone × 4, Tweeter: 1" dome × 2, Built-in subwoofer: 3" cone × 2 |
| Output Power | 120 W (Front L/R: 30 W × 2-ch, Built-in subwoofer: 60 W) | |
| Power Consumption | 23 W | |
| Standby Power Consumption | 0.3 W (HDMI control off, Bluetooth standby off), 0.6 W (HDMI control on, Bluetooth standby on) | |
| Dimensions (W x H x D) | Installing the unit in front of a TV: 35-7/8" × 2-5/8" × 5-1/4", Mounting the unit on a wall with spacers: 35-7/8" × 2-5/8" × 5-1/2" | |
| Weight | 8.6 lbs | |

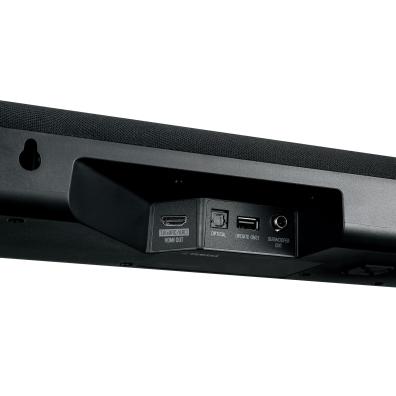

| Input / Output | HDMI | 1 out (eARC) |
| Digital Optical | Yes | |
| Subwoofer output | Yes | |
| Analog Audio | No | |
| HDMI | eARC/ARC | eARC/ARC |
| CEC | Yes | |
| Auto Lip-Sync | No | |
| Sound Technology | Virtual Surround Technology | Dolby Atmos |
| Surround Mode | Stereo, Standard, Movie, Game | |
| Compressed Music Enhancer | No | |
| Bass Extended | Yes | |
| Audio Formats | Dolby TrueHD | Yes |
| Dolby Digital Plus | Yes | |
| Dolby Digital | Yes | |
| Dolby Pro Logic II | No | |
| DTS Digital Surround | No | |
| Connectivity | Built-in music streaming services | Bluetooth |
| Wi-Fi | No | |
| MusicCast Surround | No | |
| AirPlay | No | |
| Bluetooth Version/Profile | Version: Ver 5.1 / Profiles: A2DP / Codecs: SBC, AAC | |
| Bluetooth Maximum Communication Range | Approx. 33ft (without obstructions) | |
| Wireless Subwoofer | No | |

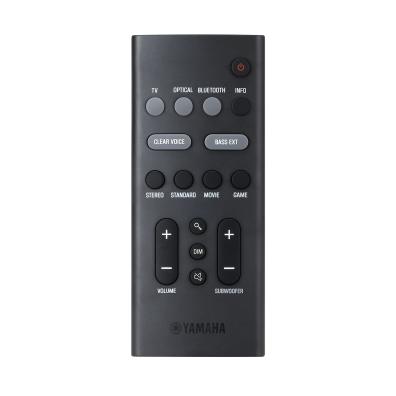

| Other Features | App Control | Yes (Sound Bar Remote) |
| Learning Function | No | |
