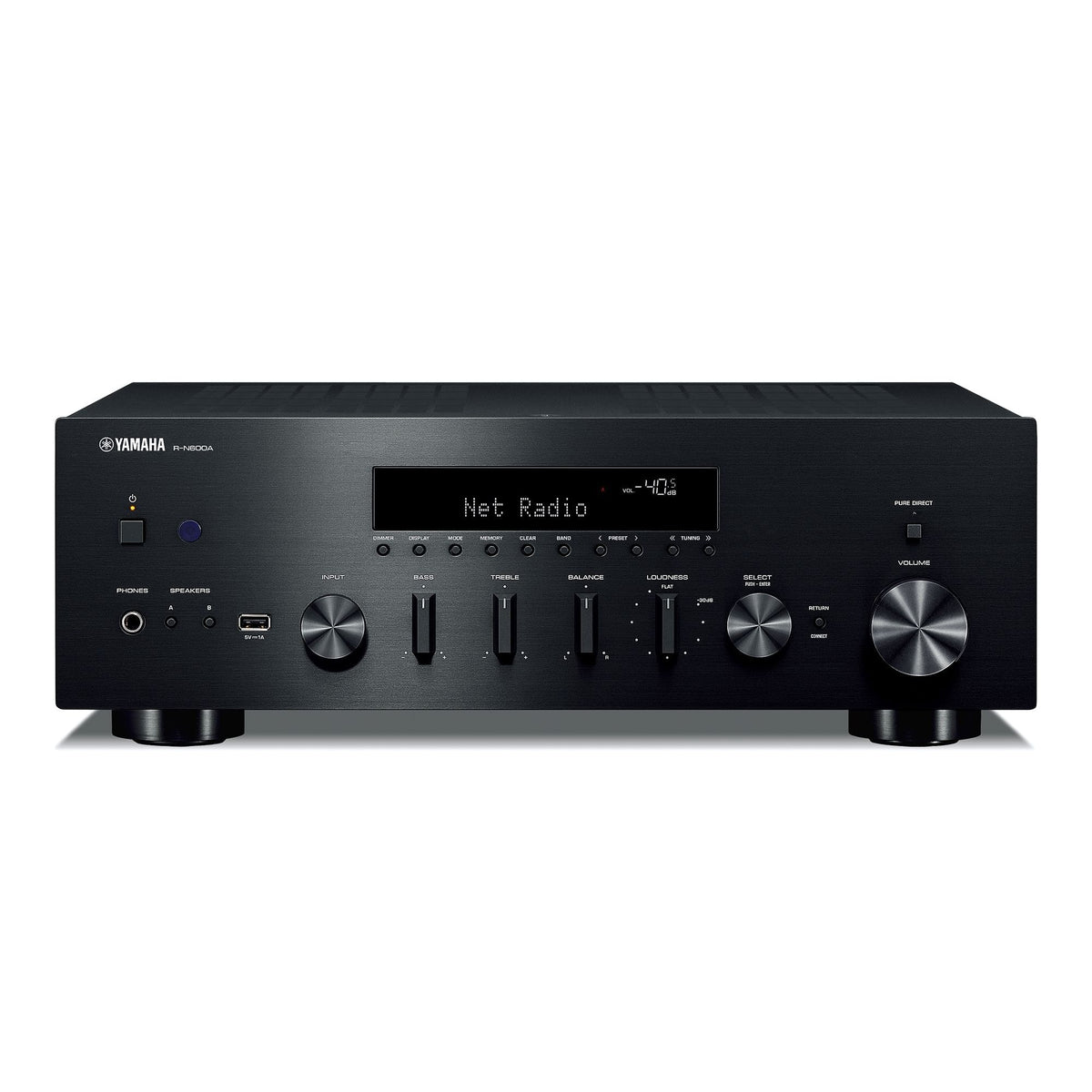

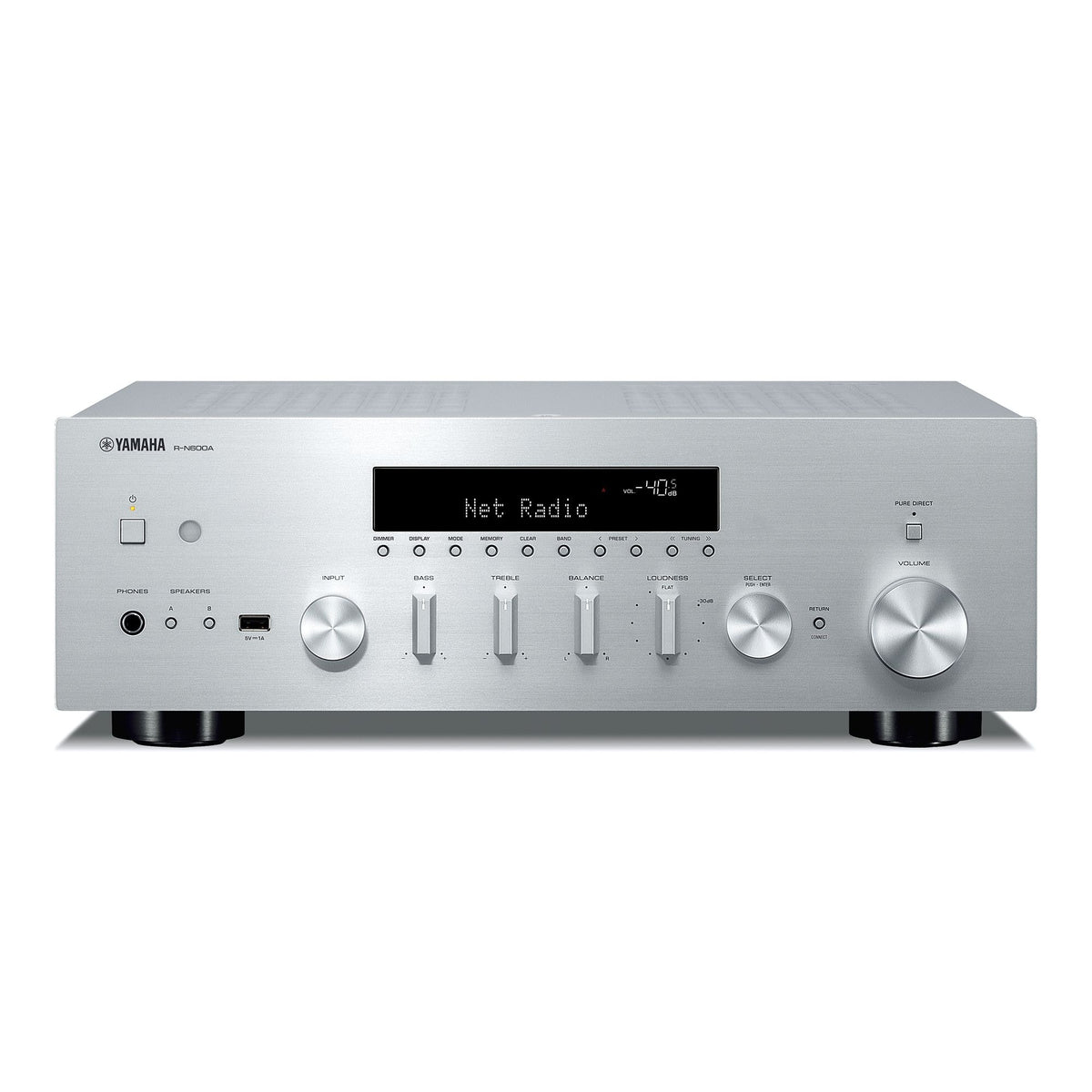

Yamaha R-N600A Network Receiver
The Yamaha R-N600A inherits our full-fledged Hi-Fi technology cultivated over many years. The unit is also compatible with MusicCast, giving you greater listening freedom and flexibility.
- Authentic Hi-Fi quality with ToP-ART mechanical structure and pure direct mode
- ESS SABRE ES9010K2M Ultra DAC for superior S/N performance
- MusicCast lets you stream from your favorite music services
- USB front-panel terminal and network capability allow high-performance DSD 11.2 MHz native playback and 384 kHz playback
- Subwoofer output for external subwoofer connection
- Special phono input terminals to enjoy your vinyl record collection
- Optical terminal to get your TV sound with Hi-Fi quality
| R-N600A | ||
|---|---|---|
| Network section | File Format | MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD |
| Wi-Fi | Yes | |
| Bluetooth | Yes (SBC / AAC) | |
| AirPlay | Yes (AirPlay 2) | |
| Rated Output Power | [20 Hz-20 kHz 0.07 % THD] 80 W+80 W (8 ohms) | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 105 / 125 / 150 / 175 W | |
| Frequency Response | 10 Hz-100 kHz 0±1.0 dB, 20-20 kHｚ 0±0.5 (Pure Direct ON) | |
| Signal-to-Noise Ratio (CD) | 100 dB (Pure Direct ON) | |
| Audio In / Out | Phono, CD, line1, line2, line3 | |
| Digital Input | Optical1, Optical2, Coaxial1, Coaxial2 | |
| HDMI(ARC) | No | |
| Phono Input | Yes | |
| USB Input | Yes (For USB storage device) | |
| Ethernet | Yes | |
| Headphone Out | Yes | |
| Subwoofer Out | Yes | |
| Control (Trigger) Out | No | |
| FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) | 3 µV (20.8 dBf) | |
| FM Signal-to-Noise Ratio (Mono/Stereo) | 65 dB / 64 dB | |
| Pure Direct | Yes | |
| ToP-ART | Yes | |
| Standby Power Consumption | 0.2 W (Network standby on/ Wi-Fi connection 2.0 W) | |
| Dimensions (W x H x D) | 17-1/8" x 6" x 15-3/8" (with antenna up: 17-1/8" x 8-7/8" x 15-3/8") | |
| Weight | 21.6 lbs | |
