Description
Yamaha CIS VSC Series "S Model" Ceiling Subwoofer, Each
- AB-C8S (sold separately) is required to secure safe installation of VXC8S
Naturally Extended Lows Bring the Music to Life
VXC series “S model" ceiling subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction without spoiling interior design of architectures.
Features:
A Choice of Models for All Low-frequency Needs
Luxurious bass response can enhance musical presence and realism in a big way. The enclosures of VXC series S models incorporate a band-pass design to reduce unwanted vibrations and noise, making it possible to achieve a higher SPL.
Band-pass structure of VXC8S
Smart Design for Safer, Faster Installation
The VXC-S ceiling speakers come with smart mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.
Carrying Band
Anti-Drop Tab
Hi-Z or Lo-Z
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
Portable

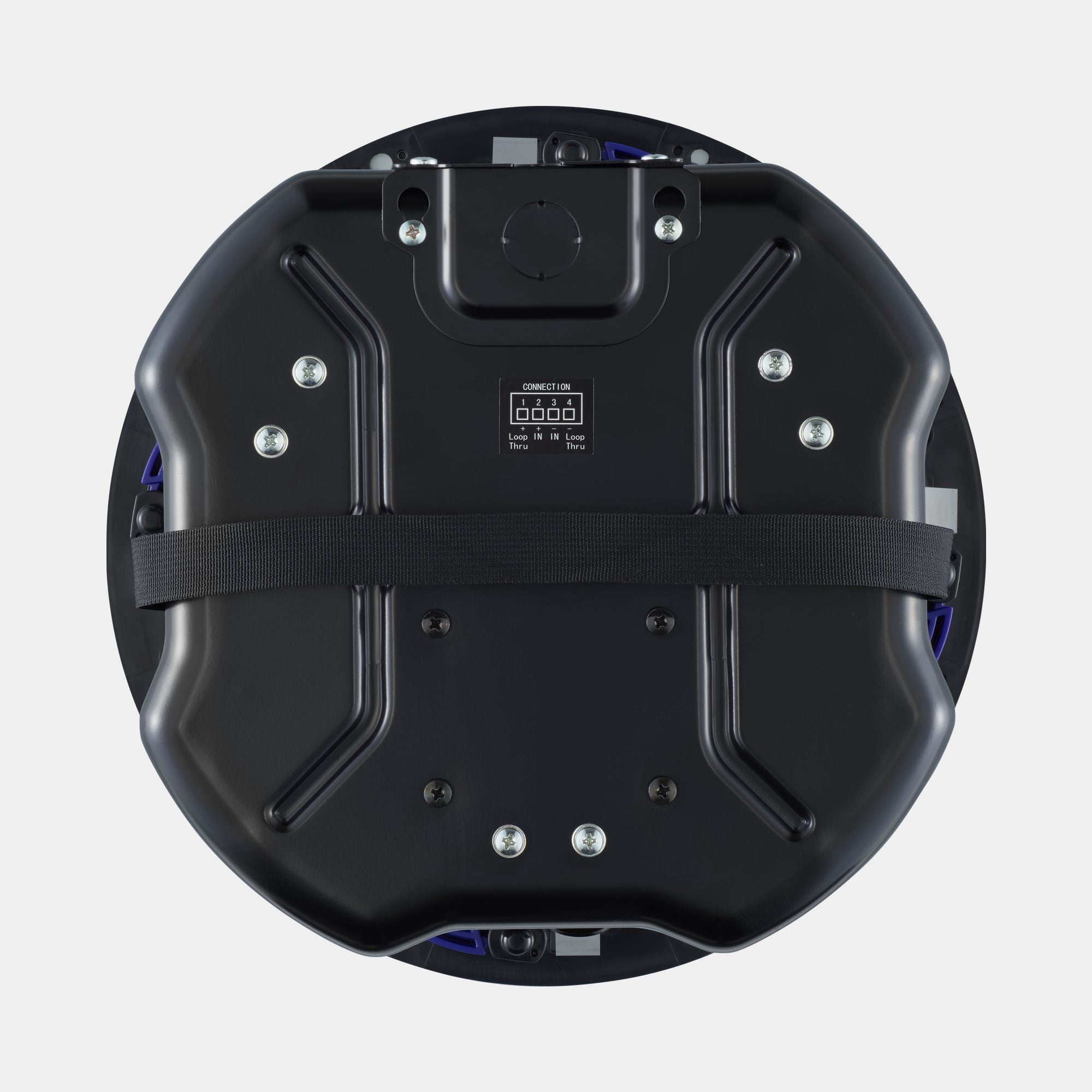

A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.
Secure
An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.
Fast
Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.
Streamlined
The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.
Paintable
The supplied grilles can be painted any color to match interior decor.
Specs:
| VXC8SB / VXC8SW | ||
|---|---|---|
| Speaker type | Band-pass type Subwoofer | |
| Frequency range (-10dB) | 44 Hz - 200 Hz (Half-space 2π) | |
| Nominal coverage | - | |
| Components | LF | 8" Cone |
| Power rating | NOISE | 100 W |
| PGM | 200 W | |
| PEAK | 400 W | |
| Nominal impedance | 8 Ω | |
| Transformer taps | 100V | 60 W, 30 W, 15 W, 7.5 W |
| 70V | 60 W, 30 W, 15 W, 7.5 W, 3.8 W | |
| SPL | Sensitivity (1W; 1m on axis) | 88 dB SPL (Half-space 2π) |
| Peak (Calculated) | 114 dB SPL (Calculated, 1m) | |

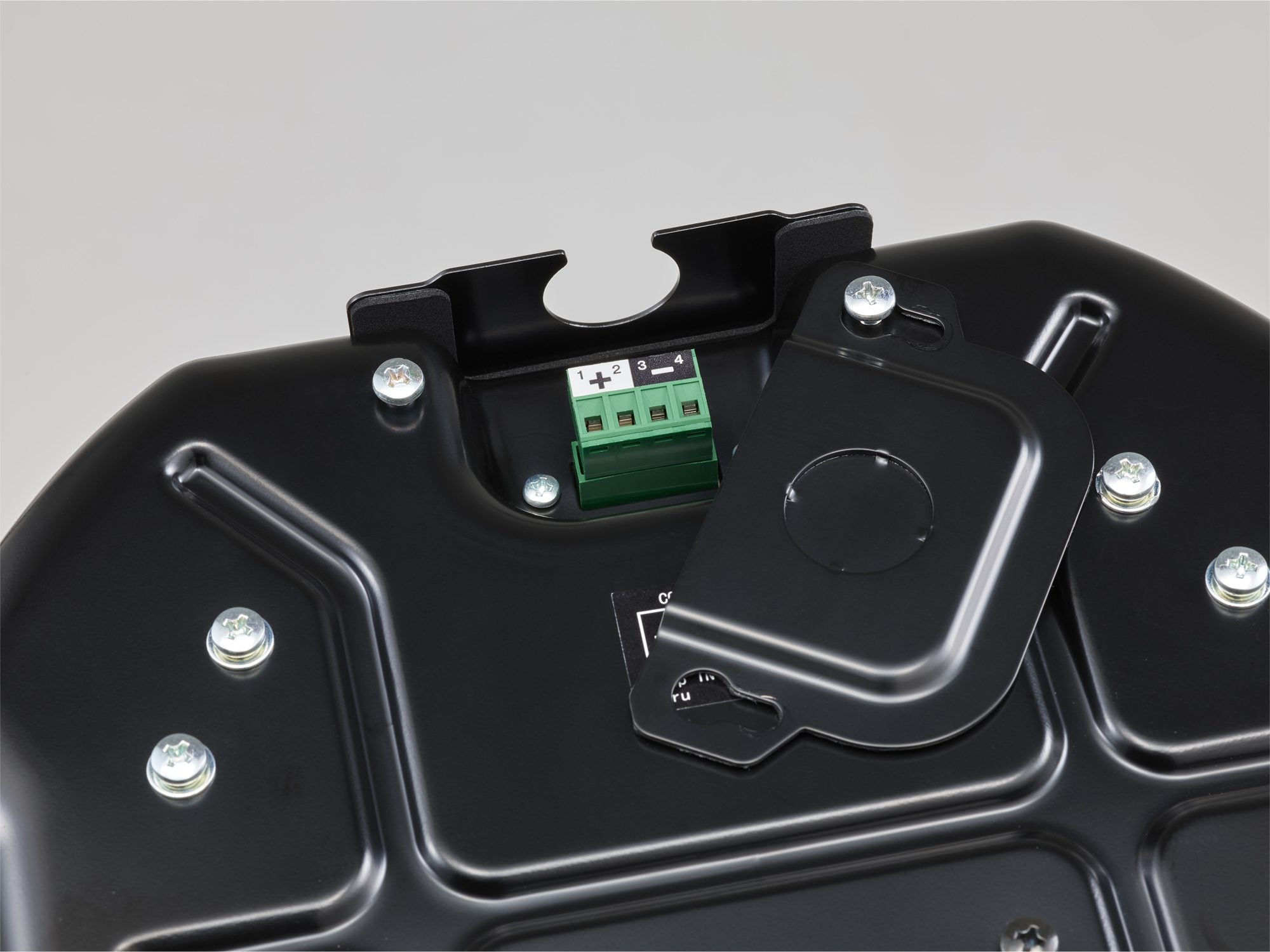

| I/O connectors | Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-) | |
| Protection circuit | Load protection | Full-range power limiting to protect network and transducers |

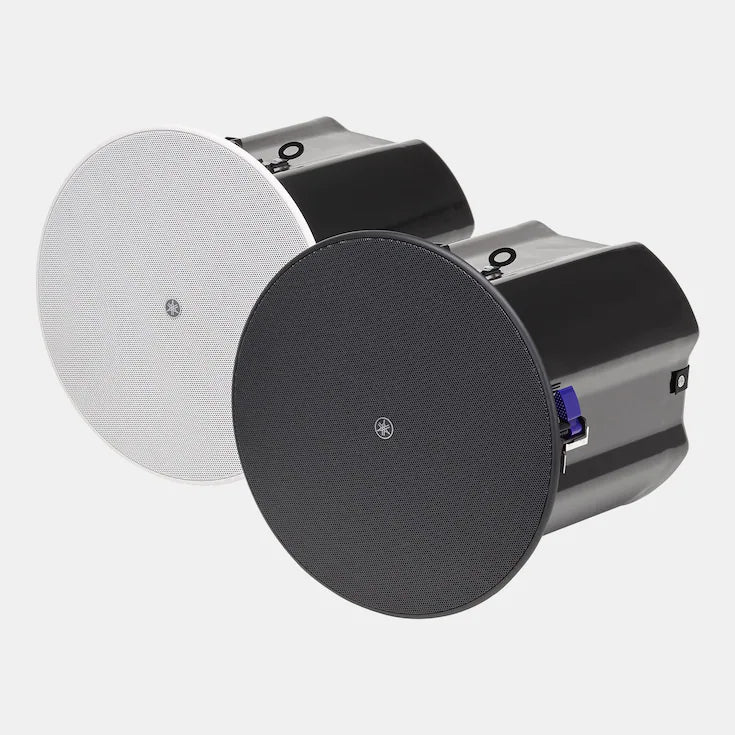

| Finish | VXC8SB: Black (approx. Munsell N3), VXC8SW: White (approx. Munsell N9.3) | |
| Dimensions | Diameter | 324 mm (12-13/16") |
| D | 314 mm (12-23/64") | |
| Net weight | 8.7 kg (19.2 lbs) | |
| Cutout size | Ø285 mm (Ø11-7/32") | |
| Required ceiling board thickness | 5 mm - 37 mm | |
| Accessories | Cutout Template | |
| Packaging | Single package | |
| Certificate | UL1480, UL2043, NFPA70, CE, EAC, RoHS | |
| EN54-24 compliance | - | |
| Others | Conduit tube: Ø15.4 mm - Ø21.3 mm | |
| Options | AB-C8S: O-ring + Tile Rail kit | |
