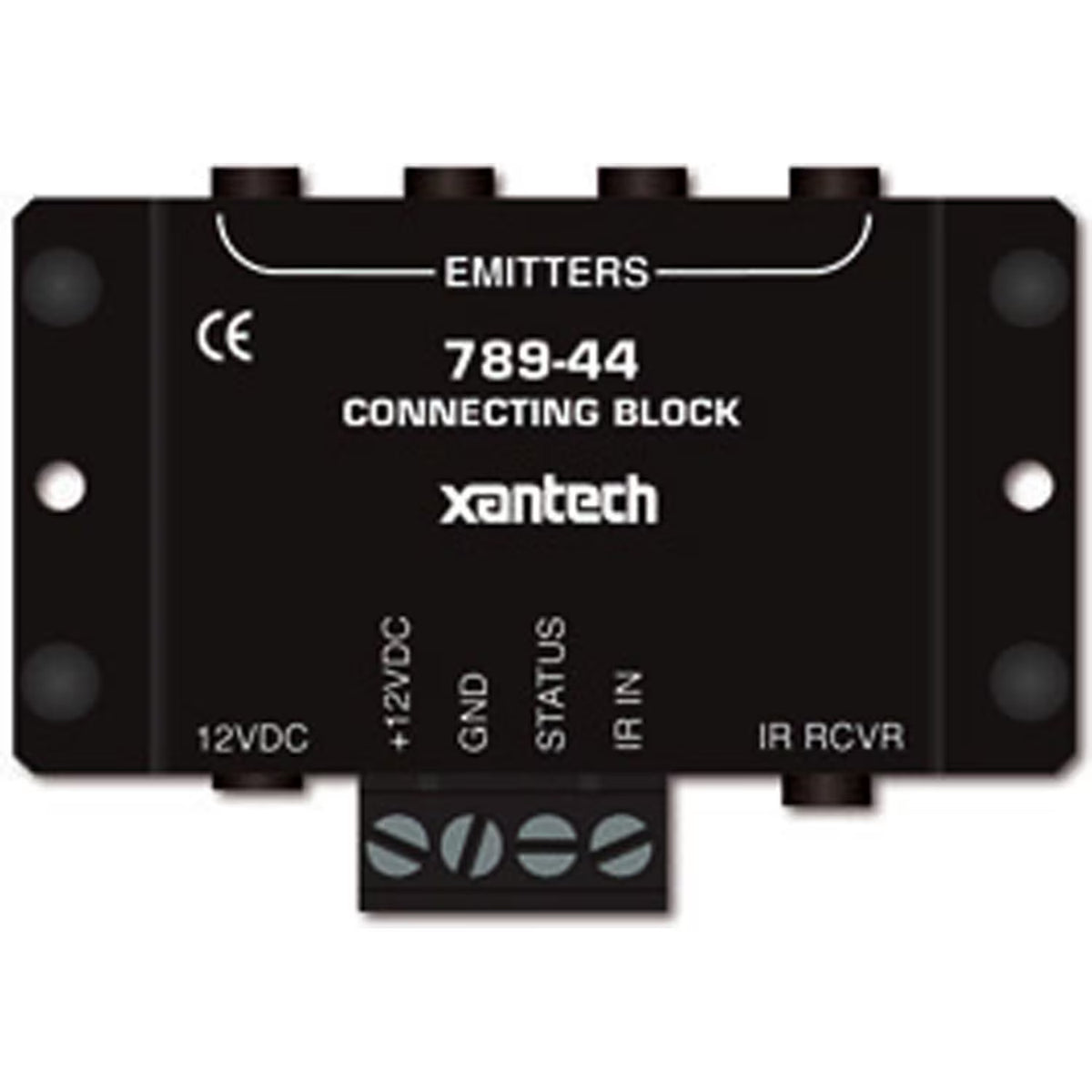

Xantech 789-44 One Zone Four Source Connecting Block
Roll over image to zoom in Click on image to zoom
Xantech 789-44 One Zone Four Source Connecting Block

Xantech 789-44 One Zone Four Source Connecting Block

XantechSKU: 789-44
Price:

Login to see pricing

MSRP:
$82.62
Stock:
Call for availability

Description

Features

  • Connects four emitter ports and power supply to all Xantech infrared receivers and keypads
  • Four parallel emitter ports with 470-Ohm resistors drive four single or four dual emitters
  • Quick-connect stereo mini jack for IR Receivers that use a stereo mini plug
  • STATUS terminal for connection of IR Receivers and Keypads that have status LED's
  • 2.1 mm coaxial power jack
  • Requires either the 781ERGPS or 782ERGPS power supply
  • Dimensions: 3" x 1 3/4" x 13/16" (77mm x 45mm x 21mm)
  • Power LED

Specifications

Shipping Info
  • Length6.1 (Inches)
  • Width3.4 (Inches)
  • Height1.6 (Inches)
  • Weight0.3 (Lbs)
  • Unit of MeasureEach
  • UPC042777789443
  • Master Pack Qty129

Downloads

Manual
