Description
Wiim Amp Ultra (Single Pack)
Features

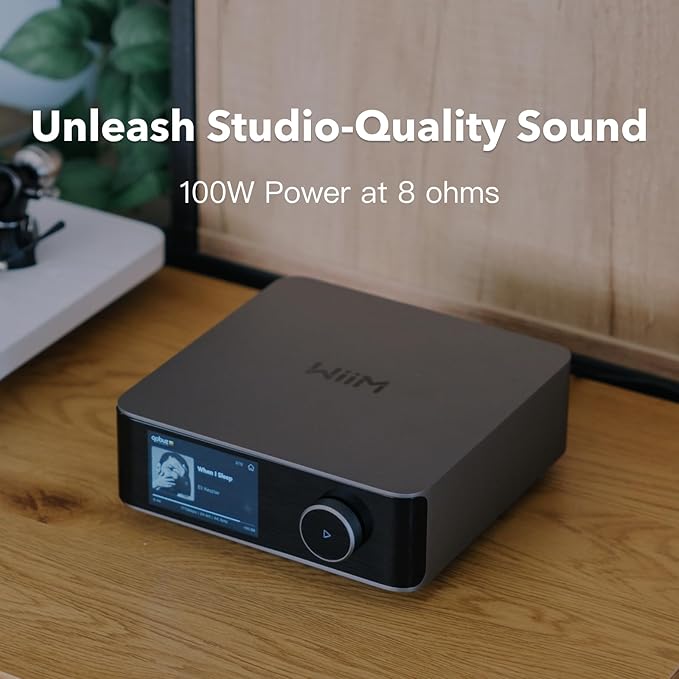

- 100W Hi-Fi Amplifier – Powers up to four speakers with ultra-low distortion ( -106 dB THD+N) and dynamic clarity—perfect for music lovers and home theater fans.
- Audiophile Components – Features ESS SABRE DAC, dual TI TPA3255 amps, and PFFB tech for precise, load-independent sound performance.
- Next-Gen Connectivity – Enjoy ultra-fast, stable streaming with Wi-Fi 6, Bluetooth 5.3 with LE Audio, and HDMI ARC for seamless TV integration.
- Built-In RoomFit Room Correction – Auto-calibrates sound based on your room and speakers for a personalized, perfectly balanced listening experience.

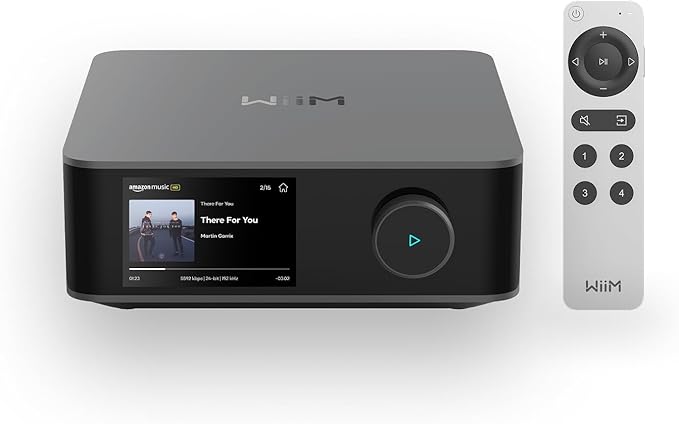

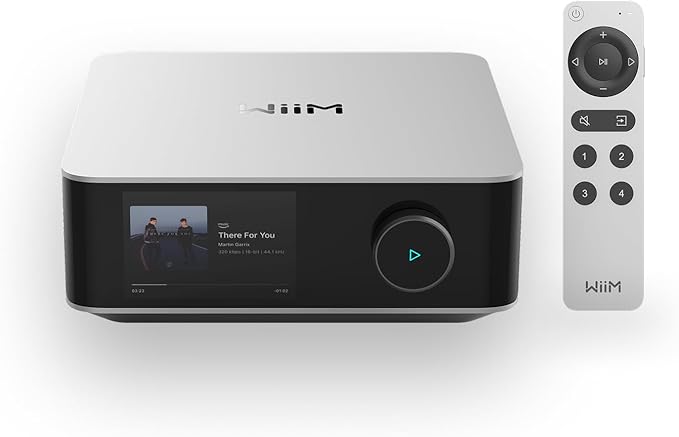

- Smart Touchscreen Design – Sleek unibody aluminum case with 3.5” glass-covered display for easy control, album art, and system settings.
- Multi-Room & Voice Control – Sync with WiiM, Alexa, or Google speakers and control playback via app, voice assistants, or the included voice remote.
- Stream Everything You Love – Supports Spotify, TIDAL, Qobuz, Amazon Music, Roon Ready, Chromecast, and more in up to 24-bit/192kHz quality.
Dimensions and Weight
-
Dimensions: 7.87 x 8.3 x 3 inches (200 x 211 x 76.2 mm)
-
Weight: 5.4 lbs (2.45 kg)
-
Chassis: Precision-machined unibody aluminum for durability & heat dissipation
Audio Performance
-
Power Output: 100 W per channel @ 8Ω, 200 W per channel @ 4Ω (THD = 0.08%, two channels driven)
-
Amplifier Technology: Class-D with PFFB (Post-Filter Feedback) technology
-
Total Harmonic Distortion (THD+N): ≤0.005%, -106 dB (A-weighted)
-
Signal-to-Noise Ratio (SNR): ≥120dB
-
Damping Factor: 94
-
Frequency Response: 20Hz – 20kHz ± 0.5dB
-
Impedance Range: 2 – 8Ω
Premium Audio Components
-
DAC: ESS 9039Q2M high-performance DAC
-
Amplifiers: Dual TI TPA3255 Amps
-
Op-Amps: TI OPA1612 for ultra-low distortion and rich, detailed sound
-
Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
-
Dynamic Range: ≥120dB for high-resolution sound

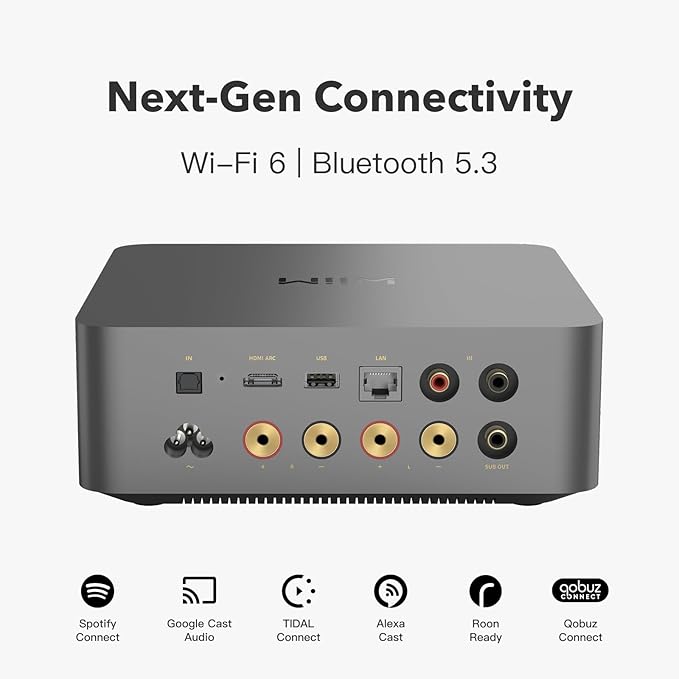

Input & Output Options
-
Analog Inputs: 1x RCA Stereo (Connects to CD players, turntables, or PCs)
-
Digital Inputs: 1x Optical (TOSLINK) – Up to 192kHz/24-bit
-
HDMI ARC: Receives audio from TVs (PCM up to 192kHz/24-bit, and Dolby Digital 5.1)
-
Speaker Outputs: Gold-plated binding posts (supports banana plugs or bare wire)
-
USB Audio Output: Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant
-
Sub Output: Dedicated RCA Mono output for powered subwoofers
Wireless & Network Connectivity
-
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID
-
Wi-Fi 6: High-speed wireless streaming (Upgradeable to Wi-Fi 6E)
-
Wired Network: Ethernet (100Mbps) Standard RJ45 port
EQ & Sound Customization
-
Input-Specific EQ: Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, and Line-In
-
EQ Tools: 10-Band Graphic & Parametric EQ
-
Presets: 24 Preset EQ Profiles
-
Room Correction: Built-in mic-guided acoustic tuning
Streaming & Smart Features
-
Protocols: WiiM Home App, Google Cast, Spotify Connect, TIDAL Connect, DLNA, LMS
-
Roon Ready: Certification Pending
-
Multi-Room Audio: Compatible with WiiM, Google Home, and Alexa systems
-
Stereo Pairing: Supports L/R speaker setup for enhanced imaging
-
Home Theater Mode: Functions as front, center, or surround in a Dolby 5.1 setup
-
Smart Presets: Quick access to playlists, sources, or routines
Touch Display & Controls
-
Screen: 3.5” glass-covered capacitive touchscreen
-
Display Features: Album art, VU meters, playback controls, EQ adjustment, and queue view
-
Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)
-
Thermal Management: Copper heat pipe and passive cooling for silent operation
Package Contents
-
1x User Guide
-
1x Power Cable
-
1x RCA Cable
-
1x Optical Cable
-
1x HDMI Cable
-
1x Remote Control
-
4x Banana Plugs
