Description

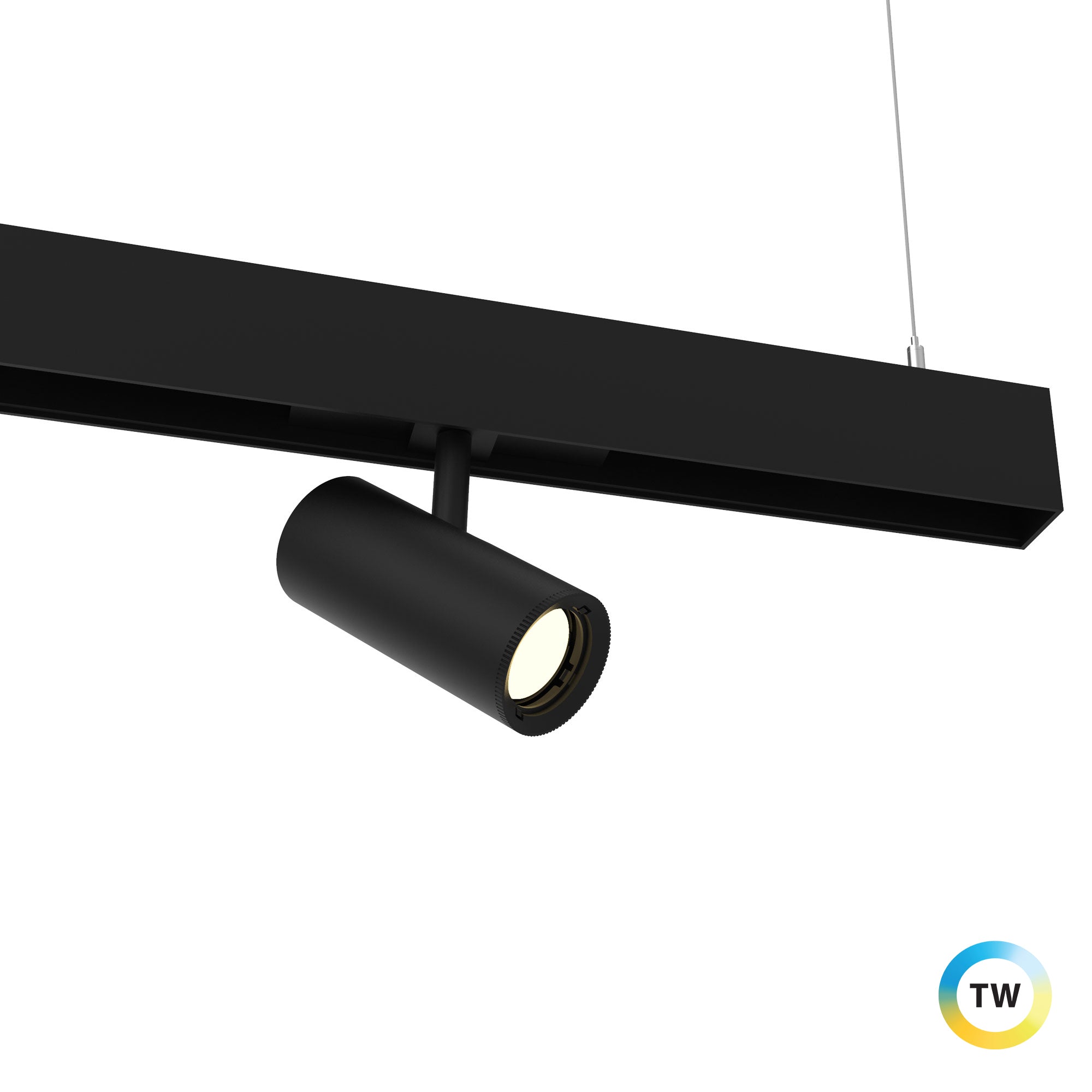

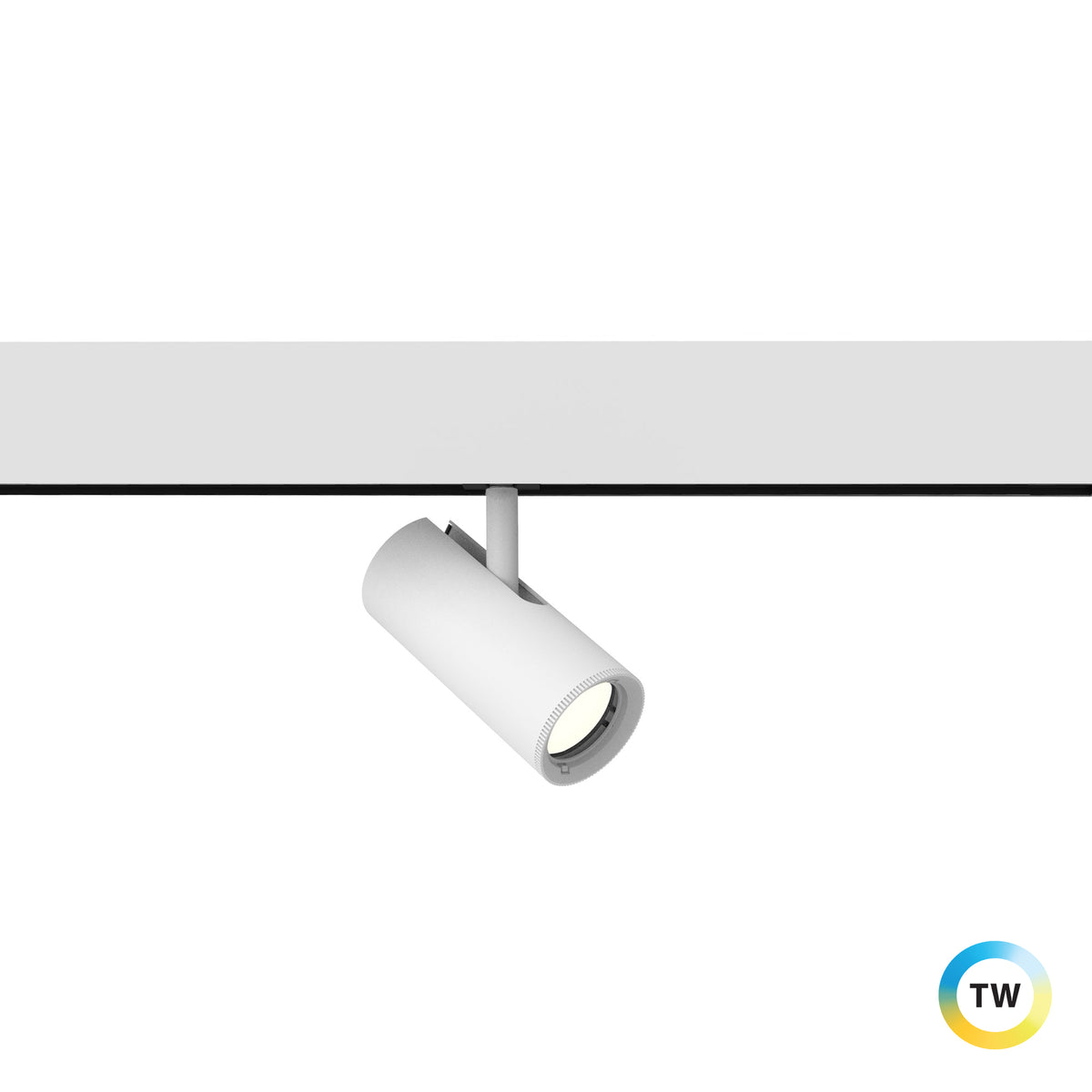

WAC VENTRIX Tunable White Silo S2SA-2
Features
- Delivered Lumens: Up to 1745lm
- CBCP: Up to 4790
- CCT: 1800K-4000K
- CRI: 90
- Power: 29W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- DMX Dimming: 100-0.1%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum
- Adjustable accent elements with high lumen output.
- Stealth armature with 360° horizontal rotation and 90° vertical aiming
- Accepts one lens and glare control accessory
- To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
- Narrow Flood, Flood, Wide Flood optics are field changeable.
- Driver concealed within the fixture
- Can be mounted on ceiling or wall vertically or horizontally

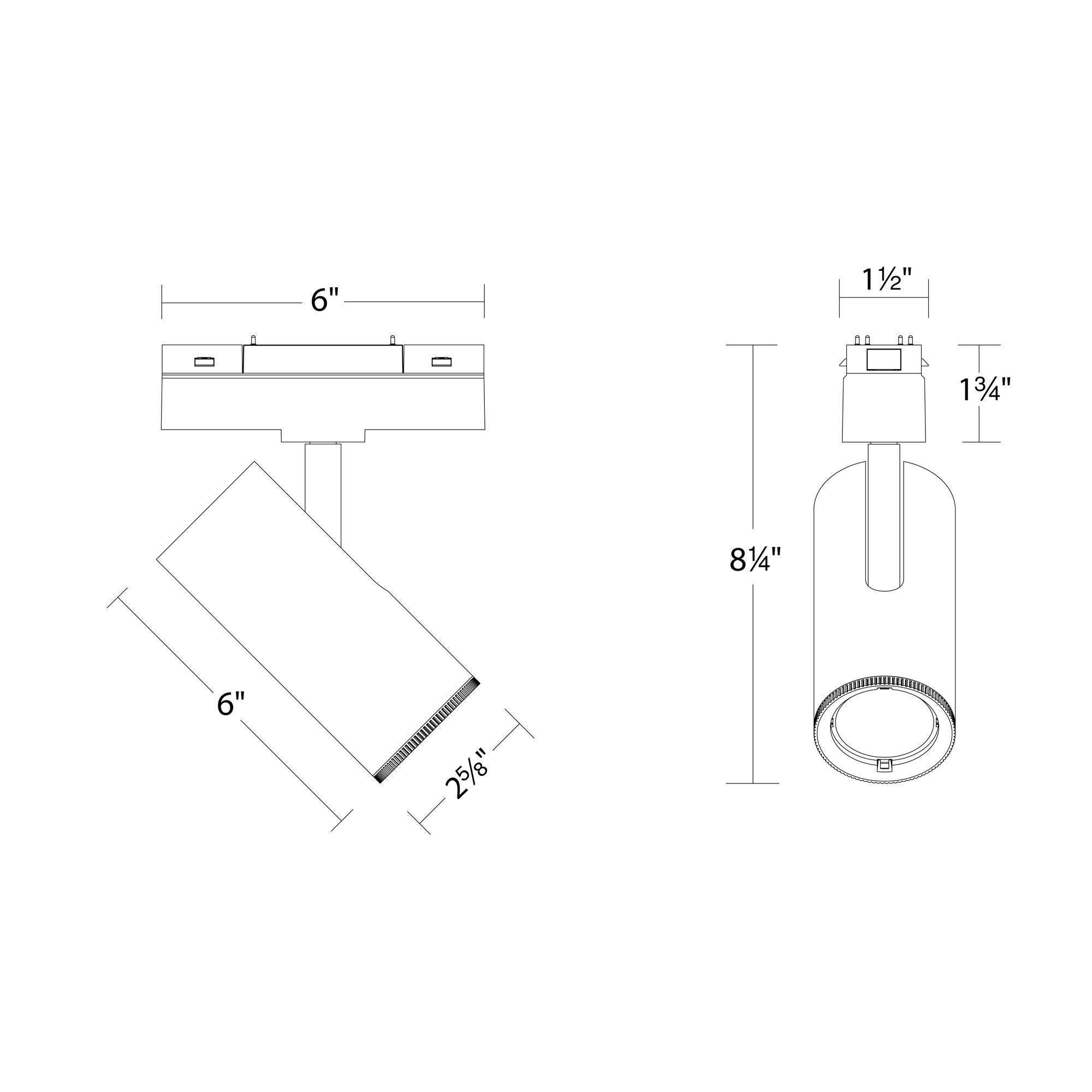

Line Drawing
