Description

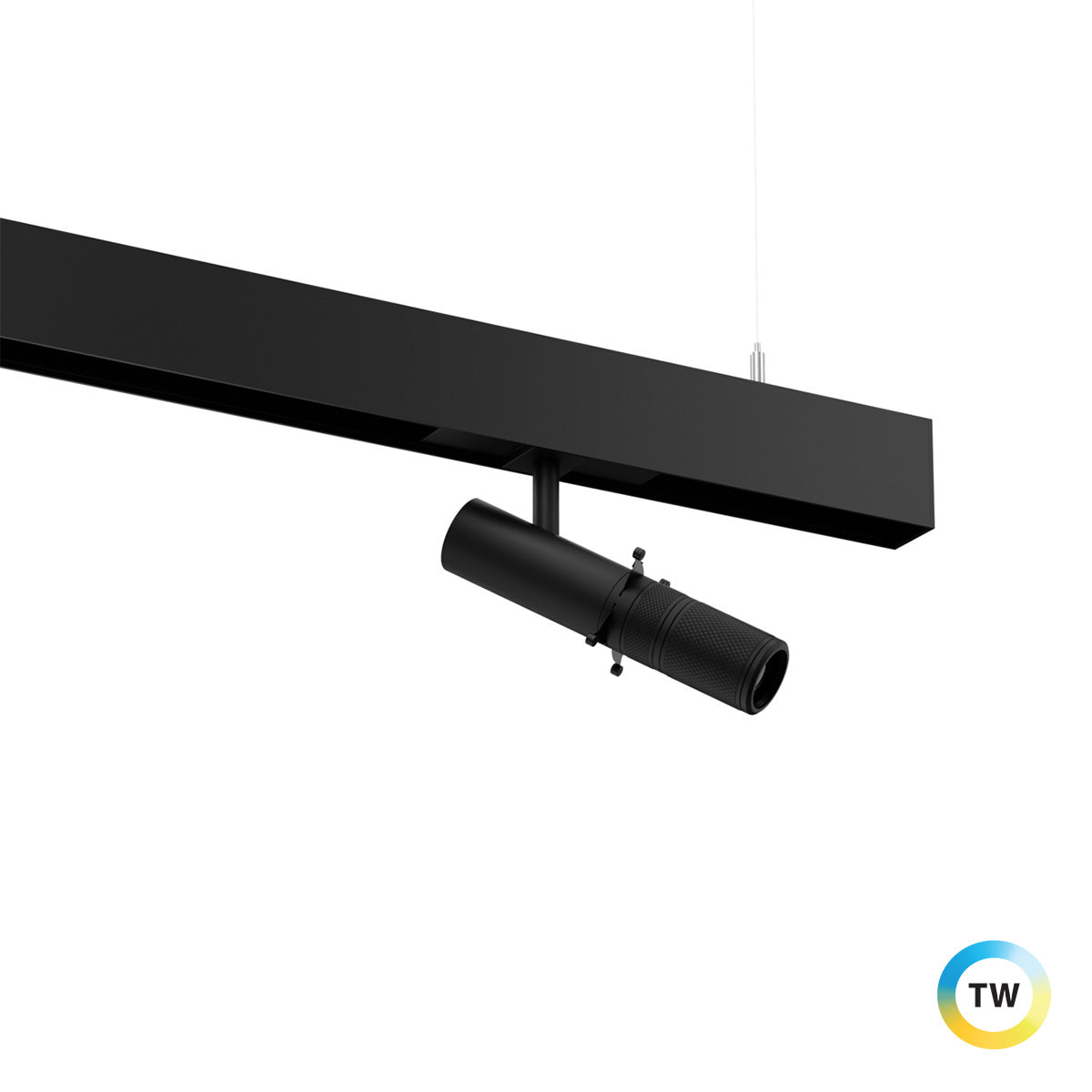

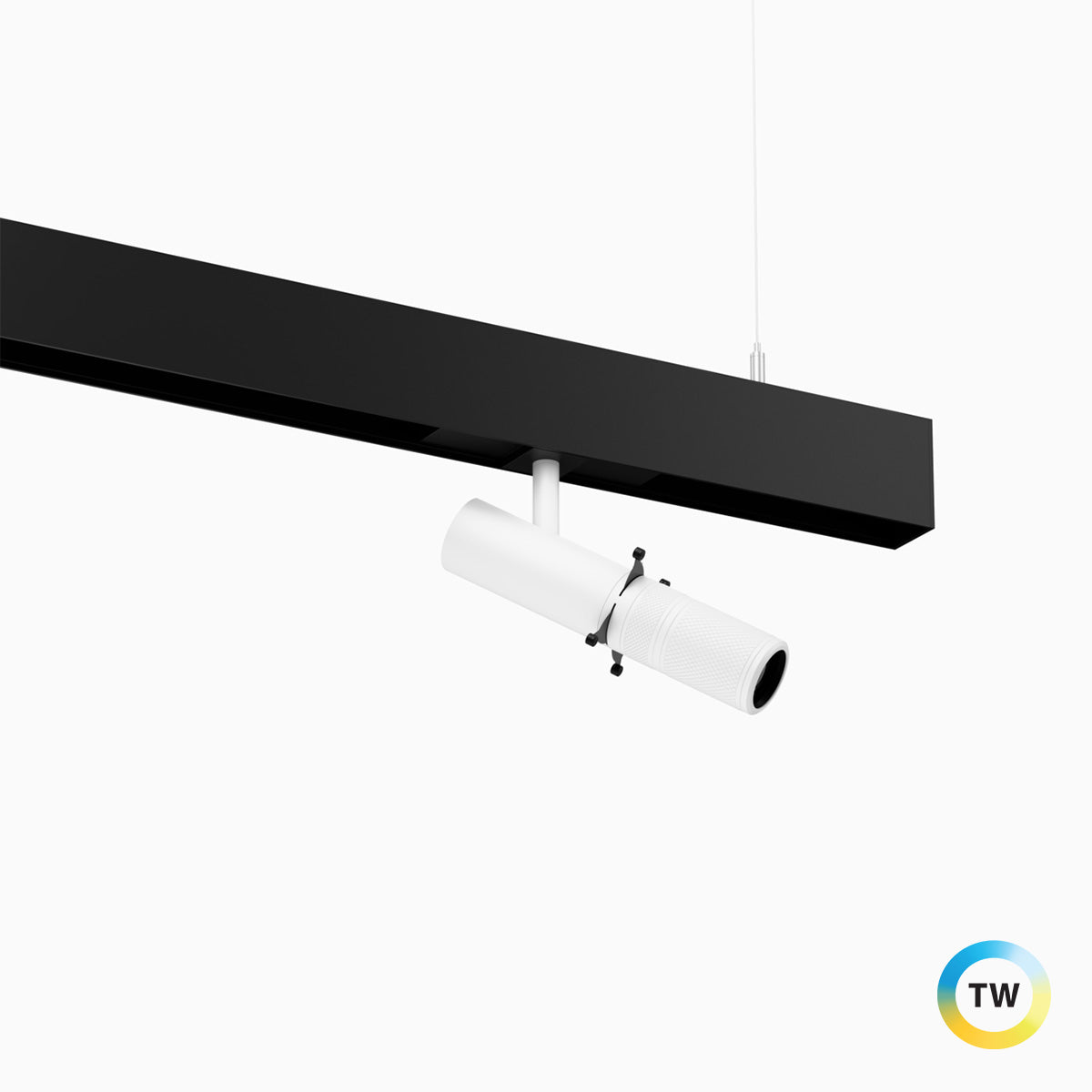

WAC VENTRIX Tunable White Large Stealth Framing Projector Adjustable Beam
Features
- Delivered Lumens: 250lm
- CBCP: 2545
- CCT: 1800-4000K
- CRI: 90
- Power: 17W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- DMX Dimming: 100-0.1%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum with optical glass lenses
- Precise, high definition zoomable projection
- Stealth armature with 360° horizontal rotation and 90° vertical aiming
- Accepts one glass or metal gobo. Custom gobo size: Outside Diameter 24.5mm, Thickness ≤ 1.5mm, Image Size ≤ 19mm
- To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
- Driver concealed within the fixture
- Can be mounted on ceiling or wall vertically or horizontally

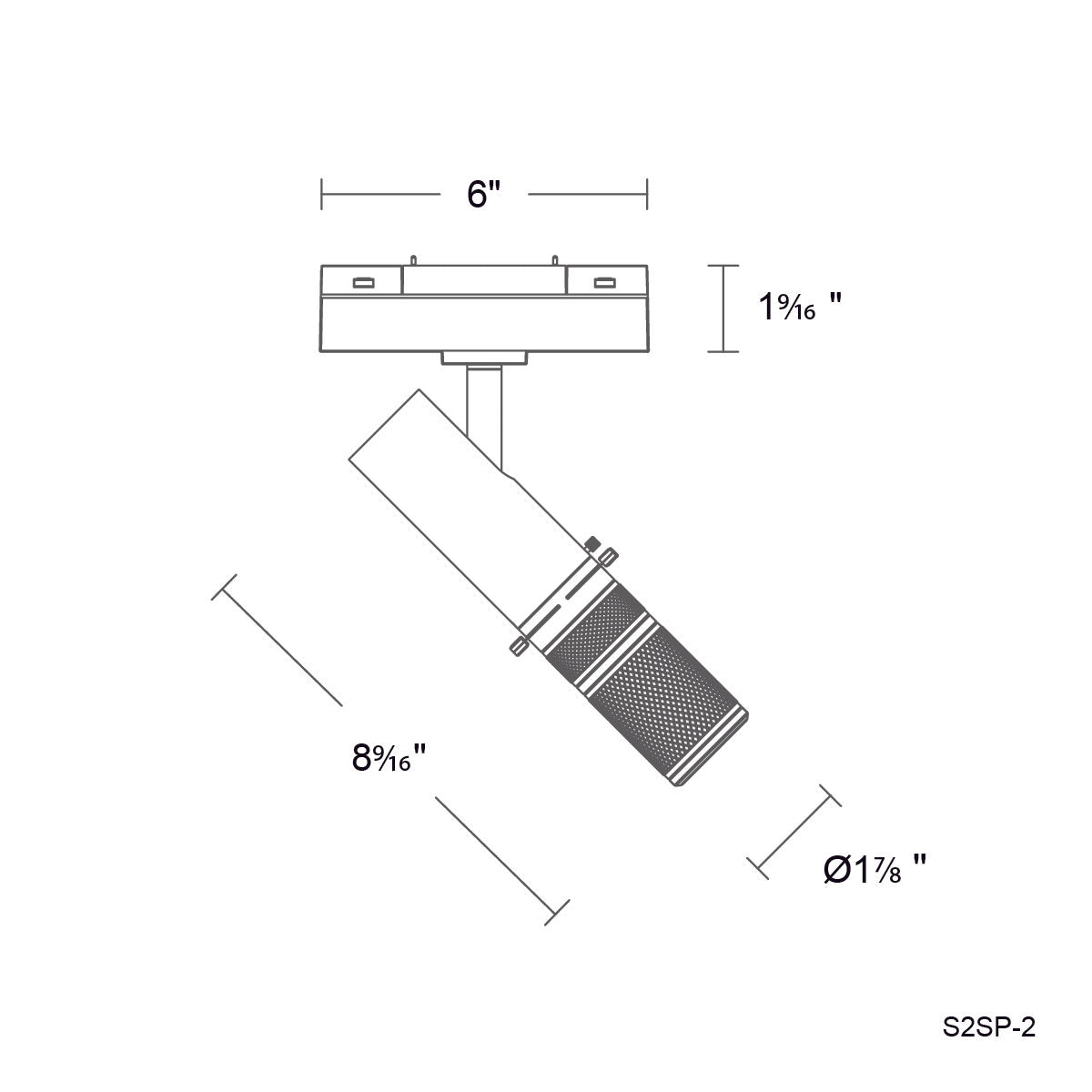

Line Drawing
