WAC Lighting Lotos LED Black Complete Kit Recessed Lighting, Each
Description
The wafer-thin Lotos R Recessed LED Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. The regressed luminaire cuts down on glare and is easier to look at from below. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos R is available as an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos R LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 4.5-inch plenum clearance.
Product Information
Electrical and Operational Information
- Bulb Shape: LED Module
- Delivered Lumens: 740
- Beam Spread: Flood
- Average Hours: 50000
Dimensions and Measurements
Warranty and Specifications
Additional Details
- Standards: ETL & cETL Wet location listed in the USA and Canada. Energy Star 2.0 Certified, Title 24 JA8-2016, Title 20, and ADA compliant.
- Additional Features:
- Accessory 1 SKU: RER-6
- Accessory 2 Type: New Construction Frame-in Kit
- Accessory 2 SKU: RER-FRAME
- Accessory 1 Type: 6ft Extension Cable
- Hardwired or Portable: Hardwired
- Smooth and continuous dimming that works with most standard LED dimmers. We recommend using an ELV or TRIAC dimmer.
- This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part RER-FRAME). 6ft extension cable (Part RER-6) is available to increase distance

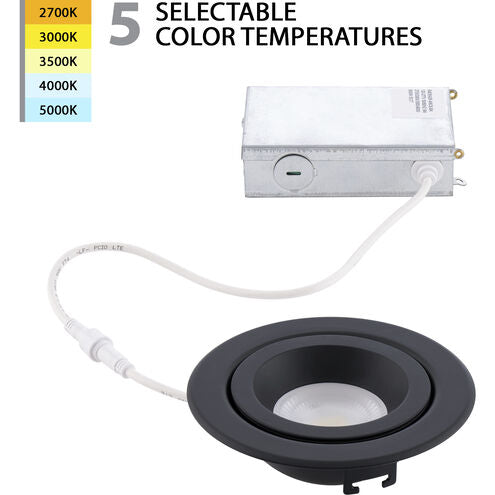

- High Powered LED's up to 733 Lumens rated at LM70 for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
- Interior/Exterior: Interior/Exterior
- A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6in low voltage plug-and-play connector that connects to the downlight.
- Mounting: Ceiling
Shade Information
