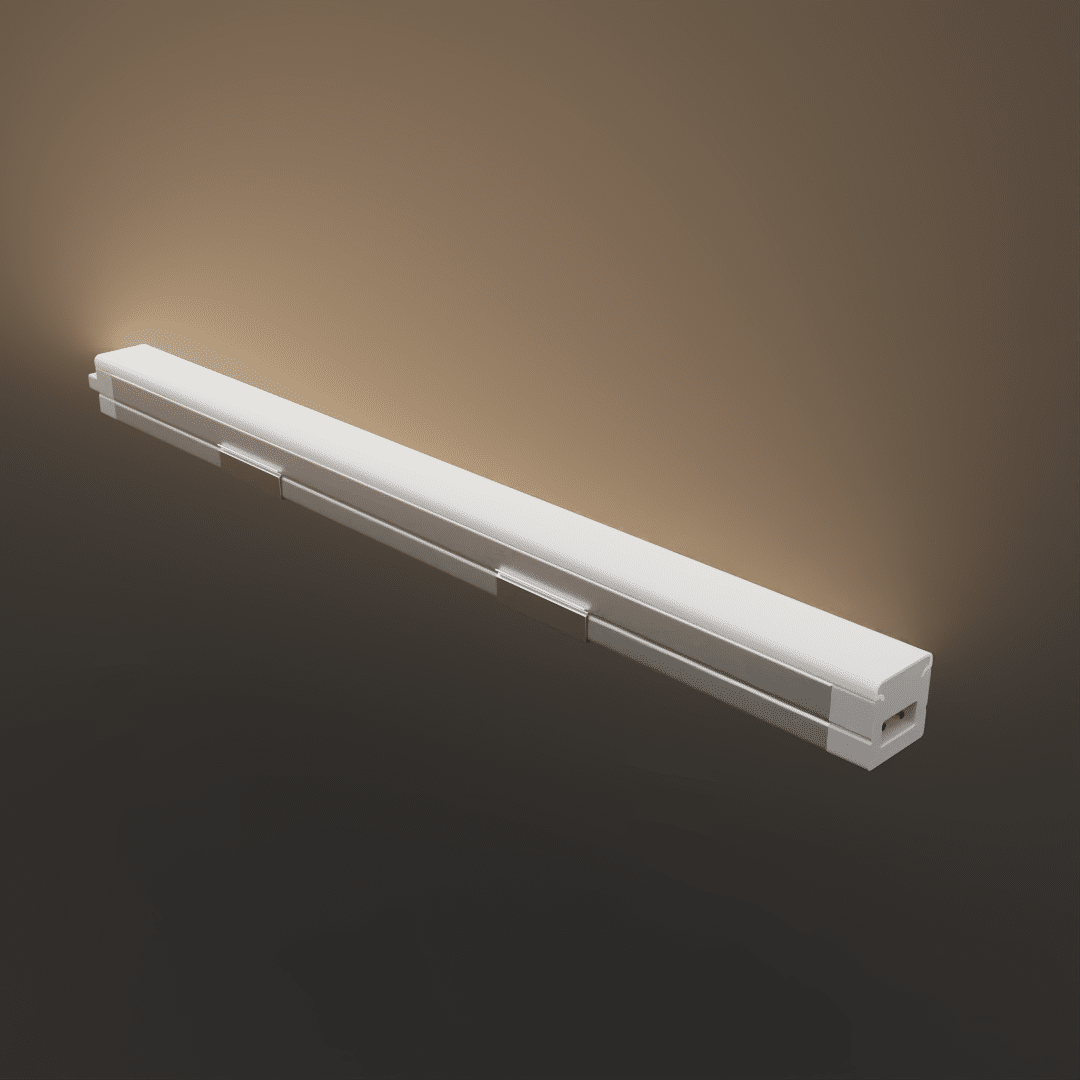

VLT Mainline Resi SL21 Linear Cove Lighting System 120V
The Mainline Resi is a high performance small profile cove and display luminaire with an integral driver. This small and discreet luminaire is ideal for under-shelf, under-cabinet, cove, and display illumination in residential applications. It combines high performance LED technology with user friendly features for quick plug and play line voltage installations.
Body
Surface mounted LED system constructed out of extruded aluminum with diffuse acrylic lens. Available in different lengths with a minimum length of 8.25" and a maximum length of 44".
Mounting / Accessories
The Mainline Resi is designed to be concealed within architectural valences for display, cove, and under-cabinet applications and provides powerful highlights. Luminaires snap together without tools for continuous row applications of up to 82' or 500 watts total. Mainline Resi ships standard with flush mounting brackets. With the use of Inter-Connect power feeds luminaires may be configured into a variety of shapes. IP 20 and UL listed for Dry / Damp Locations. See next page for additional details on accessories.
Light Source
The Mainline Resi is outfitted with high efficacy LEDs with superior color performance having high CRI (90+) and R9>90. Built-in selectable Color Temperature (SCT2) enables adjustment of the color temperature to 2700K and 3000K.
Driver
Constant Current ELV and MLV Dimmable to 1% Integral Driver.
Finish
Silver anodized aluminum finish.
Applications
An ideal solution for under-shelf, under cabinet, cove, and display showcase illumination in residential applications.
Features:
• Small Profile 0.79"[20mm] x 0.79"[20mm]
• 120V Integral Driver (ELV and MLV Dimming to 1%)
• Field Selectable CCT (2700K, 3000K)
• Simple Snap-Together Installation
• Easily Create Curved Configurations
• 90+ CRI, R9 of 90
• 500 lms / ft
• 6W per ft
• Magnetic Mounting Included
