The 064-400s & 064-600s Series CAT6A UTP CMR cable is a high-performance, riser-rated Ethernet cable designed for 10 Gigabit network applications. Featuring solid bare copper conductors and unshielded twisted pair (U/UTP) construction, this cable exceeds ANSI/TIA-568-C.2 and ISO/IEC 11801 performance standards. Ideal for high-speed data transmission in commercial riser spaces, it is ETL-listed, PoE Type 4 compliant, and RoHS compliant. Here’s why professionals trust it:
Description

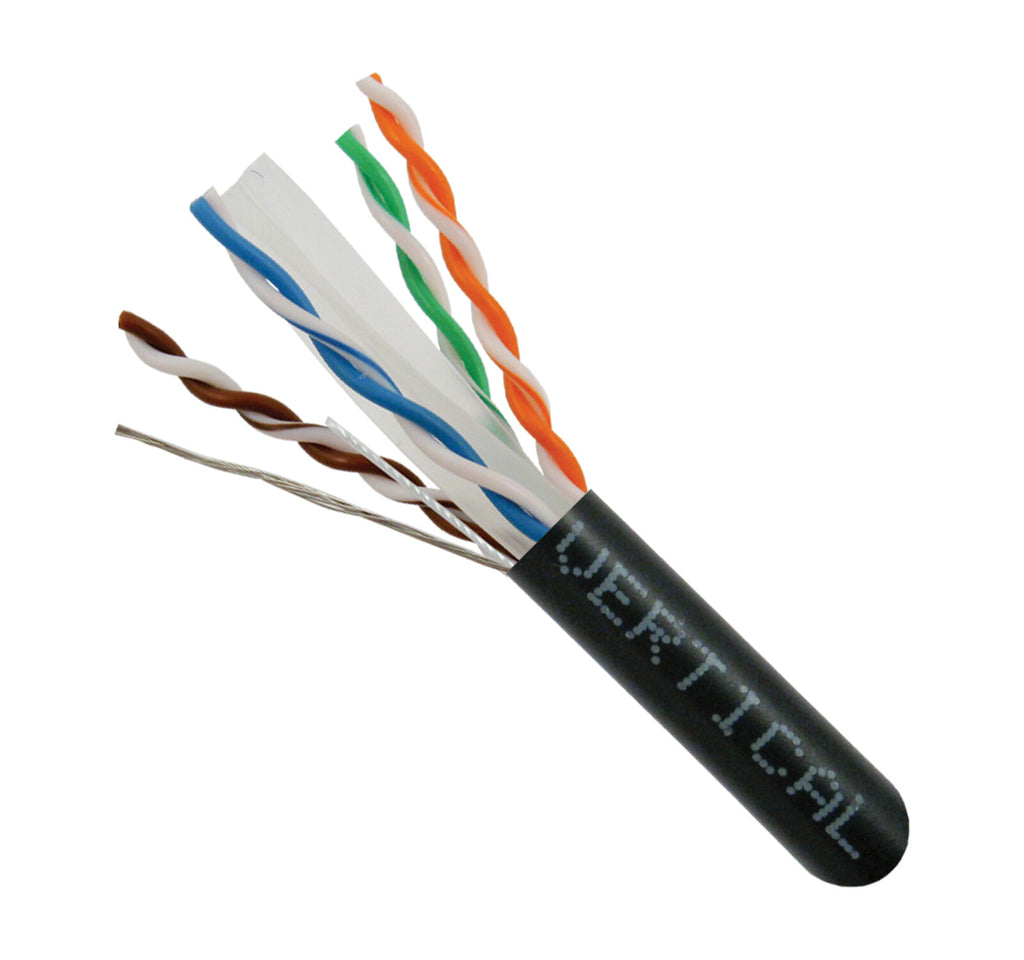

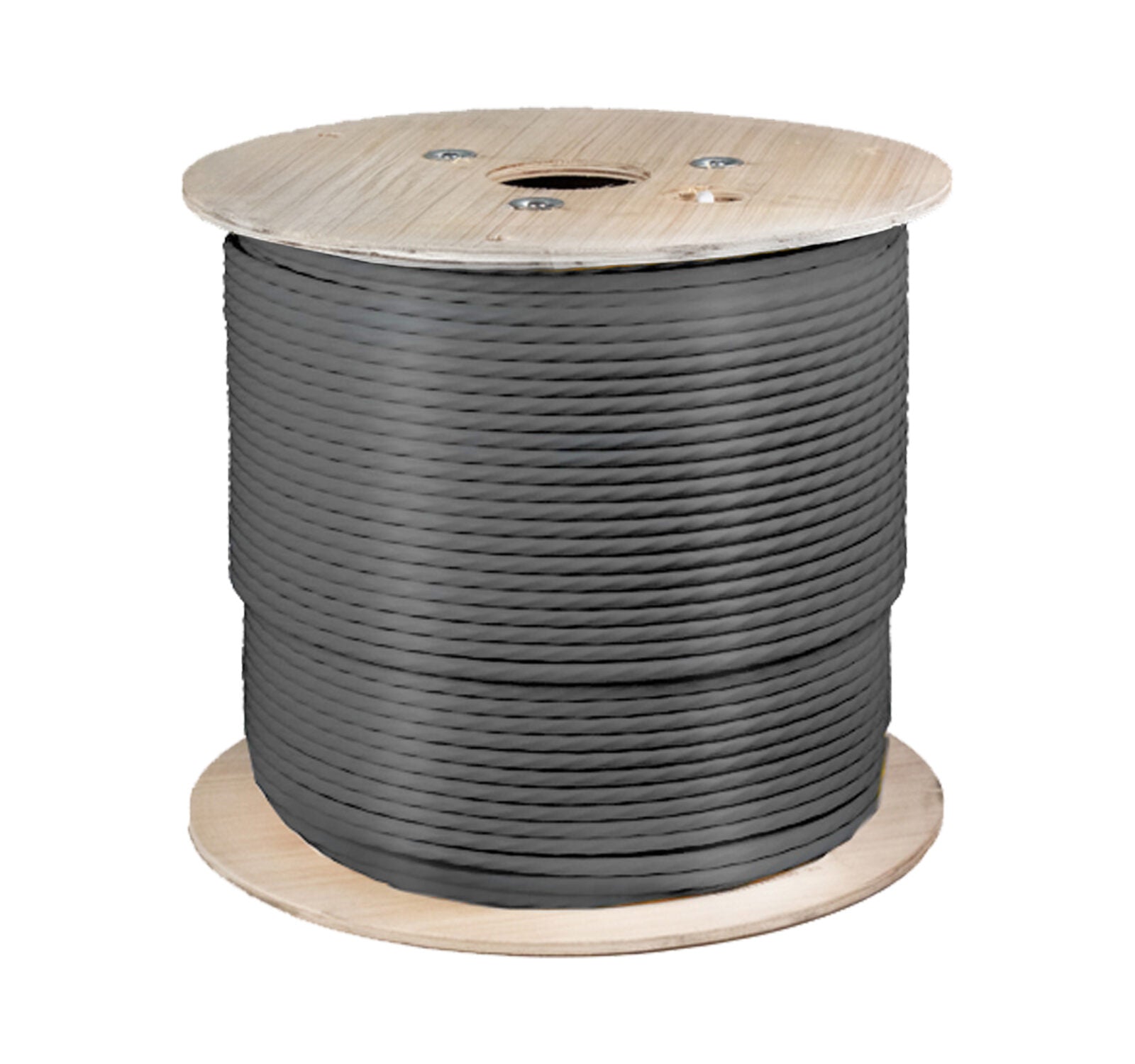

Vertical CAT6A U/UTP CMR (Riser-Rated) 23 AWG Solid Bare Copper, Wooden Spool, 1000 ft

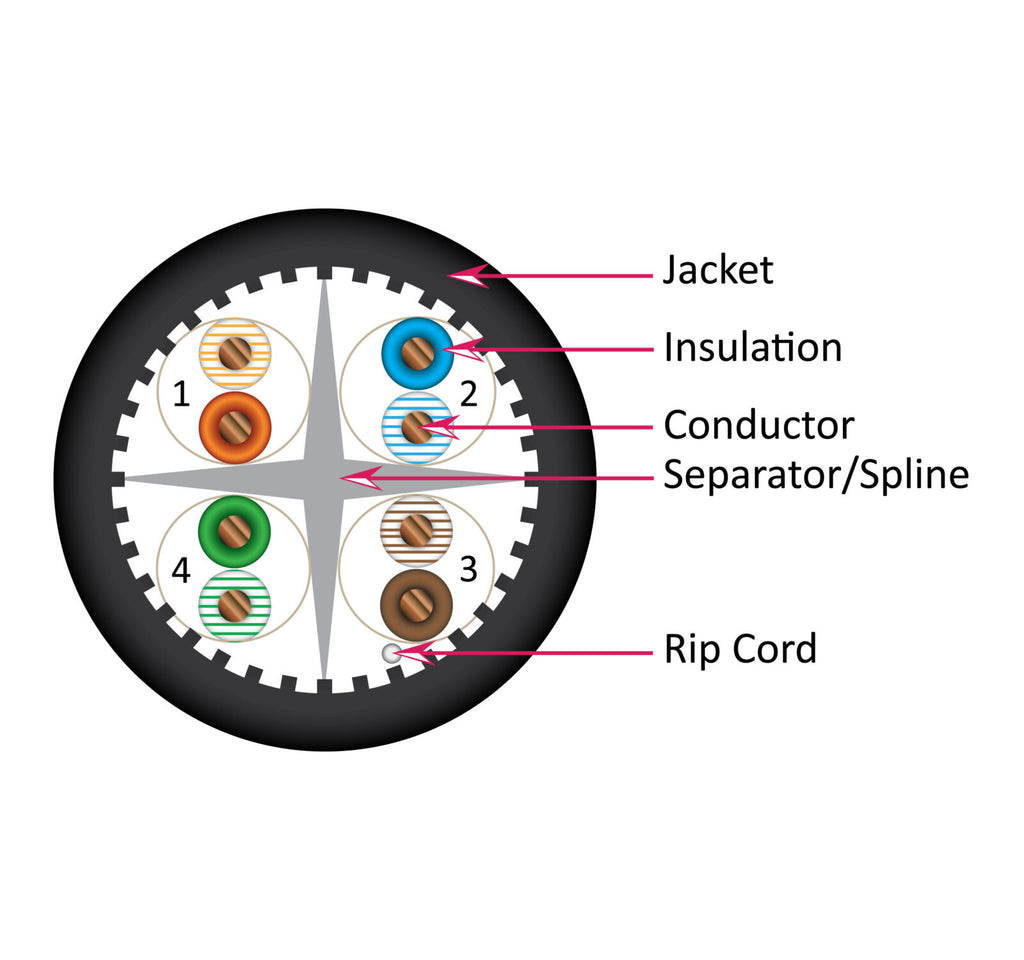

This high-performance CAT6A data communications cable supports 10Gb high-speed applications and is designed for indoor riser installations. It features 4-pair unshielded twisted pairs with easily identifiable color stripes, 23 AWG solid copper conductors, and offers excellent attenuation and crosstalk characteristics per ANSI/TIA-568.2-D standards.
KEY FEATURES
- 23 AWG Solid Bare Copper: Ensures maximum conductivity and performance.
- Unshielded Twisted Pair Design: Delivers reliable signal integrity without shielding bulk.
- Riser-Rated (CMR): Certified for vertical runs between floors in commercial buildings.
- PoE Type 4 Ready: Supports high-power PoE applications (IEEE 802.3bt compliant).
- 10 Gb Speed Support: Built for high-bandwidth networks and long-term infrastructure upgrades.
- High-Visibility Jacket & Conductor Colors: Simplifies identification and installation.
- ETL-Listed & RoHS Compliant: Third-party tested for safety and environmental standards.
- Available on Wooden Spool: 1000 ft packaging for large-scale installations.
- Temperature Rated: Operates in environments from −20 °C to +75 °C.
APPLICATIONS
The 064-400s & 064-600s Series is designed for performance-critical environments where bandwidth, fire safety, and long runs between floors are required. Ideal for:
- Commercial Office Networking
- Data Centers and Server Rooms
- VoIP and Video over IP Systems
- Riser Pathways Between Floors
- Enterprise-Grade Structured Cabling
WHY CHOOSE THE 064-400s & 064-600s SERIES CAT6A UTP CMR?
When performance, compliance, and scalability matter, this cable series provides exceptional value and peace of mind:
- Certified High-Speed Performance: Exceeds Cat6A specs for 10 Gigabit transmission.
- Riser-Safe & Flame-Tested: Meets CMR standards for vertical runs in multi-floor buildings.
- PoE Ready: Handles higher wattage PoE devices with ease and reliability.
- Color Variety: Available in multiple jacket colors for better cable organization.
- Engineered for Longevity: Rugged PVC jacket and durable internal construction for long service life.
WHAT’S NEXT?
After installing your CAT6A UTP CMR cable:
- Terminate with CAT6A Jacks – Maintain performance with shielded or unshielded keystone jacks.
- Add Patch Panels & Patch Cords – Build out a complete end-to-end solution.
- Label and Document – Simplify future maintenance with clear labeling and cable mapping.
