Description
Product Details
210-222/P/WH

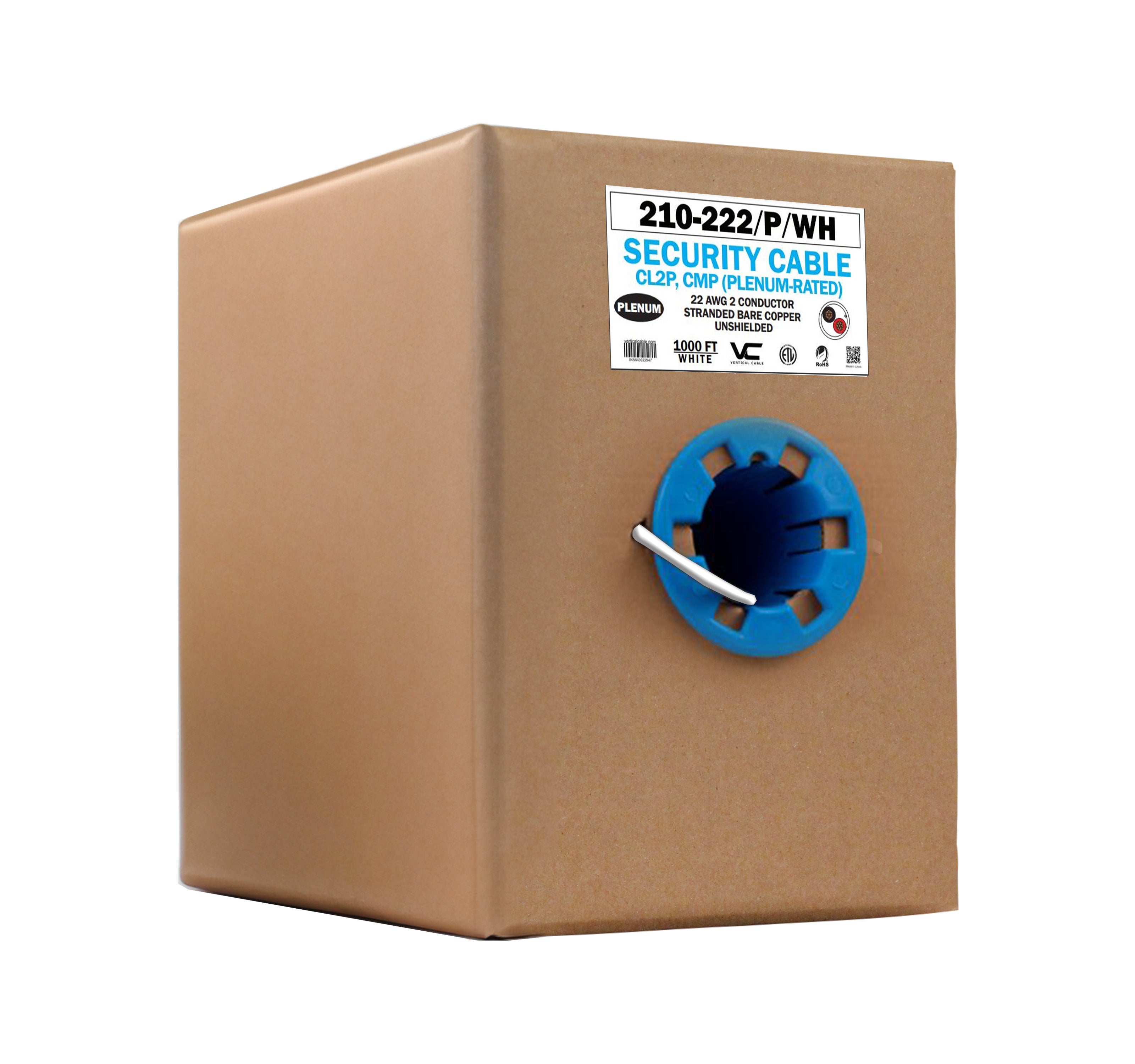

The 210-222/P/WH is a 22 AWG, 2-conductor stranded security cable with a plenum-rated jacket. It is ideal for alarm and low-voltage systems. The cable has a 1000 ft. pull box in white.
Features
The 210-222/P/WH Alarm-Security Cable is a plenum-rated, 2-conductor solution for low-voltage signal transmission in commercial and residential environments. This 22 AWG cable is optimized for security, intercom, and control systems where fire safety and reliable performance are critical.
- 22 AWG, 2-Conductor Stranded Bare Copper: Offers flexibility and consistent signal performance in alarm and communication systems.
- Plenum Rated (CMP): Flame-retardant jacket meets NEC requirements for installation in air-handling spaces.
- PVC Insulation and Jacket: Durable white outer jacket and red/black insulation for identification and protection.
- Unshielded, Round Cable Design: Streamlined installation in areas where shielding is unnecessary.
- Rip Cord Included: Allows for quick, clean jacket removal during installation.
- Temperature Rating: Operates from -20ºC to +75ºC, ensuring reliable performance in various environments.
- Voltage Rating: Rated for up to 300V RMS.
- 1000 ft Pull Box: Convenient packaging keeps cable tangle-free and installation-ready.
- Certifications: ETL listed, RoHS compliant, FT6 flame-rated, CL3P.
