210-226/P/WH
The 210-226/P/WH Alarm-Security Cable is a plenum-rated, 6-conductor solution ideal for secure and compliant low-voltage installations. Designed with flexibility and durability in mind, this 22 AWG stranded cable meets fire safety codes while delivering reliable signal and power transmission performance.
Features

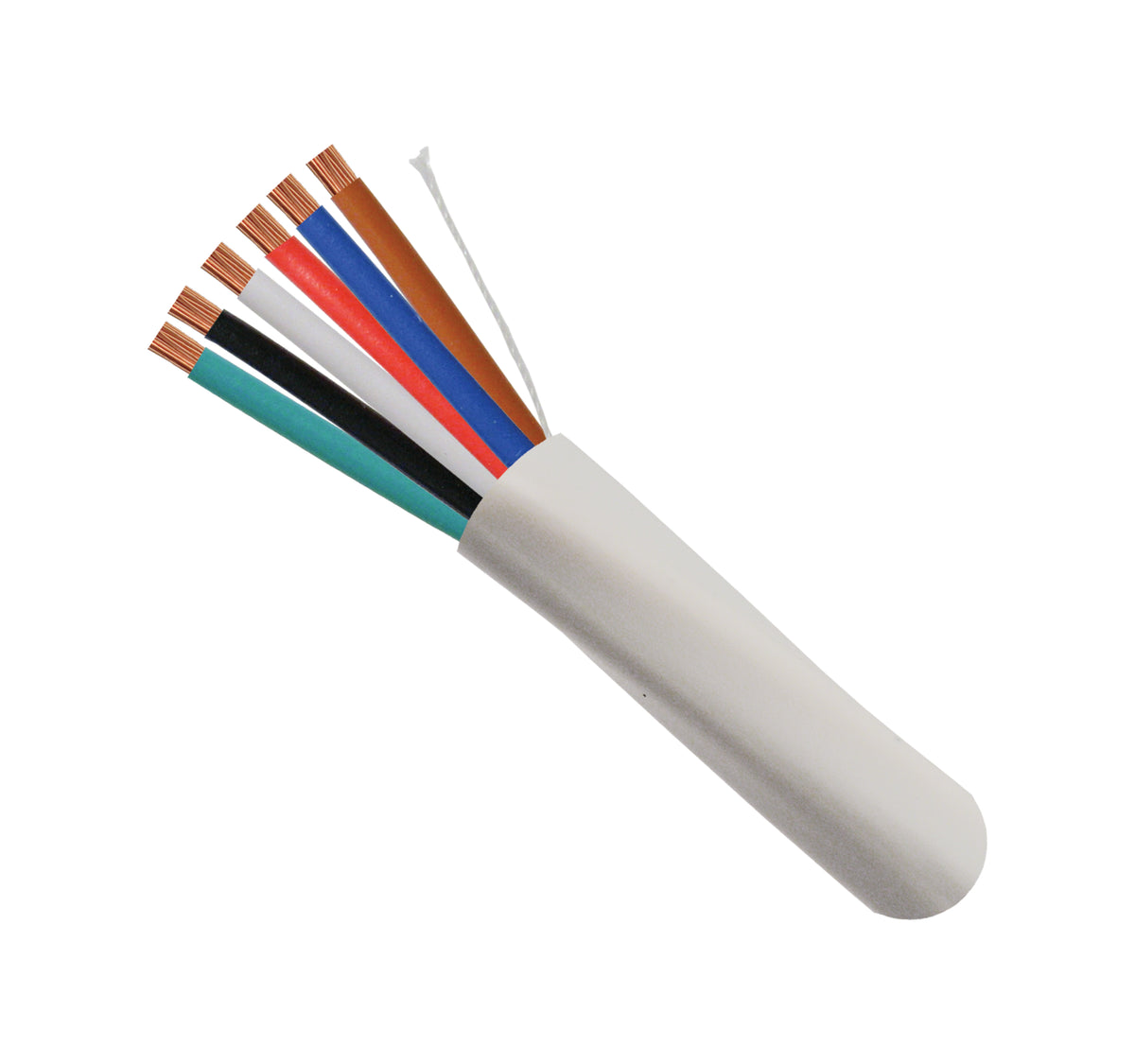

- 22 AWG 6-Conductor Stranded Bare Copper: Provides strong signal integrity and flexibility for tight installation spaces.
- Plenum-Rated (CL3P/CMP): Meets NFPA 70 and NFPA 262 flame test standards for use in air-handling spaces.

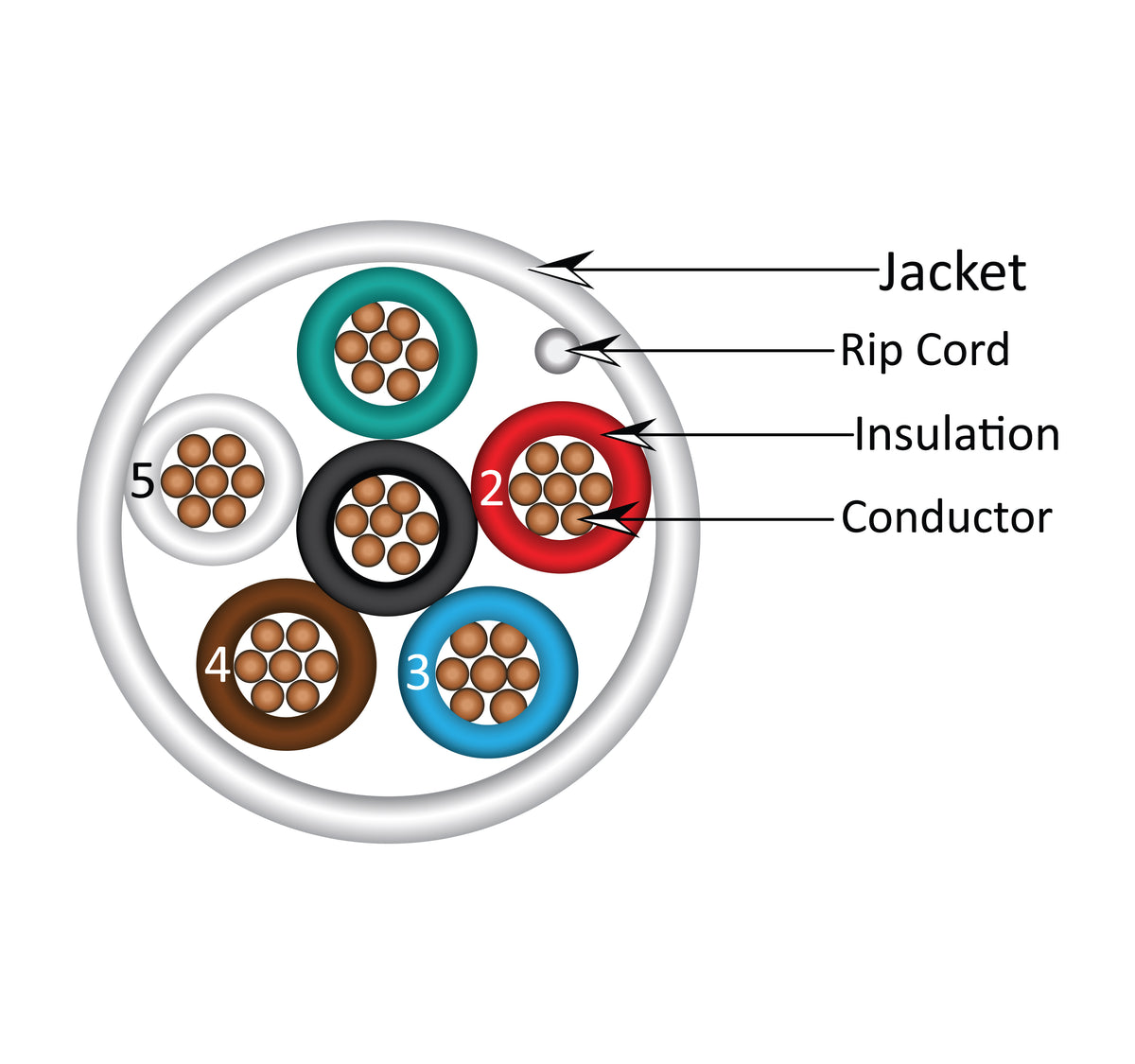

- Unshielded Round Construction: Simplifies installation in low-interference environments.
- PVC Insulation and Jacket: Durable and flame-retardant with color-coded conductors (Green, Red, Blue, Brown, White, Black).
- Rip Cord Included: Facilitates fast and easy jacket stripping.
- Performance Rated: 300V RMS, 75°C temperature rating, 22 pF/ft capacitance, and 84 ohm impedance.

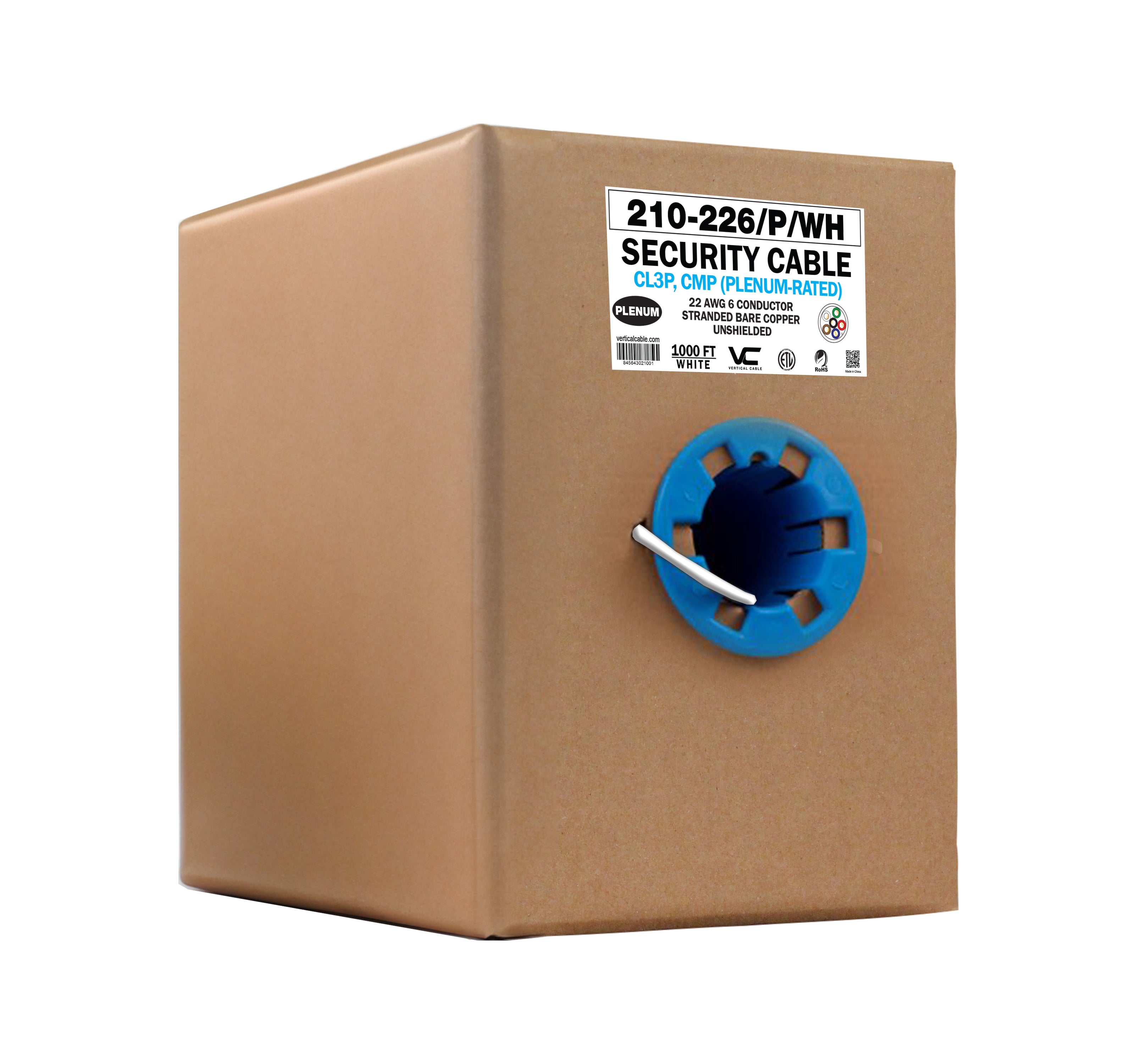

- Convenient 1000 ft Pull Box: Keeps cable organized and ready for long runs.
