Description
SKU: 209-2315, 209-2315/BK, 16/4, 16-2, 162
Conductor count: 2
Shape: Round
Rip cord: Yes

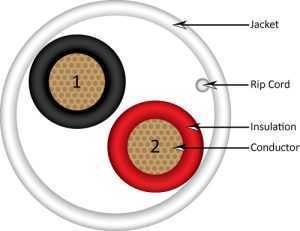

CONDUCTORS
Material: Stranded bare copper
Trade size: 16 AWG
Stranding: 65/0.16 mm
Insulation material: Polyvinyl Chloride (PVC)
Insulation O.D.: 0.08 in. (2.10 mm)
Insulation color: Red, Black
JACKET
Material: Polyvinyl Chloride (PVC)
Thickness: 0.02 in. (0.50 mm)
O.D.: 0.20 in. (5.10 mm)
Marking: VERTICAL 5024318 c(ETL)us AUDIO CABLE
16AWG 2 COND 65 STRANDED OXYGEN
FREE CMR FT4 CL3R RoHS 500FT
100804N0815106 17:57
MECHANICAL
Temperature rating: 75º C
Aging Condition (ºCxhrs): 100x168
Tensile Strength (Mpa)
Before: ≥13.8
After: ≥85% of unaged
Aging Elongation (%):
Before: ≥100
After: ≥50% of unaged
Cold Bend
(-20±2º Cx4hrs): No Crack
SAFETY
NFPA 70 (NEC®) rating: CMR/CL3
Voltage rating: 300 V RMS
PACKED WEIGHT
209-2315/BK: 15 lb
