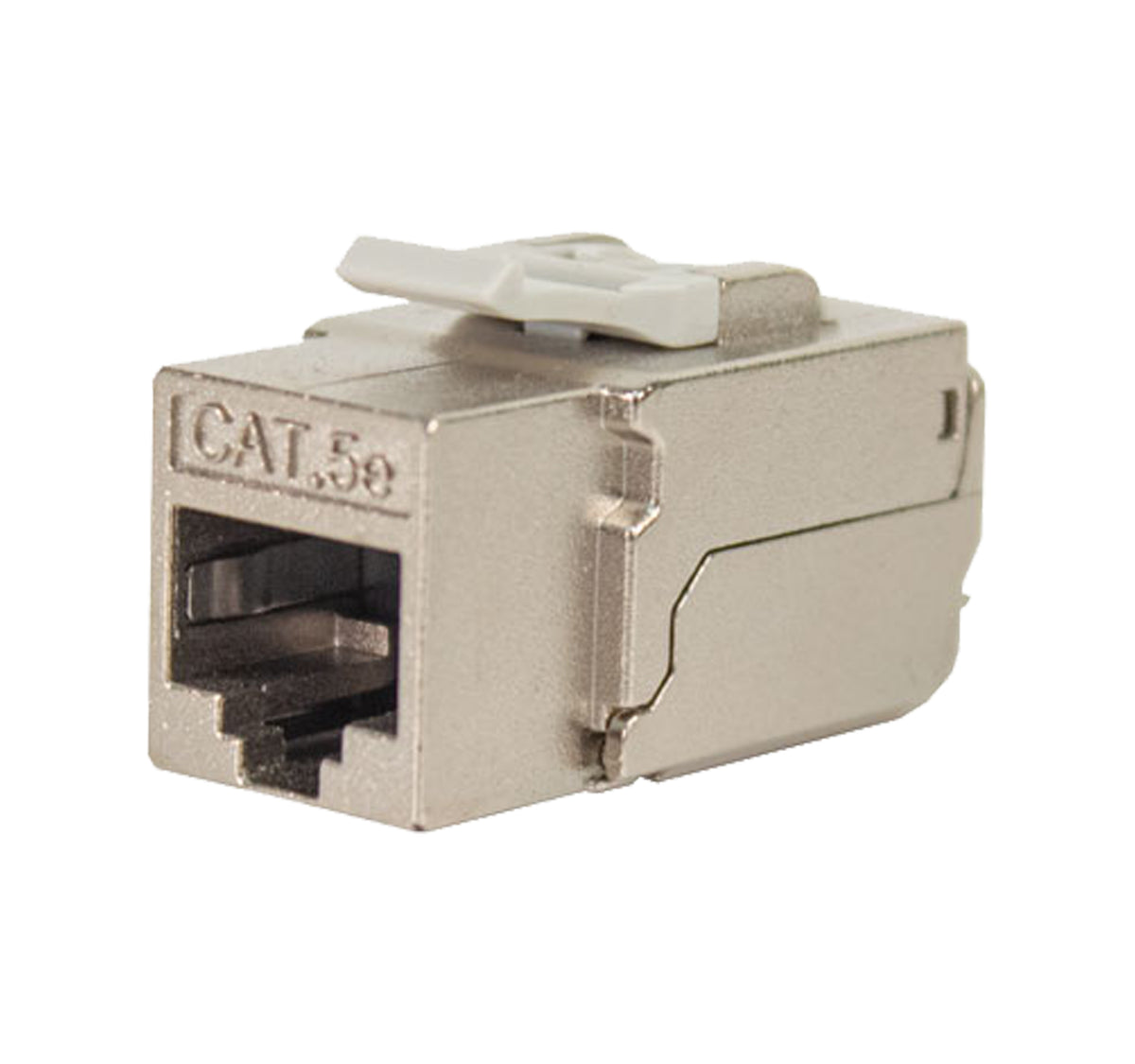

Vertical 301-J2630/S CAT5E Shielded Data Grade Keystone Jack 360° Degree 8×8 Conductors
Product Details
The 301-J2630/S CAT5E Shielded Jack provides reliable connectivity in environments requiring strong EMI protection. Built with a 360° shielding structure and durable construction, this jack supports fast, secure terminations for voice and data applications.
Features

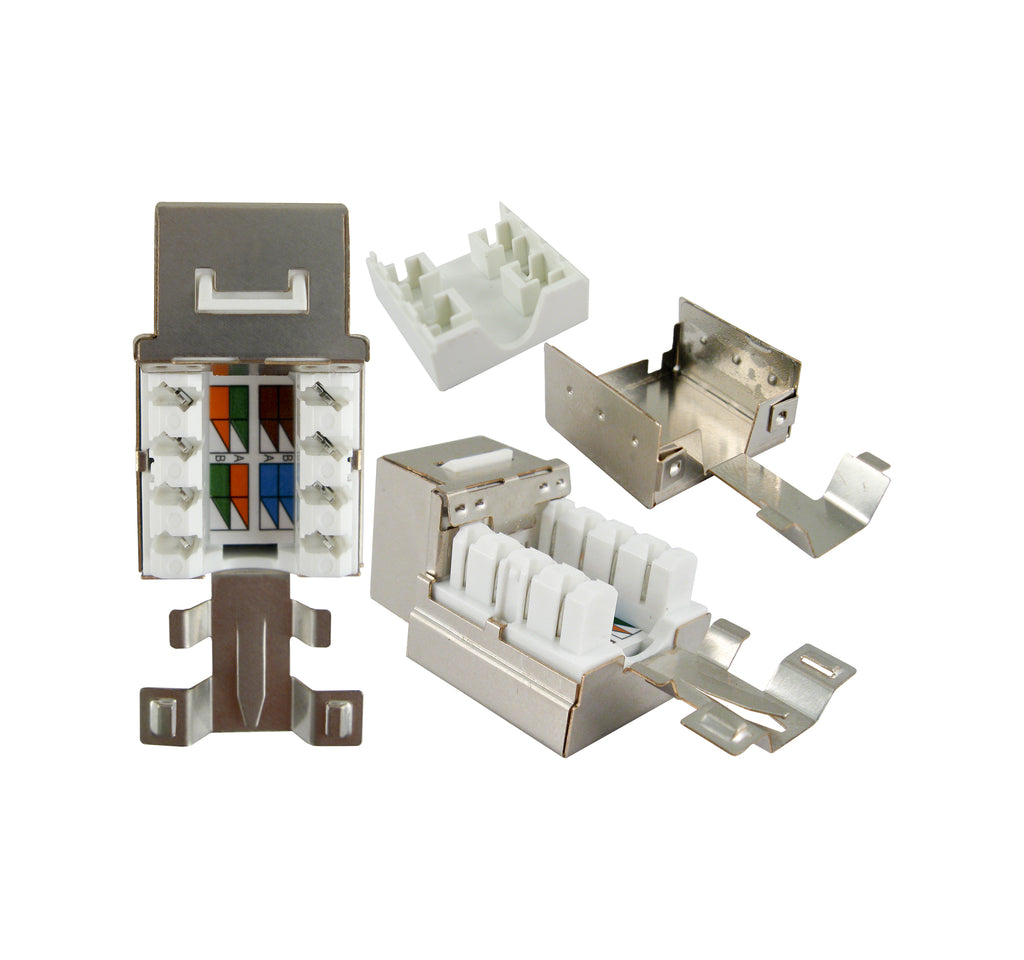

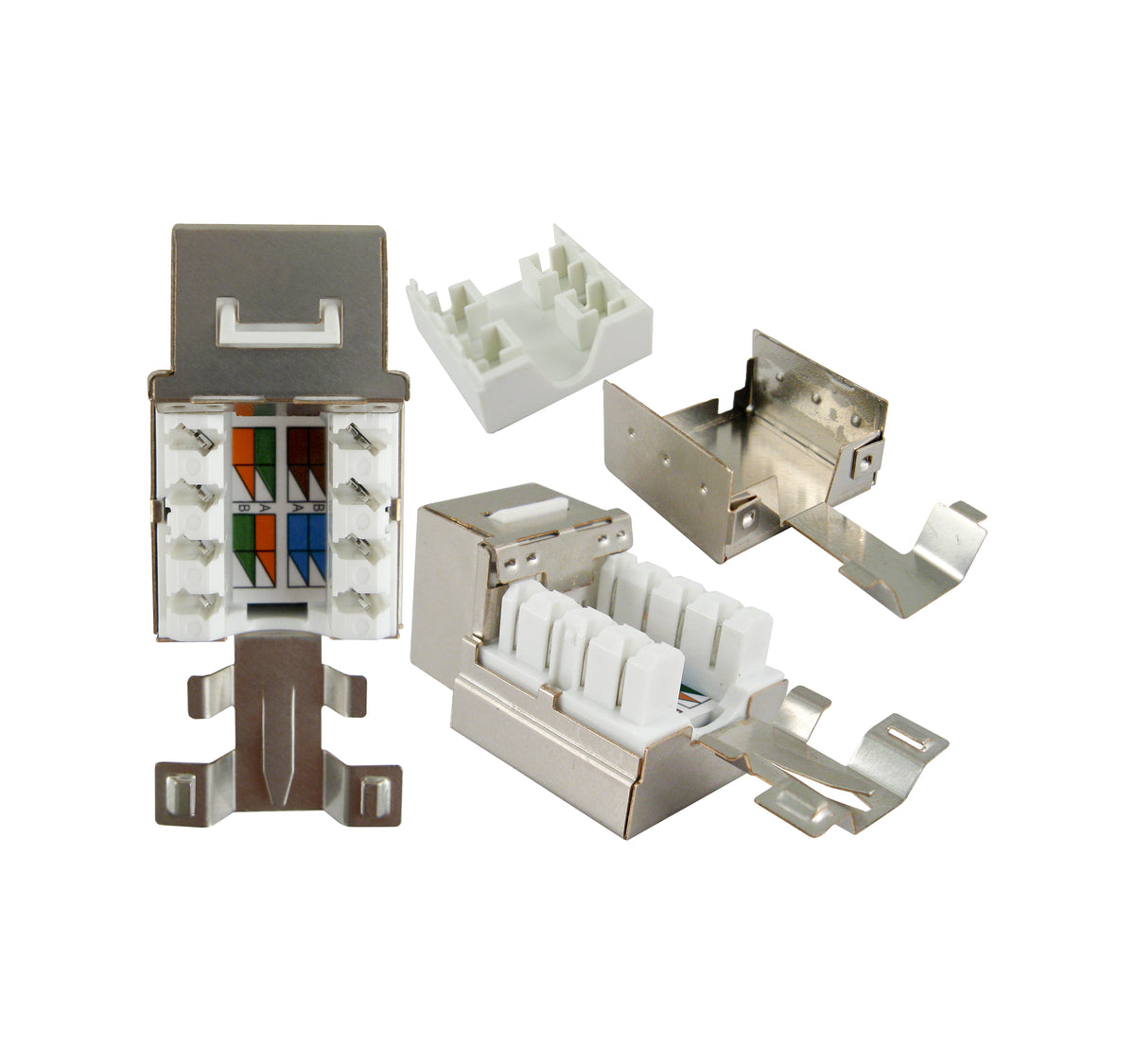

- 360° Shielding: Nickel-plated shielding prevents EMI/RFI for stable, high-quality signal transmission.
- Standards Compliant: Meets ANSI/TIA-568-C.2, ISO/IEC 11801, EN50173-1, and EIA/TIA 568A/B specifications.
- 110-IDC Termination: Compatible with 23–26 AWG solid wire for clean and secure punch-down terminations.
- Color-Coded Wiring Scheme: Supports both T568A and T568B wiring standards.
- Durable Materials: ABS housing with gold-plated contacts ensures reliable conductivity and long product life.
- Extended Lifecycle: Supports a minimum of 250 re-terminations and 750 insertions for lasting performance.
- ETL Listed & RoHS Compliant: Certified for commercial-grade structured cabling systems.
Applications
The 301-J2630/S Shielded Jack is ideal for environments requiring enhanced signal protection and dependable data transmission. Use it in:
- Commercial and Industrial Network Installations
- Server and Telecom Rooms
- Structured Cabling for Voice/Data Systems
- Environments Prone to EMI (e.g., hospitals, manufacturing, data centers)
- Secure LAN Connections in Shielded Patch Panels and Faceplates
RECOMMENDED TOOLS FOR CAT5E SHIELDED KEYSTONE JACKS
For a seamless installation, we recommend using the following I-Punch Down Tools for quick and precise terminations:
- 078-1025 – Compact and efficient for quick punch-downs.
- 078-2155/S – Heavy-duty tool for professional-grade terminations.
WHY CHOOSE THE 301-J2630/S CAT5E SHIELDED JACK?
Designed for durability and performance, this jack ensures stable network connections in shielded applications:
- EMI Protection: 360° shielding delivers clean signal integrity in noisy environments.
- High-Density Compatibility: Fits standard keystone panels, faceplates, and surface mount boxes.
- Consistent Contact Quality: Gold and nickel-plated contacts minimize resistance and corrosion.
- Field-Tested Reliability: Engineered for frequent terminations without degradation.
- Universal Fit: Works with most structured cabling components for seamless integration.
WHAT’S NEXT?
After installing your 301-J2630/S Shielded Keystone Jack:
- Pair with Shielded Patch Panels – Maximize EMI protection across your infrastructure.
- Label and Test Your Terminations – Ensure accurate setup and future serviceability.
- Add Matching Faceplates or Boxes – Complete your installation with a clean, professional finish.
