Description
Vanco 280535 Analog Audio Cat5E/Cat6 Cable Extender

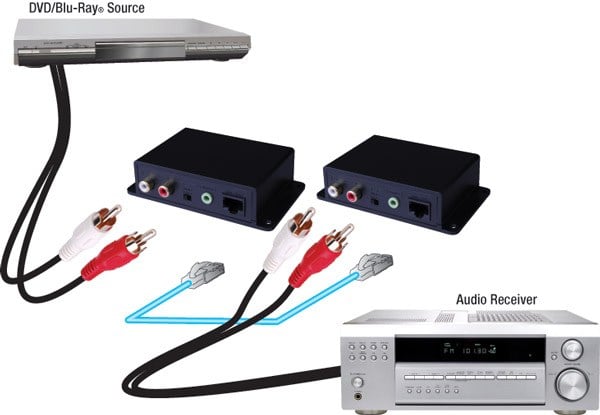

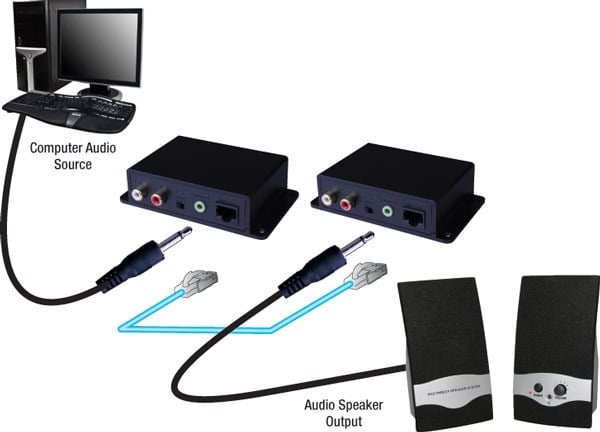

Application: Allows analog audio signals to be transmitted using a single Cat5e or Cat6 cable
- Transmission Range: Up to 600 meters (1968 ft)
- Dip switch allows for choice between stereo audio or mini stereo audio
- Audio Input: Dual gold-plated RCA female jacks or 3.5mm stereo jack
- Output: RJ45
- High performance eliminates audio ground loop issues
- Passive- no power required
- 20Hz to 20KHz (-3db) Bandwidth
- Dimensions: 4.25″ W x 1″ H x 2.8″ D
Package Contents:
280535 (TX & RX)
Product Manual
