Description
Product Details

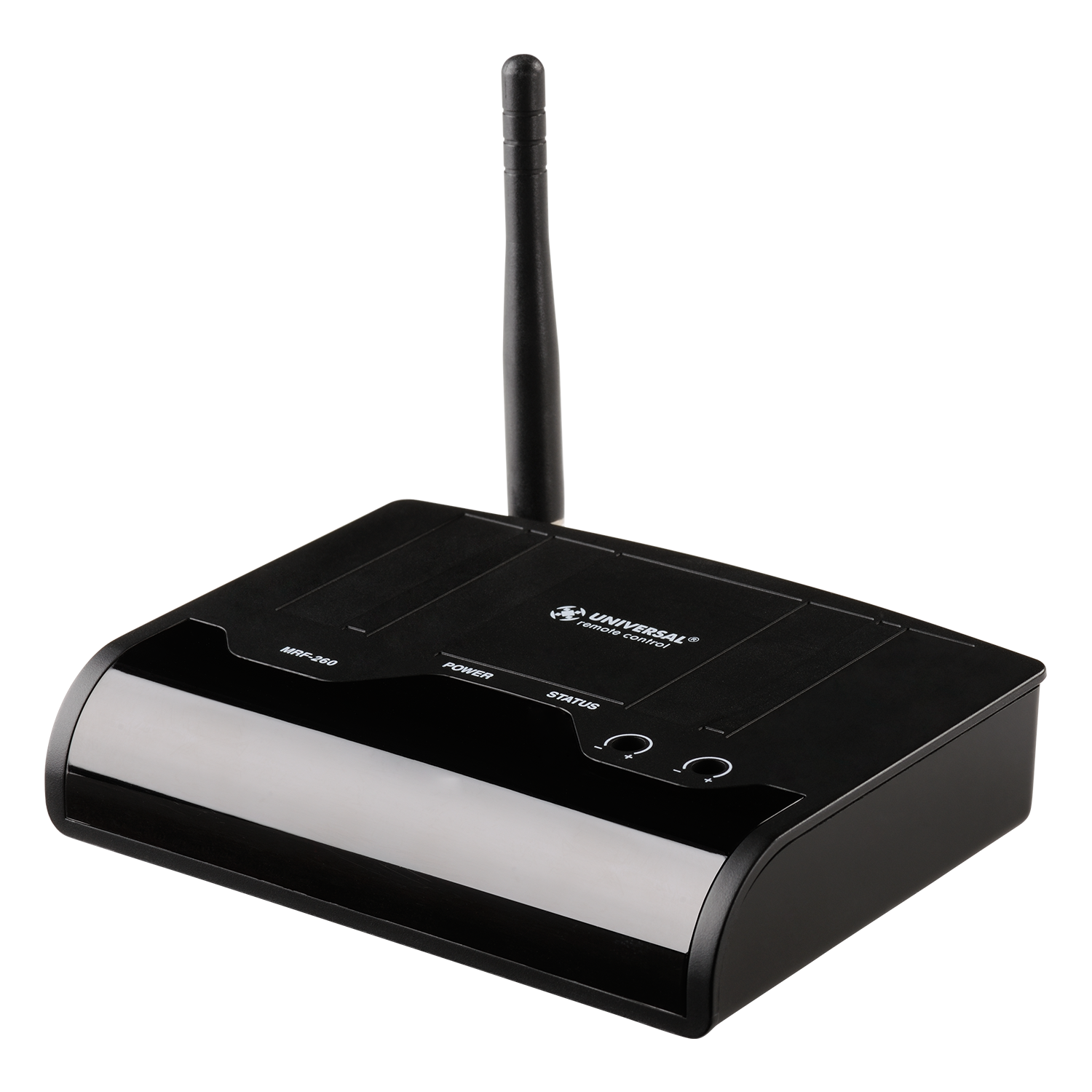

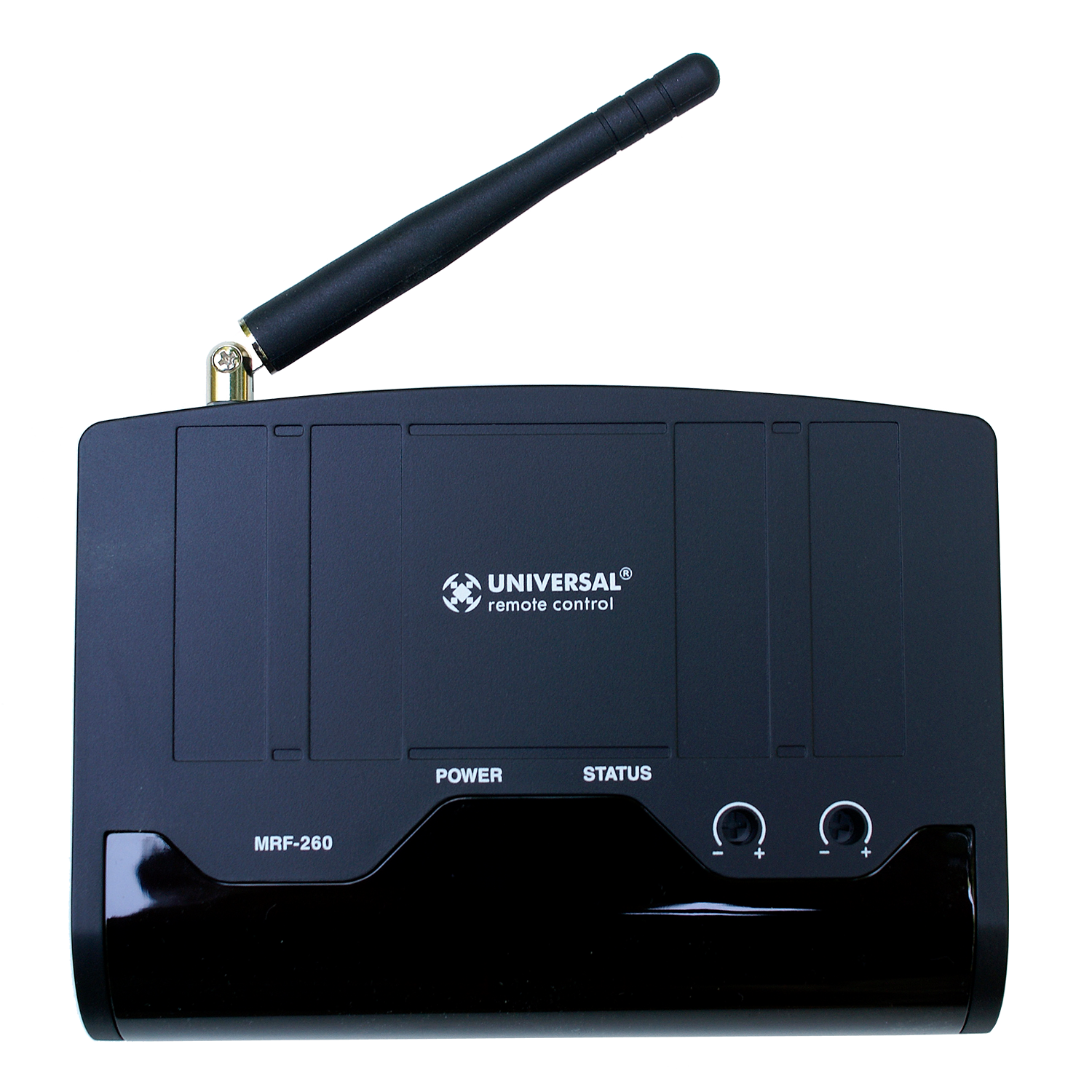

MRF-260 base station receives RF (Radio Frequency) signals from any remote in URC's Complete Control® line of Universal Remotes, converts the RF signal into IR (Infrared) commands and delivers the commands to the integrated A/V components. It uses Narrow Band RF to assure the continuity of the commands and minimize the effect of RFI (Radio Frequency Interference) that often occurs in highly-populated markets. Required for use with URC's Complete Control line up of universal remotes.
Features
- RF to IR base station for URC Complete Control® Universal Remotes
- Receives RF signal from remote and converts to IR
- 4 Adjustable IR inputs
- Delivers IR commands to A/V Components
- Uses Narrow Band RF
- Minimizes RFI effects in highly-populated markets
- Professional programming by authorized URC Complete Control® dealer required
Specifications
| SKU: MRF-260 |
| UPC: UPC 656787-300408 |
| Network Connections |
| RF: 418 MHz |
| Four Adjustable IR outputs, built-in front IR blaster |
| Integrated Antenna |
| 9V 300mA power supply |
| Compatible Systems: URC Complete Control® |
| Dimensions: 8" (203.2mm) W x 1.25" (31.8mm) H x 3.5" (88.9mm) D |
| Weight: 1 lbs. (0.45 kg) |
| Warranty: One year limited warranty |
What's in the Box:
| MRF-260 base station |
| Flashers |
| Self-adhesive pads |
| connecting cables |
| power supply |
| adjustment tool |
| mounting hardware |
