Description
Ubiquiti UXG-Max Gateway Max
Product Details
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
Specifications
Overview
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Max. WAN Port Count: 4
Default WAN Ports: (1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45
5 (2.5G/1G/100M/10M)
IDS/IPS Throughput: 2.3 Gbps
Form Factor: Compact desktop
Stateful Firewall: ✓
Application-Aware Layer 7 Firewall: ✓
DPI & Traffic Identification: ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
Content Filtering: ✓
Intrusion Prevention (IPS/IDS): ✓
Ad Blocking: ✓
IDS/IPS Signatures: 55,000+ With CyberSecure
License-Free SD-WAN: ✓
Site-to-Site VPN
Site Magic: ✓
IPsec: ✓
OpenVPN: ✓
VPN Server
Teleport Zero-Configuration VPN: ✓
WireGuard: ✓
OpenVPN: ✓
L2TP: ✓
VPN Client
OpenVPN: ✓
WireGuard: ✓
Multi-WAN Load Balancing: ✓
Dynamic Routing
OSPF: ✓
Advanced QoS: ✓
Multicast DNS (mDNS): ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
Integrated RADIUS Server: ✓
RADIUS over TLS (RadSec): ✓
Additional Internet Failover with UniFi LTE Backup: ✓
Internet Quality and Outage Reporting: ✓
MAC Address Table Size: 2,000
Max. Power Consumption: 9.6W
Power Method: USB type C (5V DC/3A)
Power Supply: USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range: 100—240V AC
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 2 GB
Weight: 520 g (1.1 lb)
Enclosure Material: Polycarbonate
Management: Ethernet Bluetooth
LEDs
Ethernet: ✓
System: ✓
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC
Application Requirements
UniFi Network: Version 8.1.113 and later

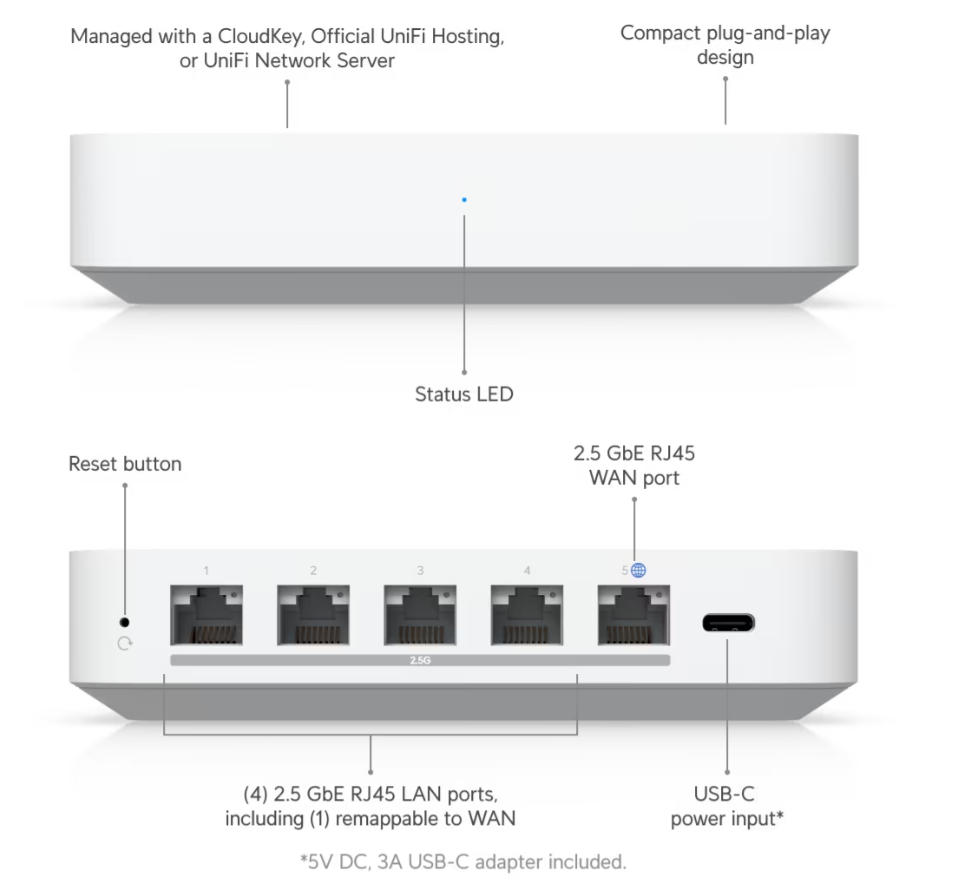

Features
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- Up to 2.3 Gbps routing with IDS/IPS
- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN
- USB-C powered (adapter included)
- Managed with UniFi Network 8.1.113 and later
