Ubiquiti UXG-Lite Gateway Lite
Product Details
Compact independent gateway with a full suite of advanced routing and security features.
Specifications
Overview
Dimensions: 98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
Max. WAN Port Count: 1
Default WAN Ports: (1) GbE RJ45

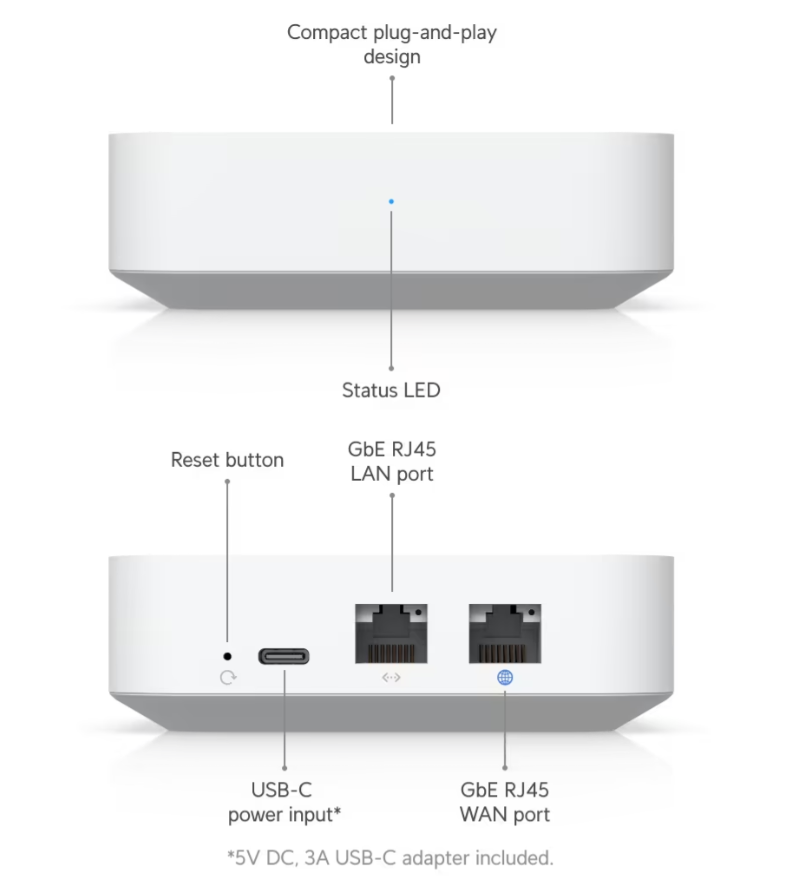

Port Layout
1 GbE RJ45
2 (1G/100M/10M)
IDS/IPS Throughput: 1 Gbps
Form Factor: Compact desktop
Stateful Firewall: ✓
Application-Aware Layer 7 Firewall: ✓
DPI & Traffic Identification: ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
Content Filtering: ✓
Intrusion Prevention (IPS/IDS): ✓
Ad Blocking: ✓
License-Free SD-WAN: ✓
Site-to-Site VPN
Site Magic:✓
IPsec: ✓
OpenVPN: ✓
VPN Server
Teleport Zero-Configuration VPN: ✓
WireGuard: ✓
OpenVPN: ✓
L2TP: ✓
VPN Client
OpenVPN: ✓
WireGuard: ✓
Dynamic Routing
OSPF: ✓
Advanced QoS: ✓
Multicast DNS (mDNS): ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
Integrated RADIUS Server: ✓
RADIUS over TLS (RadSec): ✓
Additional Internet Failover with UniFi LTE Backup: ✓
Internet Quality and Outage Reporting: ✓
Policy-based WAN and VPN Routing: ✓
Customizable DHCP Server: ✓
IPv6 ISP Support: ✓
Max. Power Consumption: 3.83W
Power Method: USB type C (5V DC/3A)
Power Supply: USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range: 100—240V AC
Processor: Dual-core ARM® Cortex®-A53 at 1 GHz
System Memory: 1 GB
Weight: 320 g (11.3 oz)
Enclosure Material: Polycarbonate
Management: Ethernet Bluetooth
LEDs
Ethernet: ✓
Button: (1) Factory-reset
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel
Application Requirements
UniFi Network: Version 8.3.32 and later
Features
- Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
- Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later
- (1) GbE WAN port
- (1) GbE LAN port
- Compact footprint
- USB-C powered (adapter included)
