Description
Ubiquiti UXG-Fiber Gateway Fiber
Product Details
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Specifications
Overview
Dimensions: 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
Max. WAN Port Count: 6
Default WAN Ports: (1) 10G SFP+ (1) 10 GbE RJ45
Port Layout
2.5 GbE RJ45: 4 (2.5G/1G/100M/10M)
10 GbE RJ45: 1 (10G/2.5G/1G)
10G SFP+: 2 (10G/1G)
IDS/IPS Throughput: 5 Gbps
Form Factor: Compact desktop
Stateful Firewall: ✓
Application-Aware Layer 7 Firewall: ✓
DPI & Traffic Identification: ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
Content Filtering: ✓
Intrusion Prevention (IPS/IDS): ✓
Ad Blocking: ✓
IDS/IPS Signatures: 55,000+ With CyberSecure
License-Free SD-WAN: ✓
Site-to-Site VPN
Site Magic: ✓
IPsec: ✓
OpenVPN: ✓
VPN Server
Teleport Zero-Configuration VPN: ✓
WireGuard: ✓
OpenVPN: ✓
L2TP: ✓
VPN Client
OpenVPN: ✓
WireGuard: ✓
Multi-WAN Load Balancing: ✓
Dynamic Routing
OSPF: ✓
Advanced QoS: ✓
Multicast DNS (mDNS): ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
Integrated RADIUS Server: ✓
RADIUS over TLS (RadSec): ✓
Additional Internet Failover with UniFi LTE Backup: ✓
Internet Quality and Outage Reporting: ✓
MAC Address Table Size: 4,000
PoE Budget: 30W
Max. PoE Wattage per Port by PSE
PoE+: 30W
Voltage Range PoE Mode: 50—57V
Max. Power Consumption: 25W (Excluding PoE output)
Power Method: DC jack (54V DC/1.1A)
Power Supply: 54V DC/1.1A (Adapter included)
Supported Voltage Range: 100—240V AC
Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory: 2 GB
Weight: 605 g (1.3 lb)
Enclosure Material: Polycarbonate
Management: Ethernet Bluetooth
LEDs
Ethernet: ✓
SFP+: ✓
System: ✓
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC

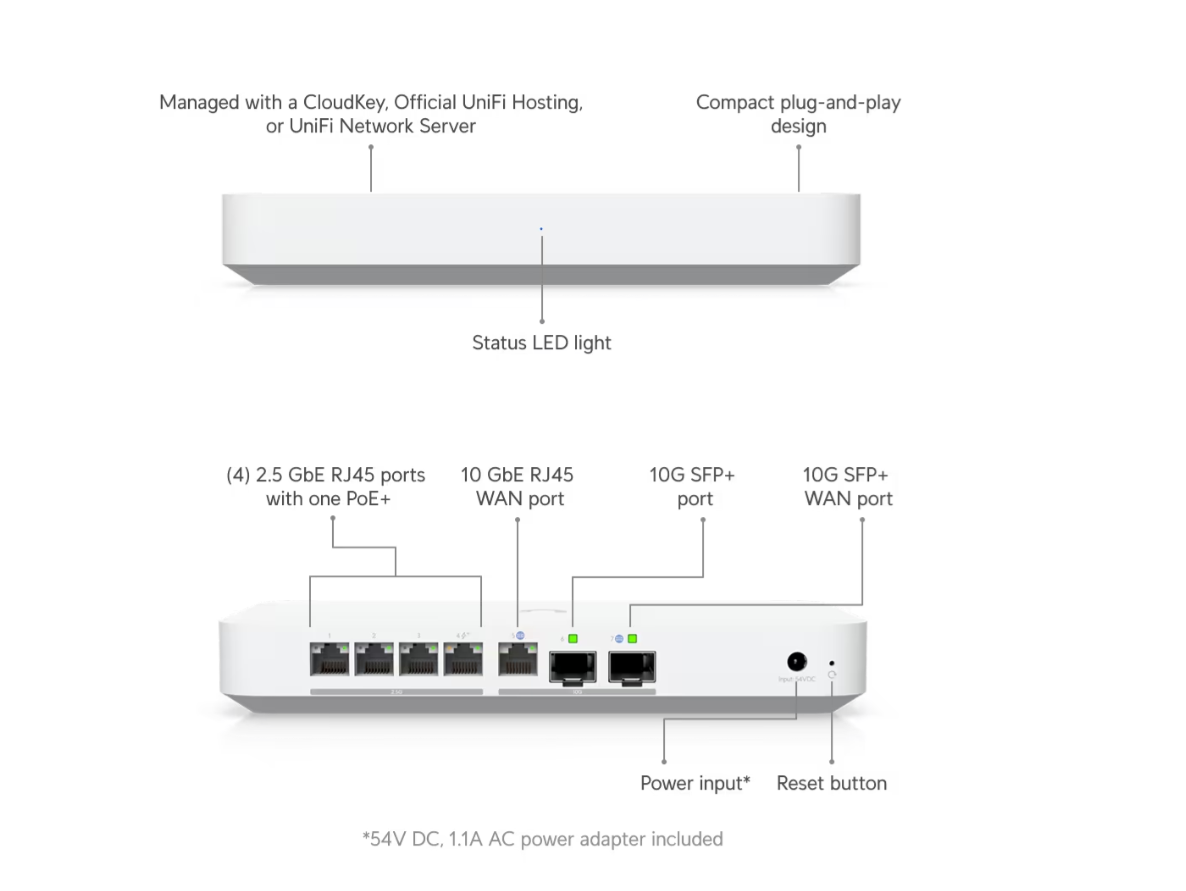

Features
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
