Description
Product Details

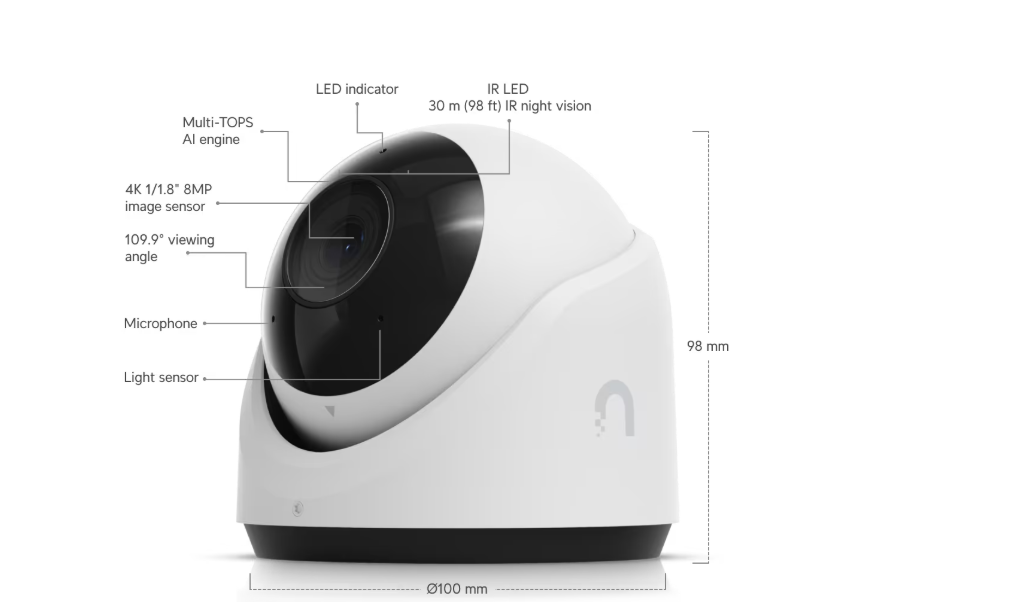

All-weather, tamper-resistant 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and 3-axis manual adjustment for flexible installation.
Technical Specifications:
|
|
OVERVIEW
|
|
Dimensions |
100 x 95 mm (3.9 x 3.7") |
|
IR Night Vision |
30 m (98 ft) |
|
Face Recognition |
Yes |
|
License Plate Recognition |
Yes |
|
Smart Detections (People, Vehicles, Animals) |
Yes |
|
Resolution |
4K |
|
Field Of View |
H: 109.9°, V: 56.7°, D: 134.1° |
|
Audio |
Microphone |
|

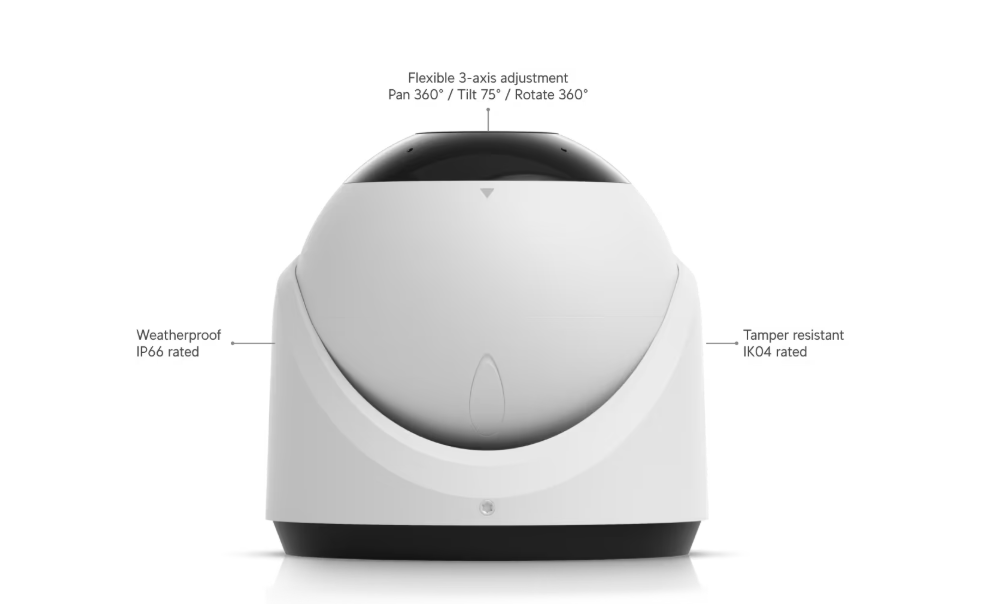

Weatherproofing |
IP66 |
|
Temper Resistance |
IK04 |
|

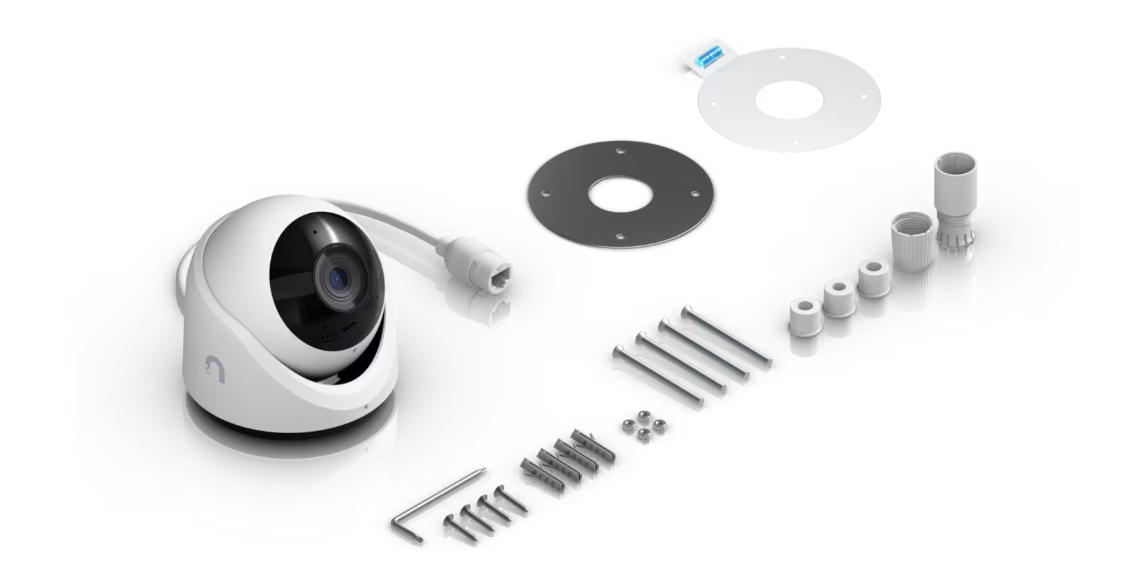

Mounting |
Wall, ceiling (Included)
Arm, pendant, junction box (Optional)
|
|
UniFi Application Suite |
Protect
|
|
|
PERFORMANCE |
|
Networking Interface |
10/100 MbE RJ45 port |
|
Video |
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR Max. Frame Rate: 30 FPS Resolution: 8MP 3840 x 2160 (16:9)
|
|
Optics |
Sensor: 1/1.8” 8MP Lens: Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter |
|
|
HARDWARE
|
|
Max. Power Consumption |
12.5W |
|
Supported Voltage Range |
37—57V DC |
|
Power Method |
PoE |
|
Processor |
Quad-core Arm® Cortex®-A53 based chip |
|
Pole Mount Diameter |
1.5–2" (38–50 mm) |
|
Weight |
550g (1.2lb) |
|
Enclosure Material |
Polycarbonate, aluminum alloy |
|

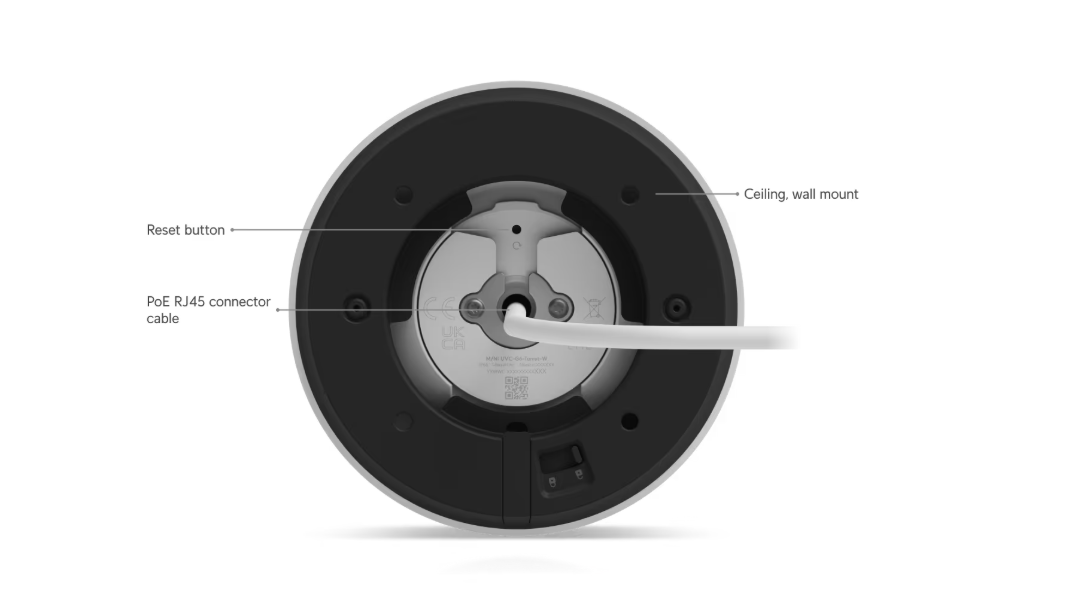

Button |
(1) Factory-reset |
|
Cable |
Cable Connector Type: RJ45
Cable Diameter: 4.5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Thermoplastic elastomer
Jacket Enclosure Dimensions:
20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material:
Thermoplastic elastomer, polycarbonate, silicone rubber
|
|
Ambient Operating Temperature |
-30 to 50º C (-22 to 122º F) |
|
Ambient Operating Humidity |
0 to 90% noncondensing |
|
Certifications |
FCC, IC, CE |
|
NDAA Compliant |
Yes |
