Description
Product Details

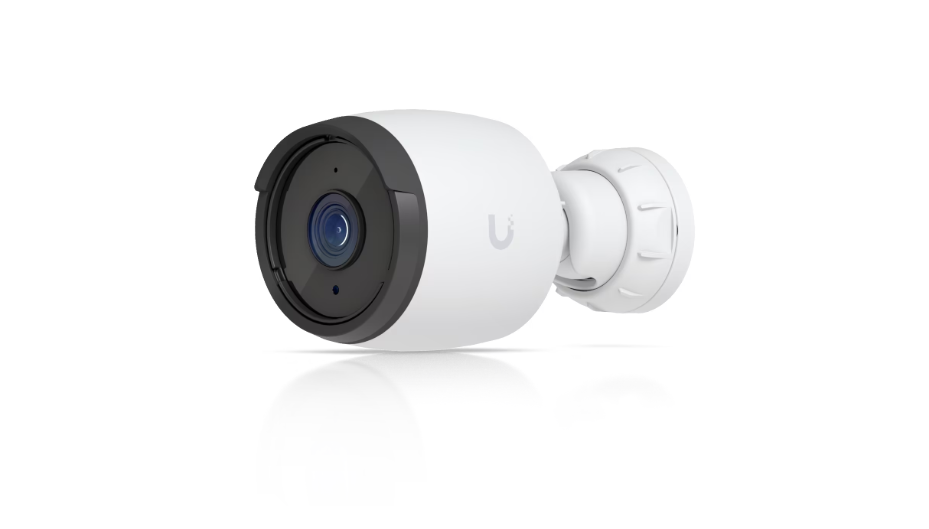

All-weather 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and long-range IR night vision.
Technical Specifications:
|
|
OVERVIEW
|
|
Dimensions |

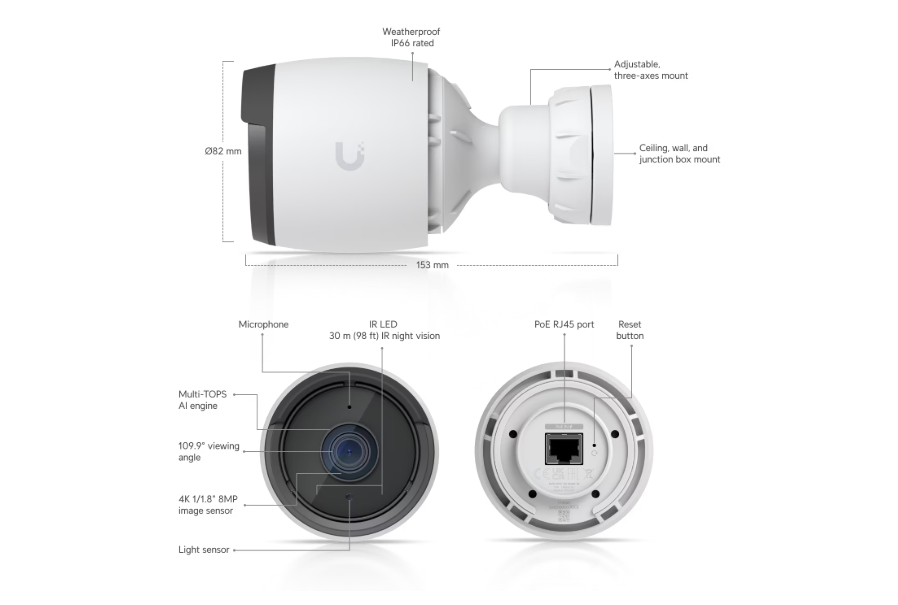

Without mount: 82 x 88.8mm (3.2 x 3.5") With mount: 82 x 153mm (3.2 x 6") |
|
IR Night Vision |
30 m (98 ft) |
|
Face Recognition |
Yes |
|
License Plate Recognition |
Yes |
|
Smart Detections (People, Vehicles, Animals) |
Yes |
|
Resolution |
4K |
|
Field Of View |
H: 109.9°, V: 56.7°, D: 134.1° |
|
Audio |
Microphone |
|
Weatherproofing |
IP66 |
|
Temper Resistance |
IK04 |
|
Mounting |

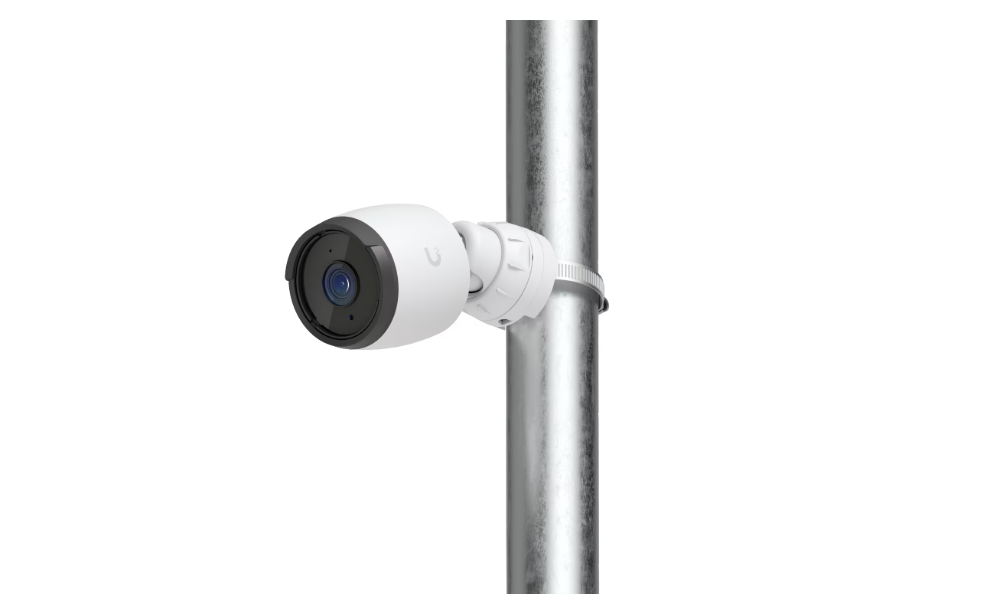

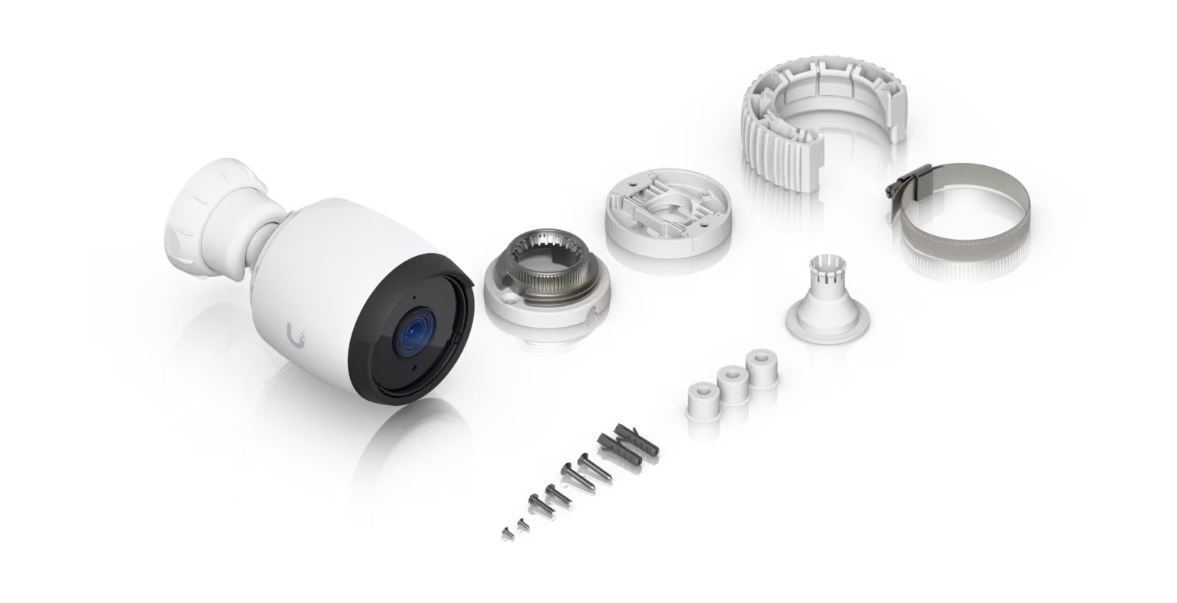

Wall, ceiling, pole mount (Included) Junction box, angled base (Optional)
|
|
UniFi Application Suite |
Protect
|
|
|
PERFORMANCE |
|
Networking Interface |
10/100 MbE RJ45 port |
|
Video |
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR Max. Frame Rate: 30 FPS Resolution: 8MP 3840 x 2160 (16:9)
|
|
Optics |
Sensor: 1/1.8” 8MP Lens: Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter |
|
|
HARDWARE
|
|
Max. Power Consumption |
9.9W |
|
Supported Voltage Range |
37—57V DC |
|
Power Method |
PoE |
|
Processor |
Quad-core Arm® Cortex®-A53 based chip |
|
Pole Mount Diameter |
1.5–2" (38–50 mm) |
|
Weight |
Without mount: 587 g (1.3 lb) With mount: 737 g (1.6 lb) |
|
Enclosure Material |
Polycarbonate, aluminum alloy |
|
Mount Material |
Wall mount: aluminum alloy, polycarbonate Pole mount: aluminum alloy |
|
Button |
(1) Factory-reset |
|
Ambient Operating Temperature |
-20 to 50° C (-4 to 122° F) |
|
Ambient Operating Humidity |
0 to 90% noncondensing |
|
Certifications |
FCC, IC, CE |
|
NDAA Compliant |
Yes |
