Description
Product Details

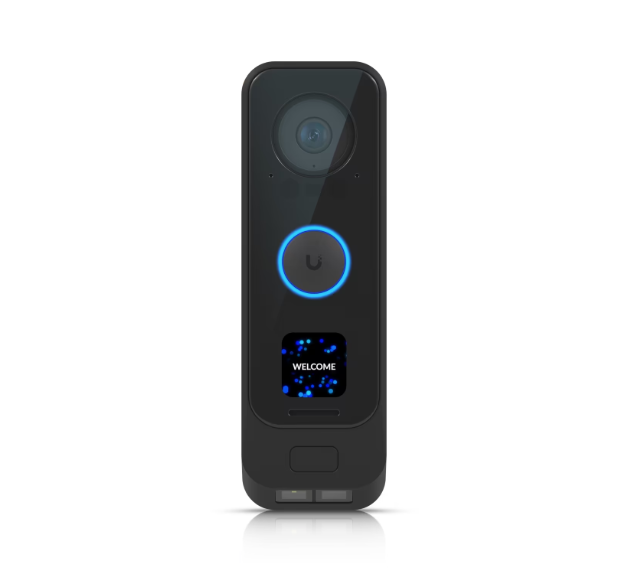

Premium UniFi doorbell with an enhanced package detection camera and integrated display.
- Streams 1080p HD video at 30 FPS
- Dual-band WiFi and GbE connectivity
- (1) 5MP camera with an IR LED [Video output: 1600x1200 (2MP), 30 FPS]

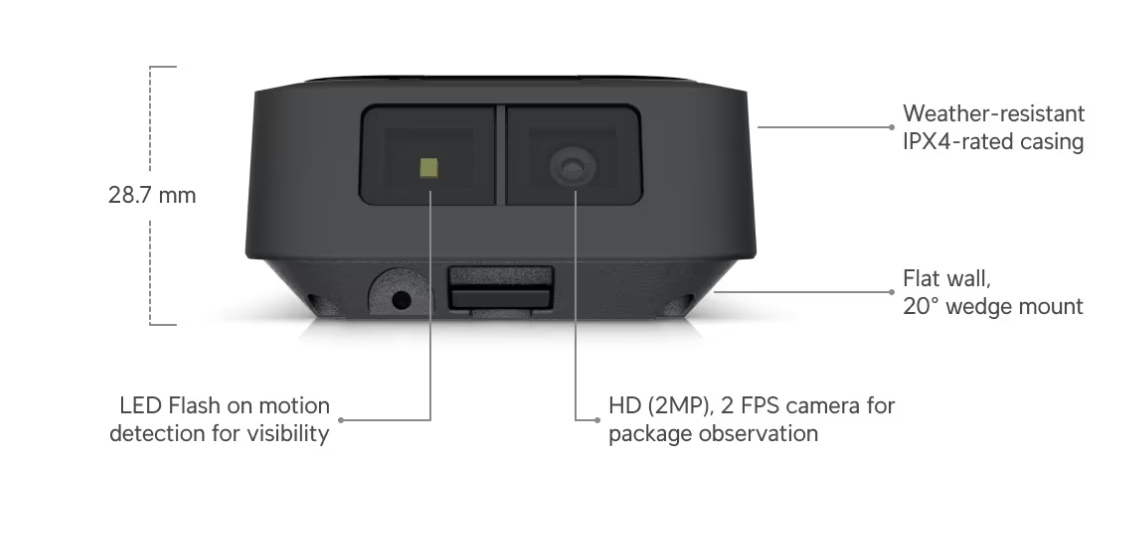

- (1) 8MP package camera [Video output: 1600x1200 (2MP), 2 FPS, no IR LED]
- Two-way audio with echo cancellation
Technical Specifications:
|
|
OVERVIEW
|
|

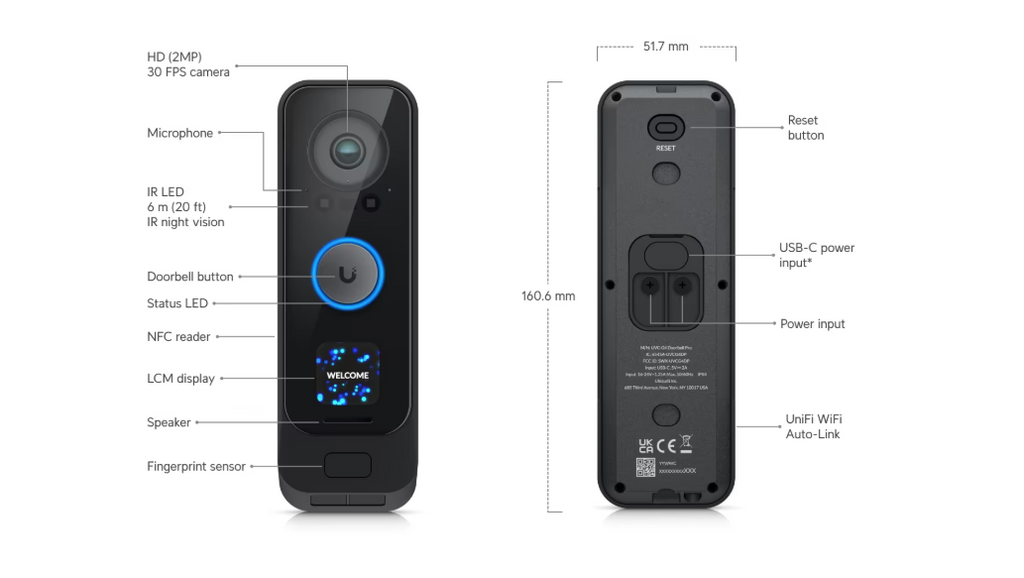

Dimensions |
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
|
IR Night Vision |
6 m (20 ft) |
|
Smart Detections (People, Vehicles, Animals) |
Yes |
|
Resolution |
Compact desktop, wall, magnetic |
|
Field Of View |
Main camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
|
Audio |
Two-way audio |
|
Weatherproofing |
IPX4 |
|
Mounting |
Flat wall, 20° wedge (Included)
|
|
|
PERFORMANCE |
|
Networking Interface |

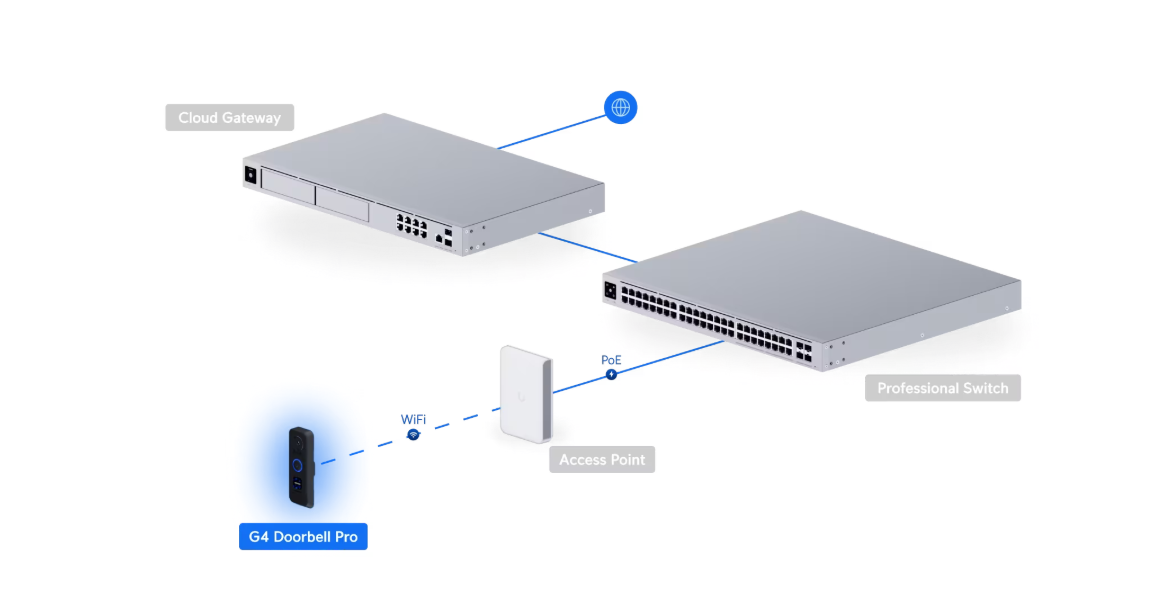

802.11a/b/g/n/ac WiFi; Bluetooth 5.0 GbE support (With UACC-Adapter-DBPOE) |
|
Video |
Max. Frame Rate: 30 FPS Resolution:
|
|
Optics |
Sensor:
Lens: Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter |
|
|
HARDWARE
|
|
Max. Power Consumption |
30W |
|
Supported Voltage Range |
37—57V DC |
|
Power Method |
16—24V AC, 1.25A Max., 50/60 Hz USB-C power cable, 5V DC, 2A |
|
Processor |
Quad-core Arm® Cortex®-A53 based chip |
|
Weight |
Device: 253 g (8.9 oz) With flat wall mount: 286 g (10.1 oz) With 20° wedge mount: 325 g (11.5 oz) |
|
Enclosure Material |
Polycarbonate, aluminum alloy |
|
Mount Material |
Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
|
Button |
(1) Ring button (1) Factory-reset |
|
Compatible Chimes |
Mechanical:
Digital
|
|
Ambient Operating Temperature |
10 to 40° C (14 to 104° F) |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Certifications |
FCC, IC, CE |
|
NDAA Compliant |
Yes |
