Description
Ubiquiti UT-ATA Analog Telephone Adapter
Product Details
Easy-to-deploy adapter for managing analog telephones and fax machines with UniFi Talk.
Specifications
Overview

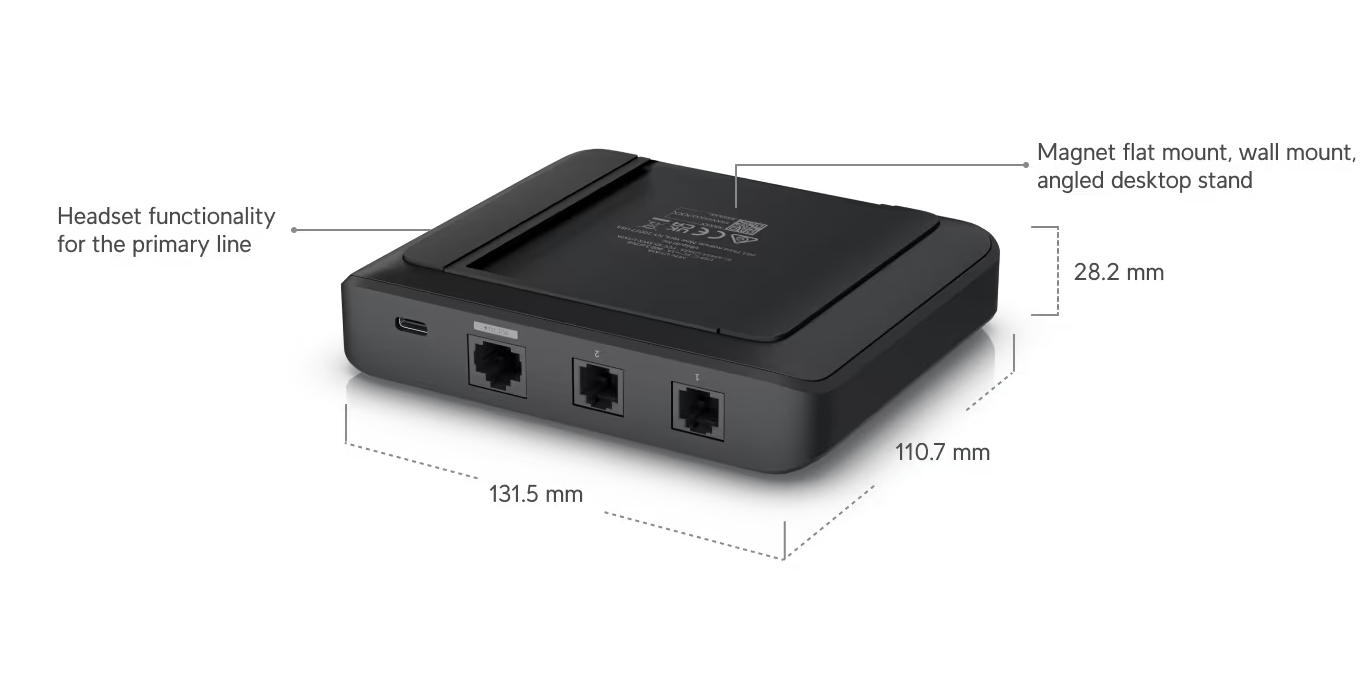

Dimensions: 131.5 x 110.7 x 28.2 mm (5.2 x 4.4 x 1.1")
UniFi Application Suite
Talk: ✓
Mounting: Flat/Angle Mount
Telephone Features: Voicemail, DND, caller ID, Call Transfer, Call Waiting, 3-Way Conference
Weight: 300 g (10.6 oz)
Enclosure Material: Polycarbonate
Connectivity: (1) 100 MbE RJ45 port/PoE (1) 3.5 mm (0.14") headset port (2) RJ11 FXS ports (1) USB-C (power input) 802.11a/b/g/n/ac WiFi 2.4G b/g/n, BW 20 WiFi 5G a/n/ac, BW 20/40/80
Power Method: USB-C 5V DC, 1A PoE 48V DC, 0.35A
Power Supply: 5V DC, 1A power adapter, 1.5 m cord (Included) PoE (pair B 4, 5+; 7, 8-)
Memory: RAM: 128 Mb Storage: 256 Mb
Display
Size: 86 mm (3.4") diagonal
Resolution: 192 x 64 dots
Buttons: (3) Device Control Keys
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: FCC, IC, CE
NDAA Compliant: ✓
Supported phone lines: 2
Voice Codec: G.711 u/a
Fax Over IP: Fax Pass-Through using G.711
Management Application
UniFi Talk: Version 1.12.0 and later

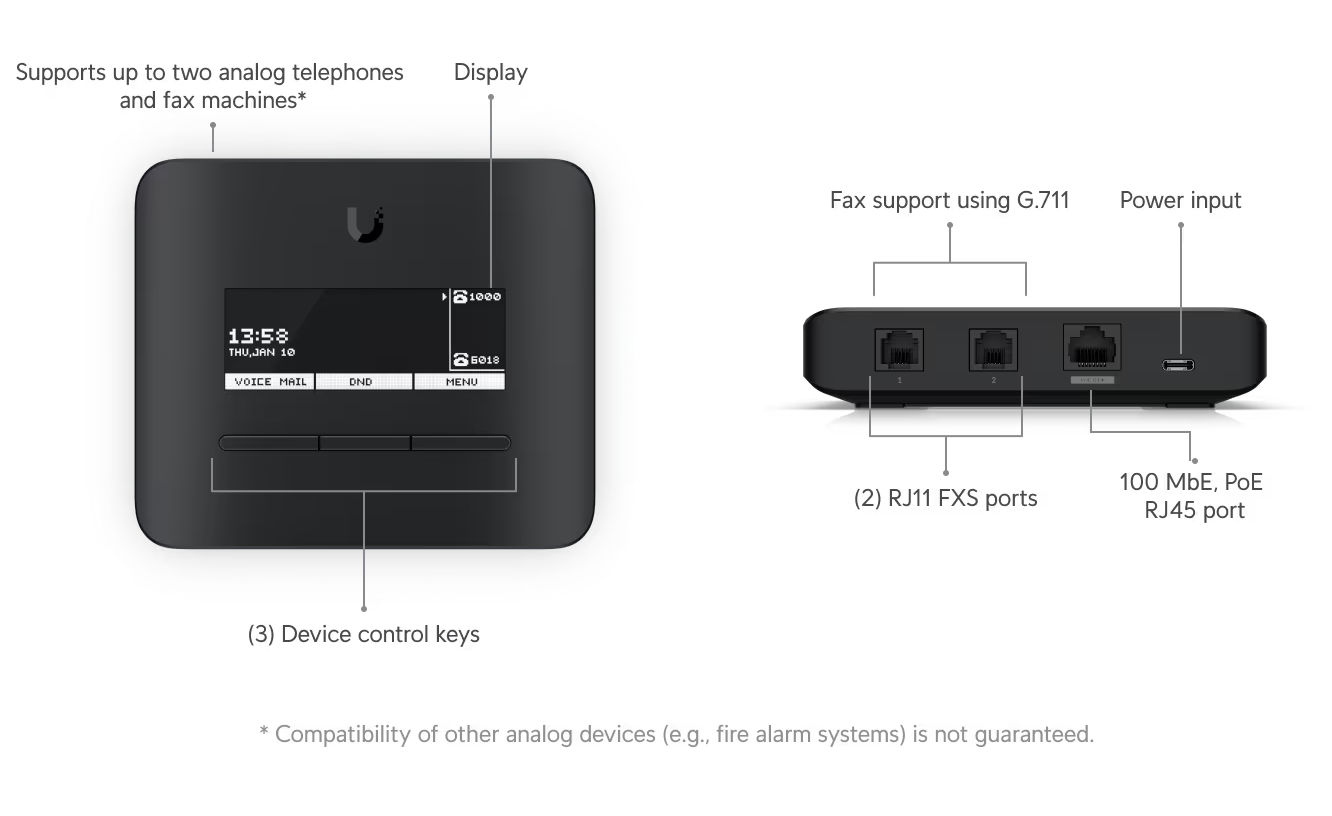

Features
- Supports up to two analog devices with respective numbers
- Supports fax passthrough using G.711
- Headset functionality for the primary line
- Included magnet flat mount, wall mount, and angled desktop stand
- Powered by the included USB-C adapter or 802.3af PoE
