Description
Product Details

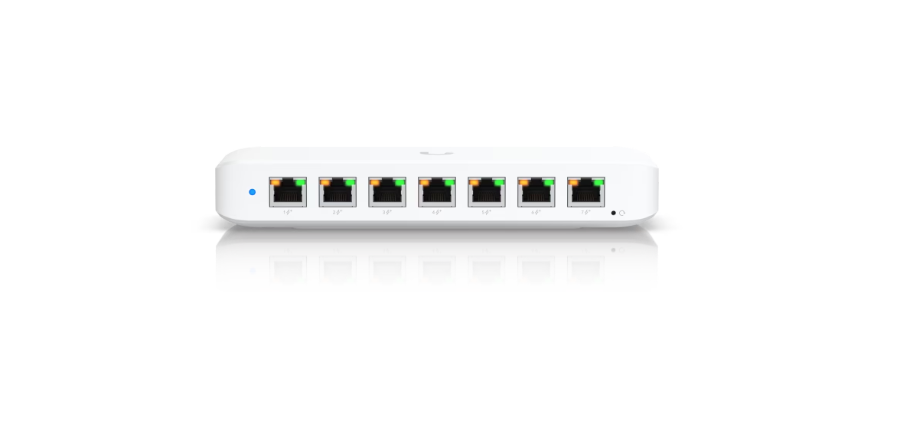

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- 52W PoE availability with the included AC power adapter
- 42W PoE availability with PoE++ input
- 17W PoE availability with PoE+ input
- 8W PoE availability with PoE input
Technical Specifications:
|
|
OVERVIEW
|
|
Dimensions |
203 x 76 x 33 mm (8 x 3 x 1.3") |
|

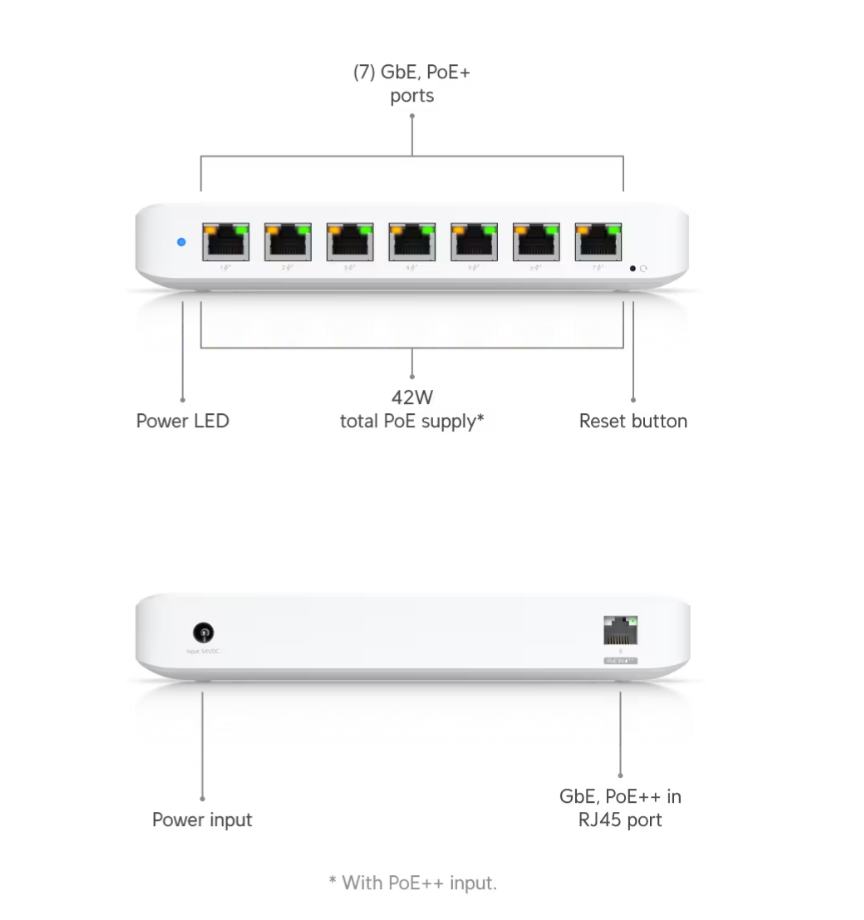

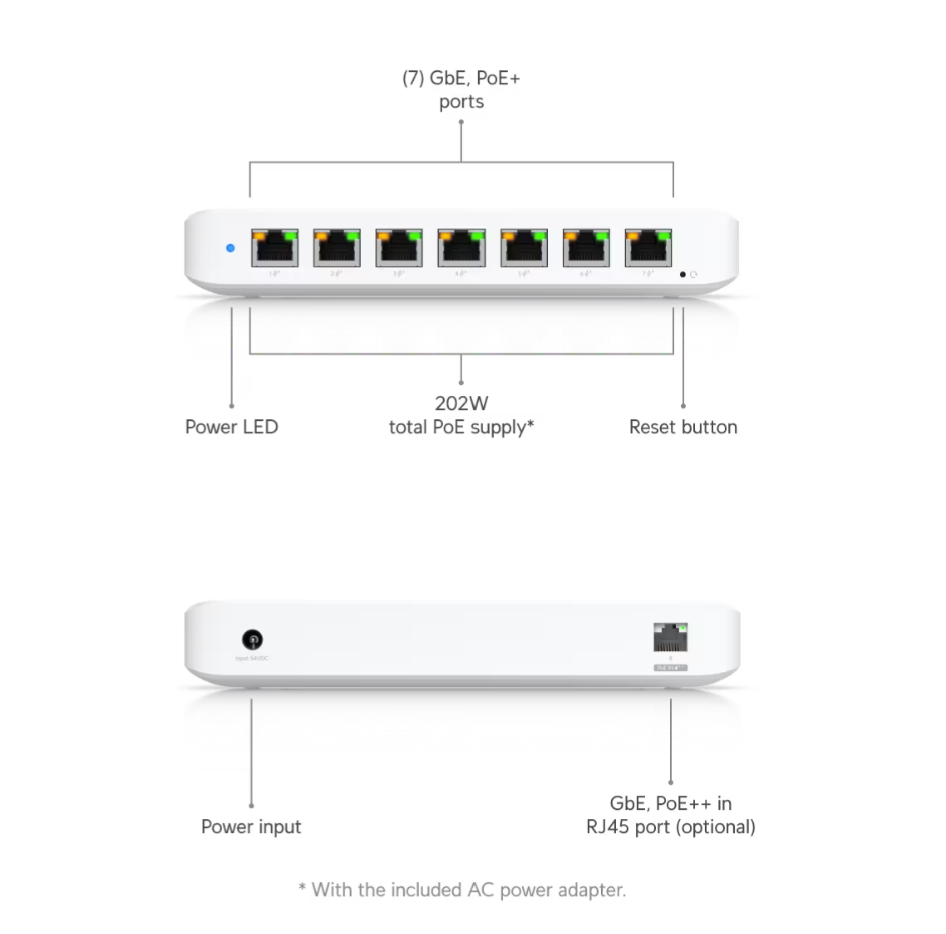

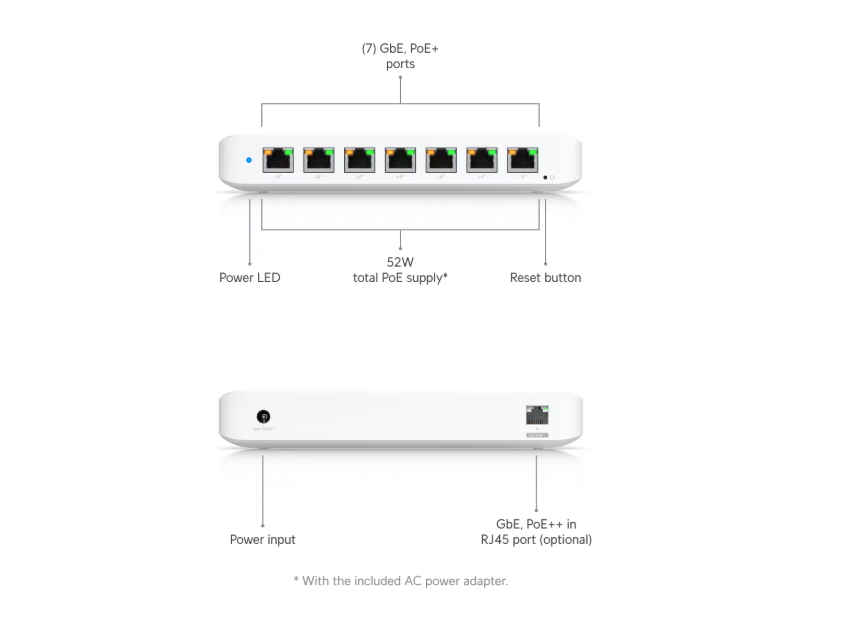

Port Layout |
1 GbE RJ45: 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M) |
|
Max. PoE Output |
PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202 |
|
Form Factor |
Compact desktop, wall, magnetic |
|
|
PERFORMANCE |
|
Switching Capacity |
16 Gbps |
|
Total Non-Blocking Throughput |
8 Gbps |
|
Forwarding Rate |
12 Mpps |
|
Supported VLANs |
256 |
|
MAC Address Table Size |
4000 |
|
Layer 2 Features |
|
|
|
HARDWARE
|
|
PoE Ports |
7 PoE+ 1 PoE++ |
|
Max. PoE Wattage per Port by PSE |
PoE+: 30W |
|
Max. Power Consumption |
9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input |
|
Power Method |
(1) AC/DC adapter (Included) (1) PoE++ |
|
Power Input Method |
DC input PoE |
|
Power Supply |
AC/DC, external, 60W |
|
Supported Voltage Range |
50—57V DC/PoE |
|
Management |
Ethernet |
|
Heat Dissipation (Excluding PoE Output) |
30.708 BTU/hr 27.296 BTU/hr |
|
Weight |
Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 330 g (11.6 oz) |
|
Enclosure Material |
Polycarbonate |
|
Ambient Operating Temperature |
PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 60° C (-4 to 140° F) |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Certifications |
FCC, IC, CE |
|
NDAA Compliant |
Yes |
|
|
SOFTWARE
|
|
UniFi Network |
Version 8.0.7 and later |
