Ubiquiti USW-Ultra Switch Ultra
Product Details

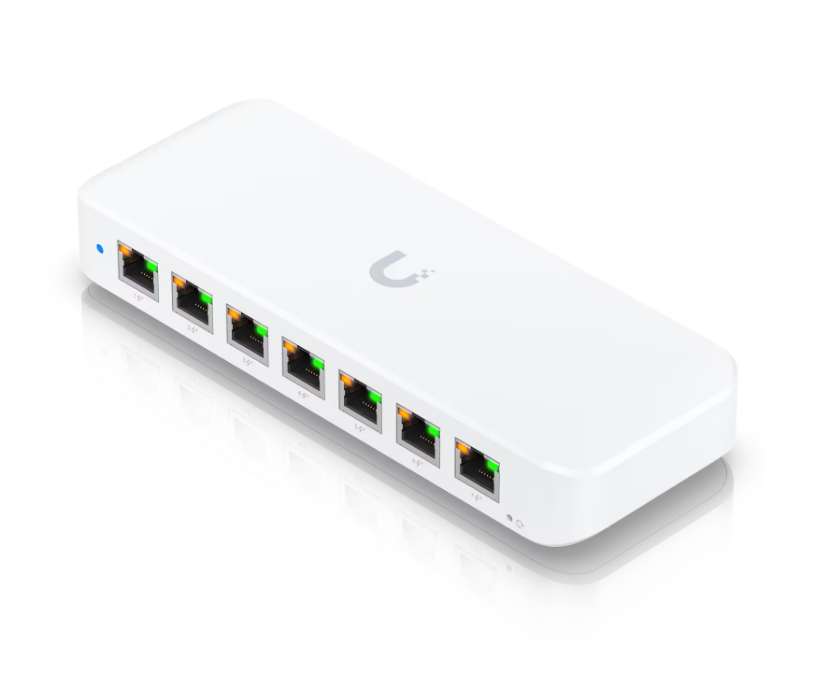

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- 8 Ports - Manageable - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - 9 W Power Consumption - 42 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable
Specifications
Overview
Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")

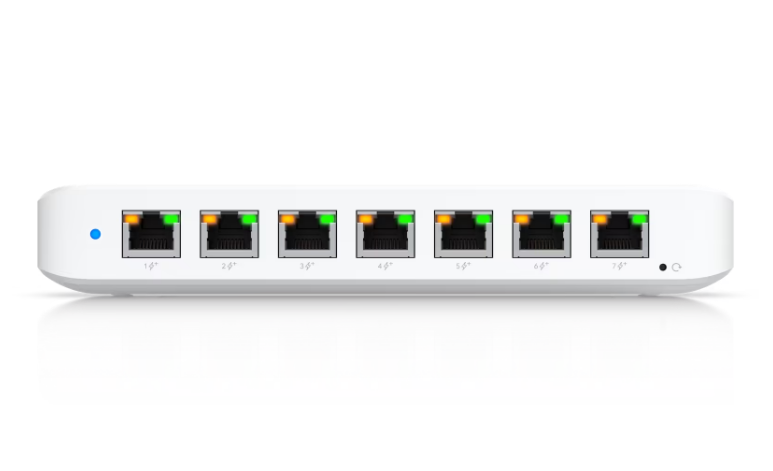

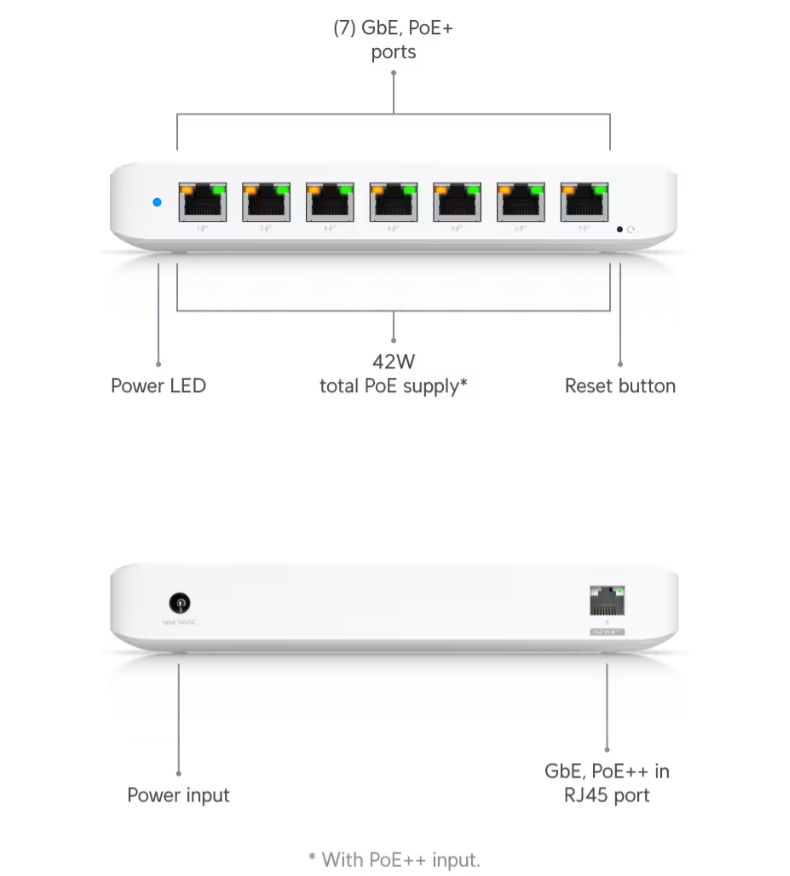

Port Layout: 1 GbE RJ45, 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Max. PoE Output: Up to PoE+
Total PoE Availability: PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202
Form Factor: Compact desktop, wall, magnetic
Switching Capacity: 16 Gbps
Total Non-Blocking Throughput: 8 Gbps
Forwarding Rate: 12 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000
STP & RSTP: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast & Broadcast Rate Limiting: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
Loop Protection: ✓
PoE Ports
PoE+: 7
PoE++: 1
Max. PoE Wattage per Port by PSE
PoE+: 30W
Max. Power Consumption: 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input

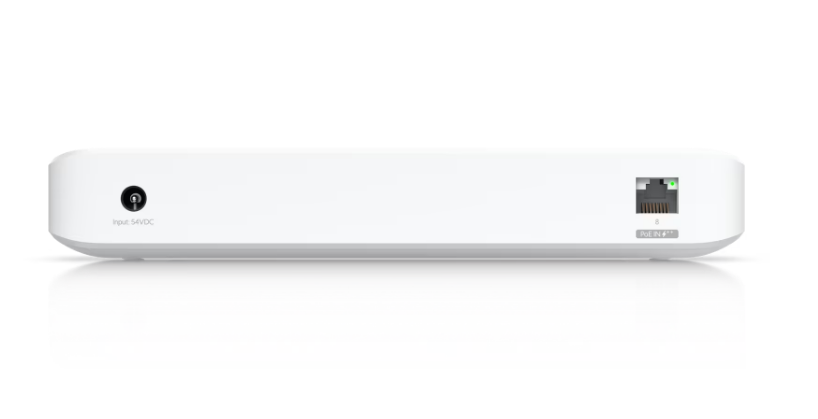

Power Method: (1) AC/DC adapter (Excluded) (1) PoE++
Power Input Method: DC Input PoE
Supported Voltage Range: 50—57V DC/PoE
Management: Ethernet
Heat Dissipation (Excluding PoE Output): 30.708 BTU/hr 27.296 BTU/hr
Weight: Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz)
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate
Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel
Application Requirements
UniFi Network: Version 8.0.28 and later
