Description
Product Details

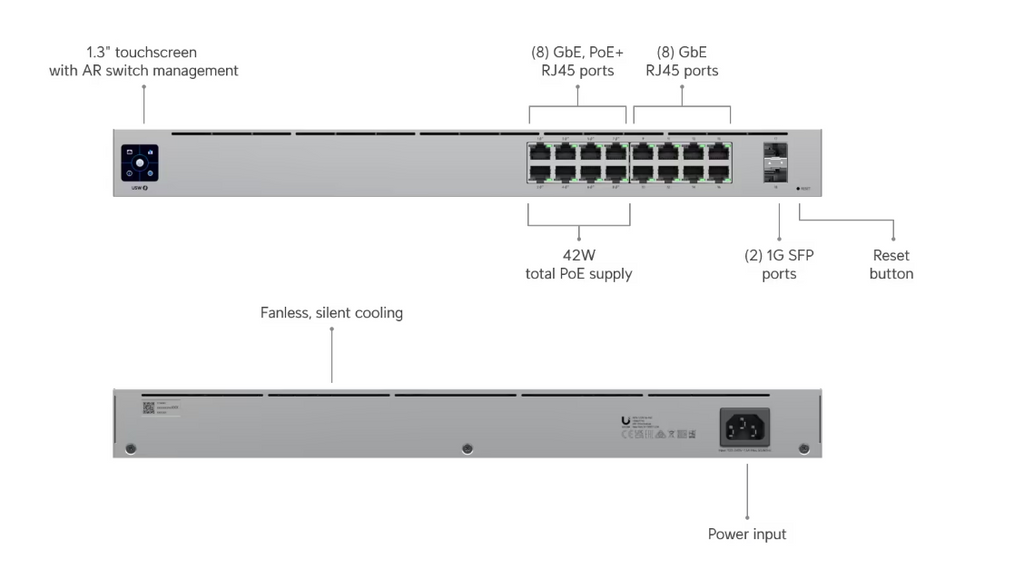

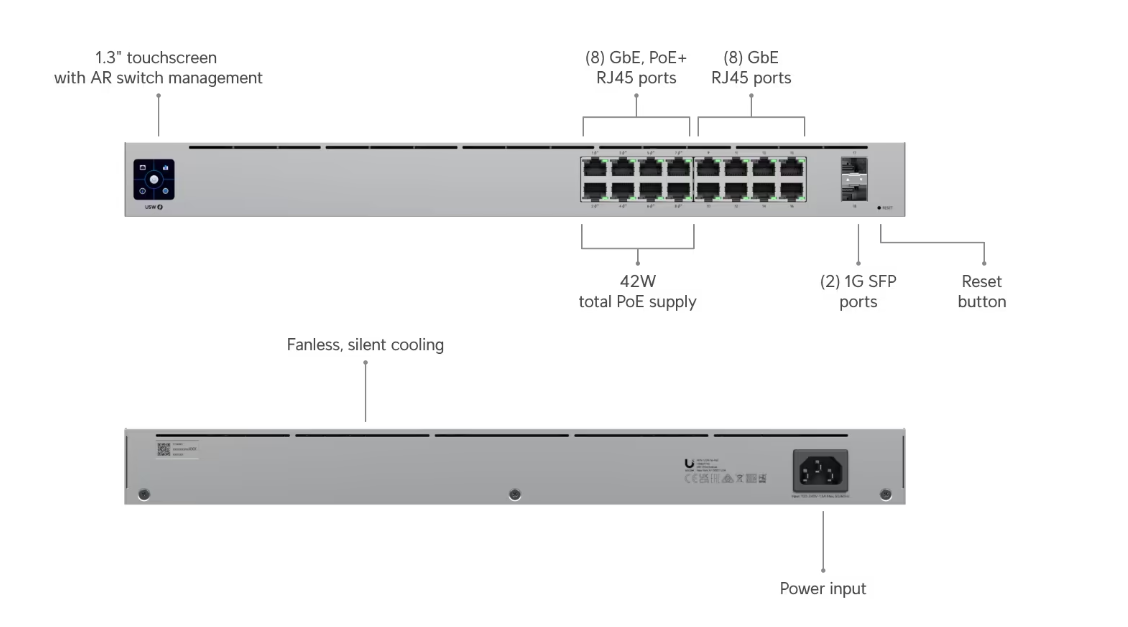

A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.
- (8) GbE PoE+, (8) GbE ports
- (2) 1G SFP ports
- 42W total PoE availability
- Fanless, silent cooling
Technical Specifications:
|
|
OVERVIEW
|
|

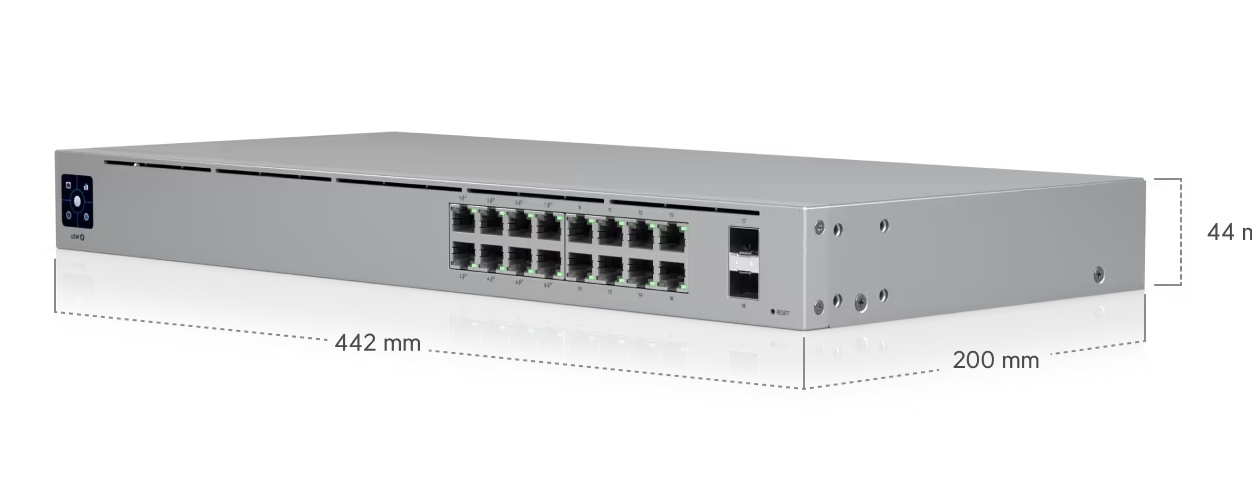

Dimensions |
442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
|
Port Layout |
1 GbE RJ45: 16 (8 PoE+); 1G/100M/10M 1G SFP: 2 |
|
Max. PoE Output |
Up to PoE+ |
|
Total PoE Availability |
42W |
|
Form Factor |
Rack mount (1U) |
|
|
PERFORMANCE |
|
Switching Capacity |
36 Gbps |
|
Total Non-Blocking Throughput |
18 Gbps |
|
Forwarding Rate |
27 Mpps |
|
Supported VLANs |
1,000 |
|
MAC Address Table Size |
8,000 |
|
Packet Buffer Size |
0.5 MB
|
|
Layer 2 Features |
|
|
|
HARDWARE
|
|
PoE Ports |
8 PoE+ |
|
Max. PoE Wattage per Port by PSE |
PoE: 15.4W PoE+: 32W |
|
Max. Power Consumption |
18W (Excluding PoE Output) 60W (Including PoE Output) |
|
Power Method |
Universal input, 100—240V AC, 50/60 Hz |
|
Power Input Method |
AC input |
|
Power Supply |
AC/DC, internal, 60W |
|
Supported Voltage Range |
100—240V AC |
|
Management |
Ethernet; AR |
|
Heat Dissipation (Excluding PoE Output) |
61.416 BTU/hr |
|
Weight |
Without mounting brackets: 2.8 kg (6.2 lb.) With mounting brackets 2.9 kg (6.4 lb.) |
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
Supported Rack Depth |
400~1200 mm (15.7-47.2") |
|
LCM Display |
1.3" touchscreen |
|
ESD/EMP Protection |
Air: ± 16kV, contact: ± 12kV |
|
Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Certifications |
FCC, IC, CE |
|
NDAA Compliant |
Yes |
|
|
SOFTWARE
|
|
UniFi Network |
Version 7.2.94 and later |
