Description
Ubiquiti USP-RPS Power Backup
Product Details
950W redundant power supply for rack-mounted UniFi devices.
Specifications
Mechanical
Dimensions: 442.4 x 325.6 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight: Without mount brackets : 5.5 kg (12.1 lb) With mount brackets: 5.6 kg (12.3 lb)
Enclosure Material: SGCC steel
Management: Ethernet
Networking Interface: (1) GbE RJ45 port
Power Method: (1) Universal AC input, 100—240V AC
Power Supply: 54V DC output: AC/DC, internal, 645W 12V DC output: AC/DC, internal, 350W
Supported Voltage Range: 100—240V AC
Max. Power Consumption: 995W

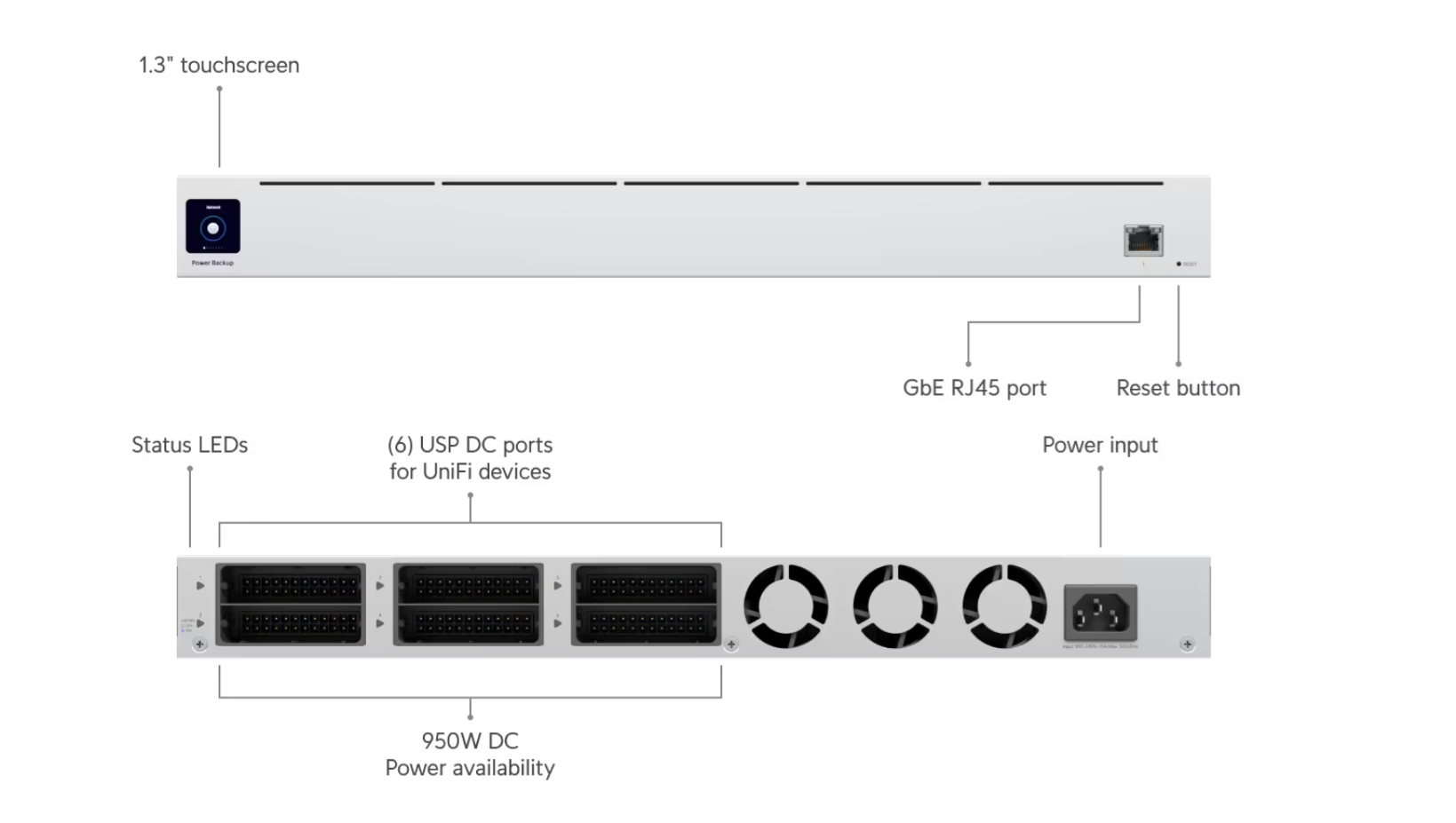

Power Output: (6) RPS DC ports
Max. Power Output: 52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W)
Max. Output Power per RPS Port: 52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W)
ESD/EMP Protection: Air: ± 16kV, contact: ± 12kV
Display: 1.3" touchscreen
Buttons: (1) Factory-reset
LEDs
System: Status
USP RPS: Activity
Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC
