Ubiquiti USP-PDU-HD Power Distribution Hi-Density
Product Details
Power distribution unit designed to support large, rack-mounted UniFi hardware deployments.
Specifications
Mechanical

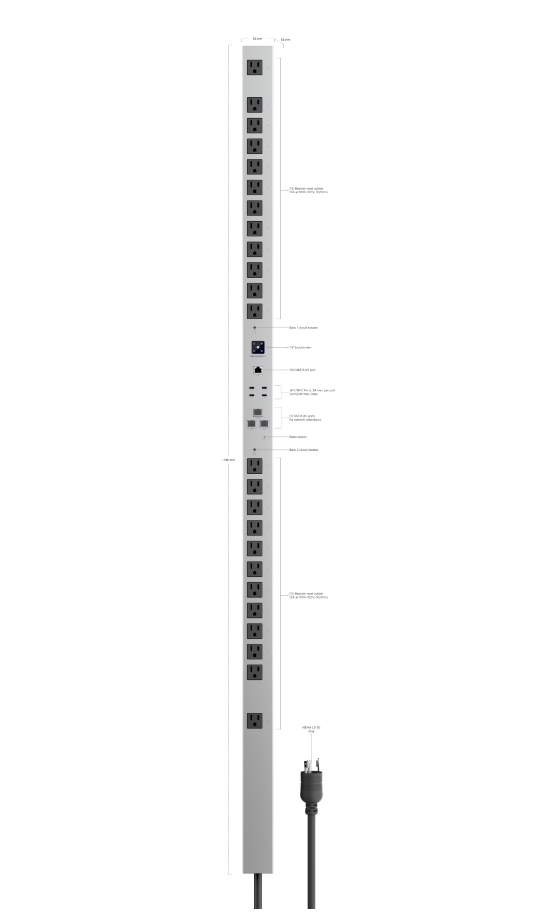

Dimensions: 1485 x 55 x 56 mm (58.5 x 2.17 x 2.2")
Weight: 6.3 kg (13.9 lb)
Enclosure Material: SGCC steel
Management: Ethernet
Networking Interface: (1) 10/100 MbE RJ45 port (3) GbE RJ45 ports for network redundancy
Power Method: 100—125V AC, 30A Max. (Derated to 24A), 50/60 Hz (NEMA L5-30P)
Power Output: (24) Power control outlets: Per Bank (Bank1: port 1 to 12, Bank2: port 17 to 28): Rating output current: 12A at 125V AC (1500W) Max. output current: 15A at 125V AC (1875W) Total: Rating output current: 24A at 125V AC (3000W) Max. output current: 30A at 125V AC (3750W) (4) USB type C ports: 5VDC 2A per port, total 20W Max. power
ESD/EMP Protection: Air: ± 8kV; contact: ± 4kV
Display: 1.3" touchscreen
Buttons: (1) Factory-reset (1) Circuit breaker
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC
Application Requirements
Mobile Apps: UniFi iOS™ and 10.11.0 and later Android™ 10.11.0 and later
UniFi Network: Version 8.0.24 and later
Features
- (24) Remote-reset outlets
- (4) USB-C ports
- 3 m power cord with NEMA L5-30 plug
- 1.3 LCM touchscreen with automation rotation
- Compatible with 36U racks and taller
