Ubiquiti USP-PDU-Pro Power Distribution Pro
Product Details
Designed to supply power to an entire rack-mounted UniFi system and remotely manage each connection.
Specifications
Mechanical
Dimensions: 442.4 x 87.4 x 106 mm (17.4 x 3.4 x 4.2")
Weight: Without mount: 3.5 kg (7.6 lb) With mount: 3.7 kg (8.2 lb)
Enclosure Material: SGCC steel
Management: Ethernet
Networking Interface: (1) 100 MbE RJ45 port (3) GbE RJ45 ports
Power Method: 125V AC, 15A Max., 50/60 Hz
Power Supply: AC/DC internal, 40W
Max. Power Consumption: 125V AC: 1,875W
Power Output: (16) Power control outlets, 125V AC, 15A Max., 50/60Hz (1,875W Max. total) (4) USB-C ports, 2A Max. per port (4A/20W Max. total)
Display: 1.3" touchscreen
Buttons: (1) Factory-reset (1) Circuit breaker
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC

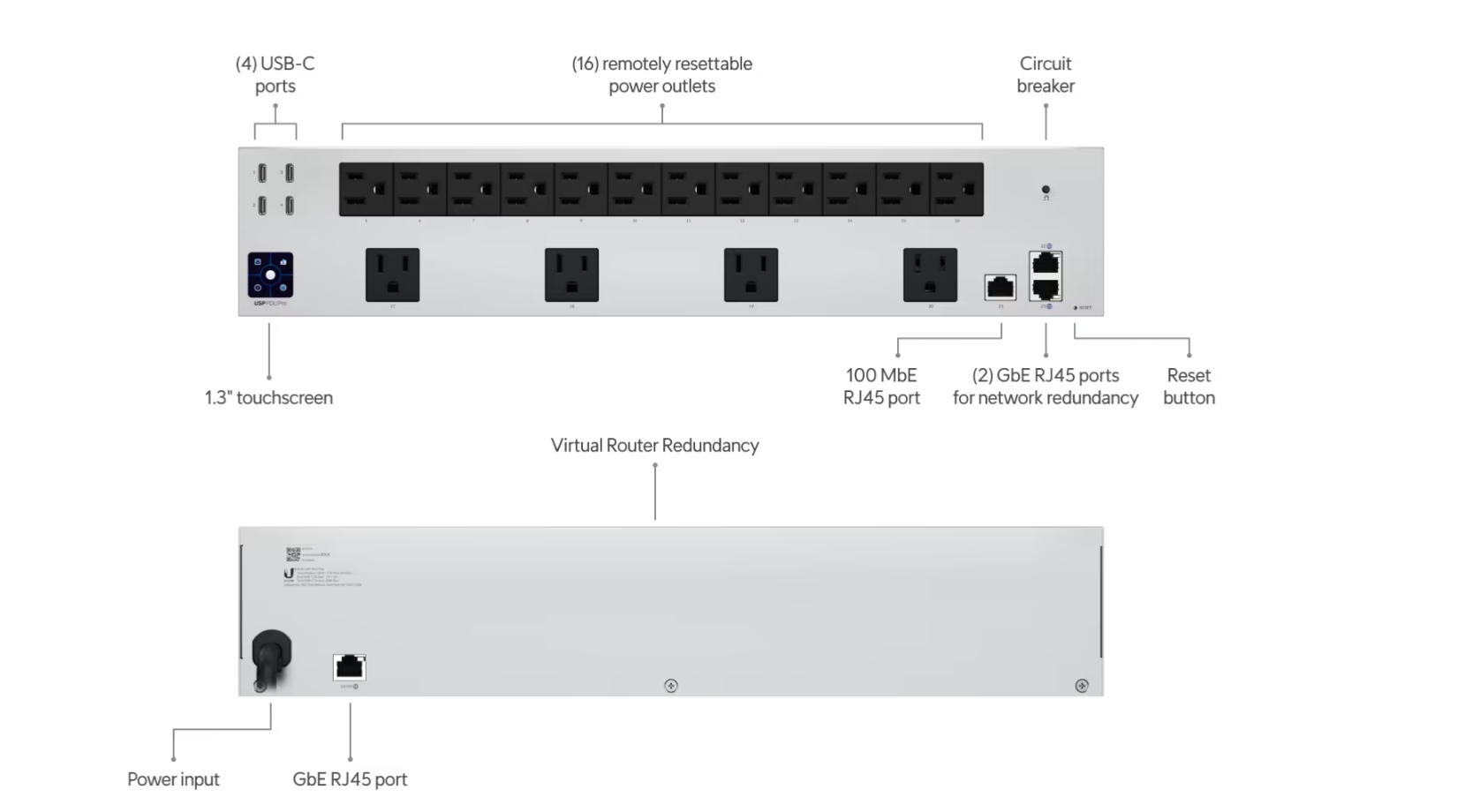

Features
- (16) Remotely resettable outlets
- (4) USB-C ports
- 1.3 LCM touchscreen
- irtual Router Redundancy*
