Description
Ubiquiti UPL-Port PoE Audio Port
A digital audio streamer with an ultra-compact, versatile design and an intuitive control system, supporting multiple music streaming services and scalable multi-zone installations.
Specifications
Mechanical
Dimensions: 109 x 109 x 40.5 mm (4.3 x 4.3 x 1.6")
Weight: 250 g (8.5 oz)
Enclosure Material: Polycarbonate
Mounting: Compact Desktop
Available Colors: Black White
Output: Mono / Stereo sound
Surround Format: PCM
Zone: Up to 32 PowerAmps and PoE Audio Ports

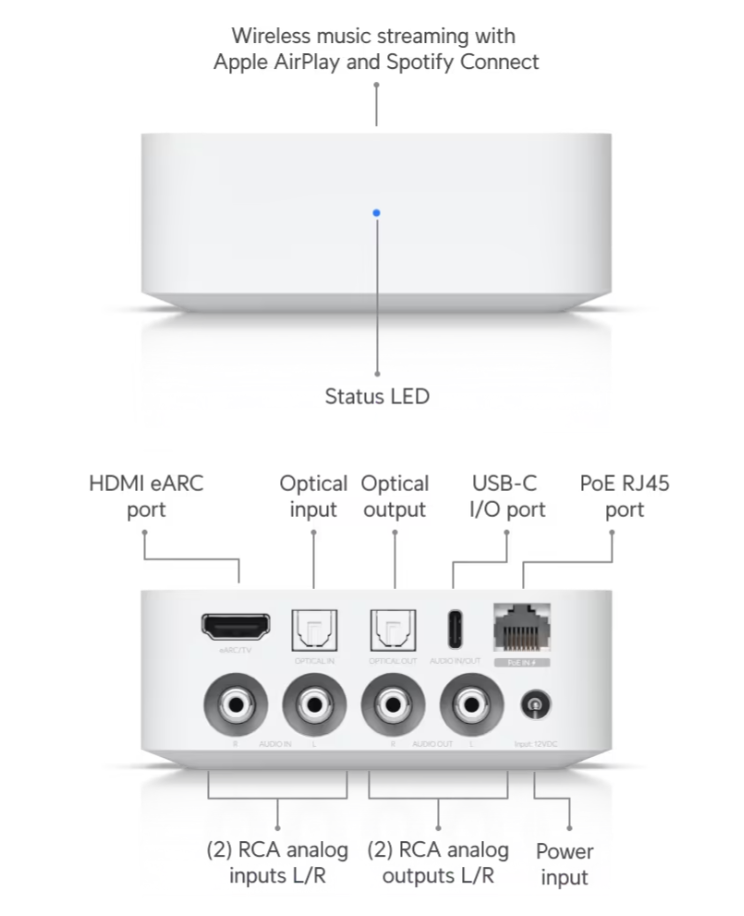

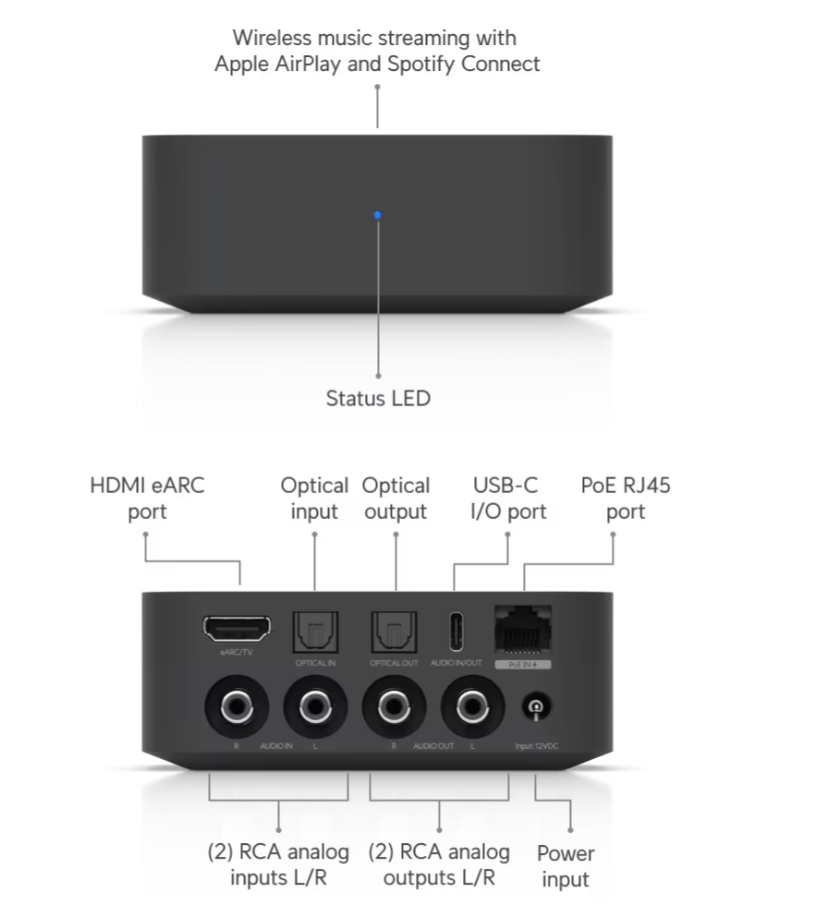

Audio Input: (2) RCA analog inputs L/R (1) HDMI eARC input (1) Optical In (1) USB-C versatile port
Audio Output: (2) RCA analog outputs L/R (1) Optical Out (1) USB-C versatile port
Streaming: AirPlay, Spotify Connect, Soundtrack Your Brand
Networking Interface: (1) 10/100 MbE RJ45 port
WiFi Standards: 802.11 a/b/g/n/ac/ax
Connectivity: WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz
Power Method: (1) AC/DC adapter, 12V DC (Included) (1) PoE
Max. Power Consumption: 10W
Button: (1) Factory-reset
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 5 to 90% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC, CE
UniFi Application Suite
Play: UniFi Play iOS™ and Android™: Version 1.8.0 and later
