Description
Ubiquiti UPL-Amp UniFi PowerAmp
Product Details
Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.
Specifications
Mechanical
Dimensions: With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5")
Weight: 2.4 kg (5.3 lb)
Enclosure Material: Chassis: Polycarbonate Knob: Aluminum
Mounting: Compact Desktop
Available Colors: Black White
Per Channel Power (Continuous power): 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A)
Amplifier Class: Class D
Output: Mono / Stereo sound
Surround Format
Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
Zone: Up to 32 PowerAmps

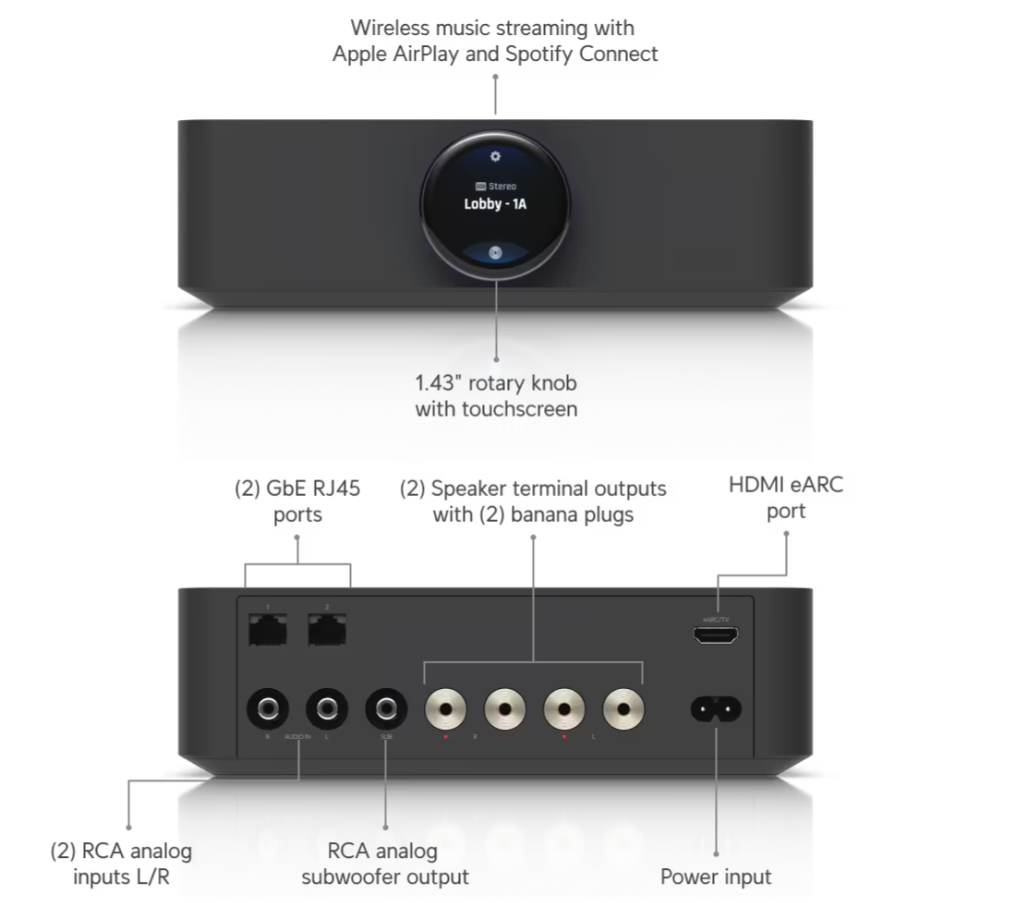

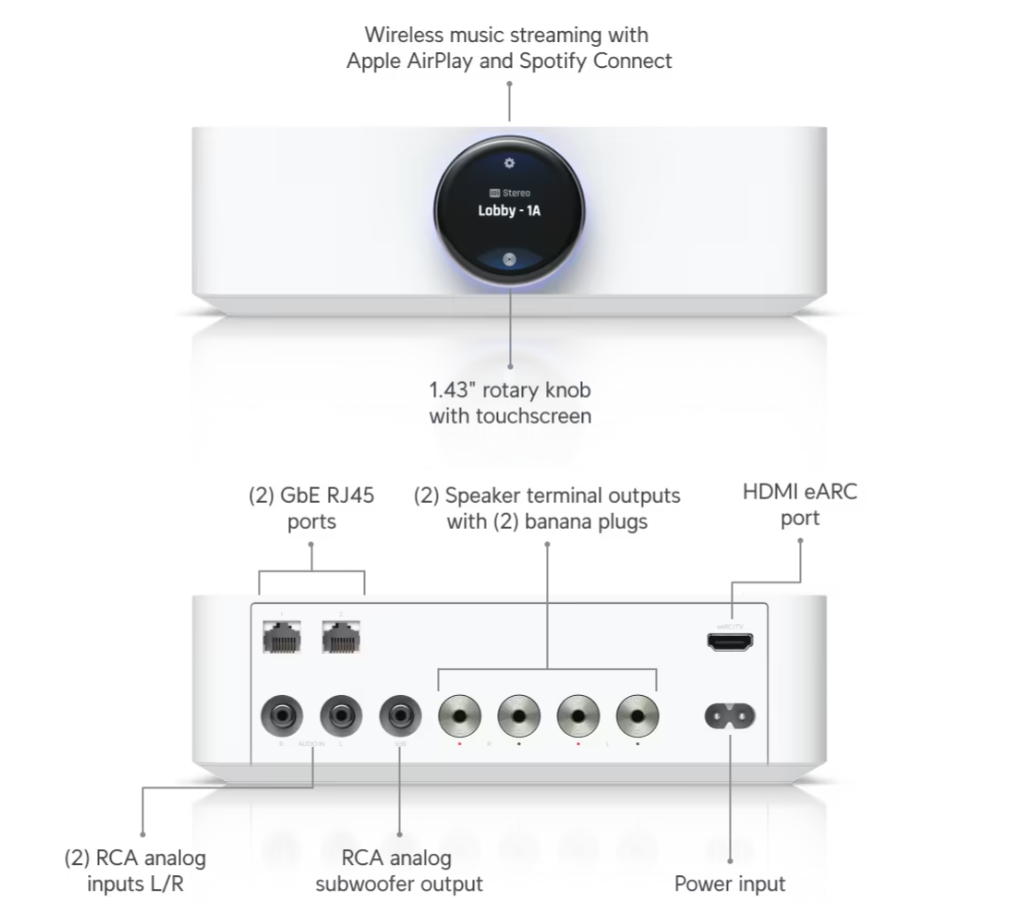

Audio Input: (1) HDMI eARC input (2) RCA analog inputs L/R
Audio Output: (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs
Streaming: AirPlay, Spotify Connect, Soundtrack Your Brand
Networking Interface: (2) GbE RJ45 ports
WiFi Standards: 802.11 a/b/g/n/ac
Connectivity: WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz
Power Method: (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz
Max. Power Consumption: 17W
LCM Display: 1.43" rotary knob with touchscreen
Button: (1) Factory-reset
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 5 to 90% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC, CE
UniFi Application Suite
Play: UniFi Play iOS™ and Android™: Version 1.0.0 and later
Features
- Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect
- 130 watts per channel at 8 ohms
- (2) speaker terminal outputs with (2) custom-designed banana plugs included
- (1) RCA analog subwoofer output
- (2) RCA analog inputs for left and right channels
