Description

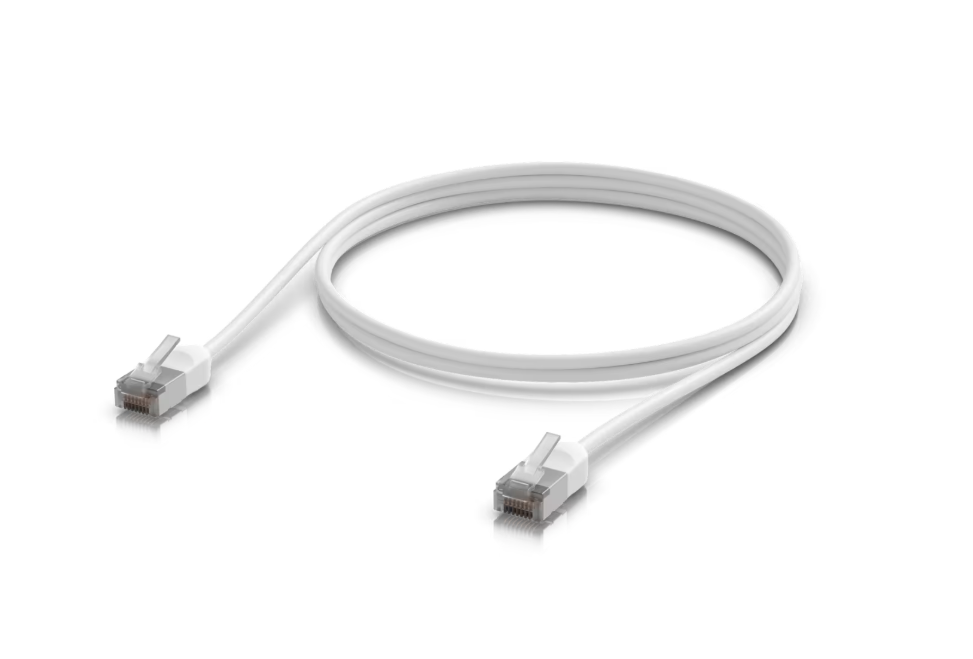

Ubiquiti UniFi Premium Patch Cable, Outdoor
Product Details
Ultra-thin, rugged, shielded outdoor patch cable, designed and optimized to perform in the harshest environments for 10 GbE networking.
Specifications
Overview
Available Lengths: End-to-end: 1, 2, 3, 5, 8, 12, 15 m (3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft)
Connector: (2) Frosted booted and shielding RJ45
Operating Environment: Outdoor
UV Resistance: ISO4892-2
Flame Rating: VW-1 (UL1581)
Supported PoE Type: Up to PoE+++
Cable
Jacket Diameter: 1-8 m: 3.5 mm (0.14") 12-15 m: 3.9 mm (0.15")
Jacket Enclosure Material: Thermoplastic elastomer (TPE)
Jacket Color: White
Shielding Type: F/UTP
Bend Radius: 1-8 m: 28 mm (1.1") 12-15 m: 31 mm (1.2")
Standards: TIA/EIA-568-B.2 ISO/IEC 11801
Installation Temperature: -20 to 60°C (-4 to 140°F)
Ambient Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Operating Temperature: -20 to 60°C (-4 to 140°F)
Features
- Shielded RJ45
- Insulated, weatherproof jacket
- Internal foil shielding and drain wire for increased ESD damage protection
- — 3.5 mm outer diameter for 1-8 m lengths
— 3.9 mm outer diameter for 12-15 m lengths - Length: 1 to 15 m
