Description

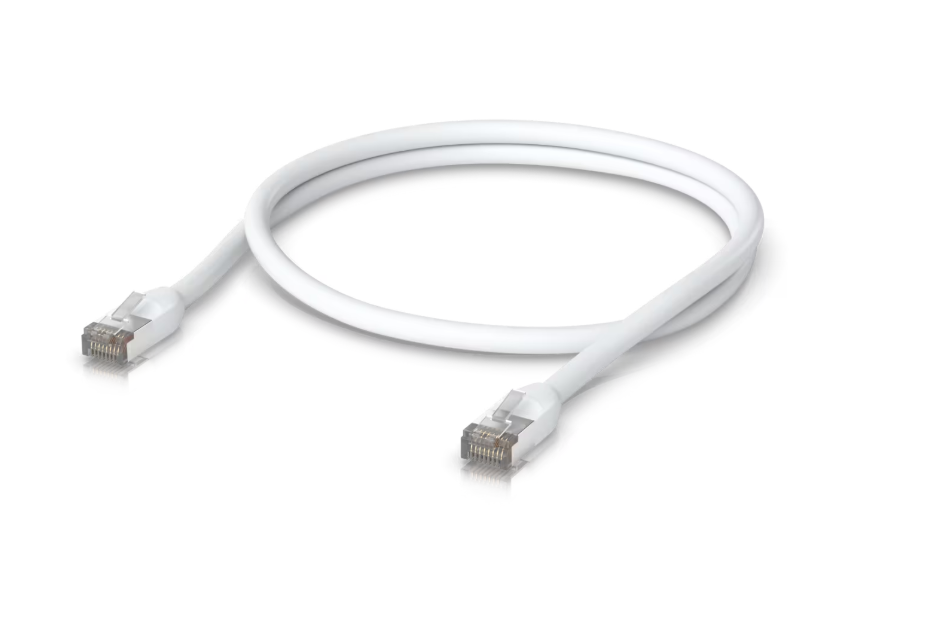

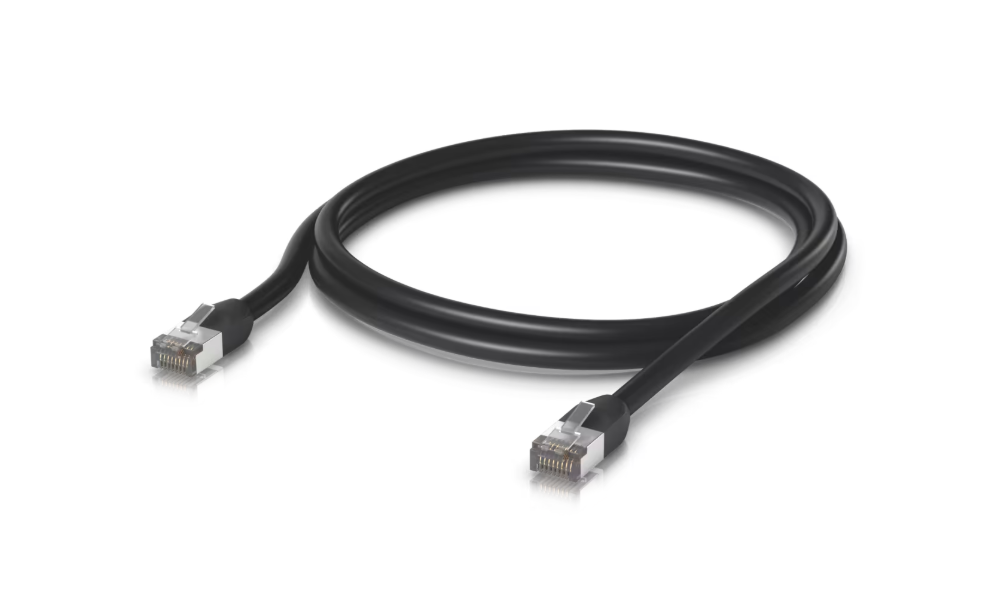

Ubiquiti UniFi Patch Cable, Outdoor
Product Details
Rugged, outdoor patch cable designed to function in the harshest environments.
Specifications
Overview
Available Lengths: 1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)
Type: Category 5e
UV Resistance: ASTM G 151/154
Flame Rating: VW-1 (UL1581)
Shielding Type: STP
Conductor Type: Stranded copper
Conductor Wire Gauge: 24 AWG
Color: Black
Weight: 60, 90, 125, 200, 315 g (2.1, 3.2, 4.4, 7.1, 11.1 oz)
Cable
Jacket Diameter: 6 mm (0.24")
Jacket Material: Thermoplastic elastomer (TPE)
Bend Radius: Min. 24 mm (0.94")
Anti-Crosstalk Divider: —
Standards: TIA/EIA-568-B.2 ISO/IEC 11801
Installation Temperature: -20 to 60°C (-4 to 140°F)
Ambient Storage Temperature: -30 to 75°C (-22 to 167°F)
Ambient Operating Temperature: -40 to 80°C (-40 to 176°F)
Features
- Shielded RJ45
- Insulated, weatherproof jacket
- Internal foil shielding and drain wire for increased ESD damage protection
- Cable length: 1 to 8 m
