Description
Ubiquiti UNAS-Pro UNAS Pro 2U Rack-Mount NAS
Product Details

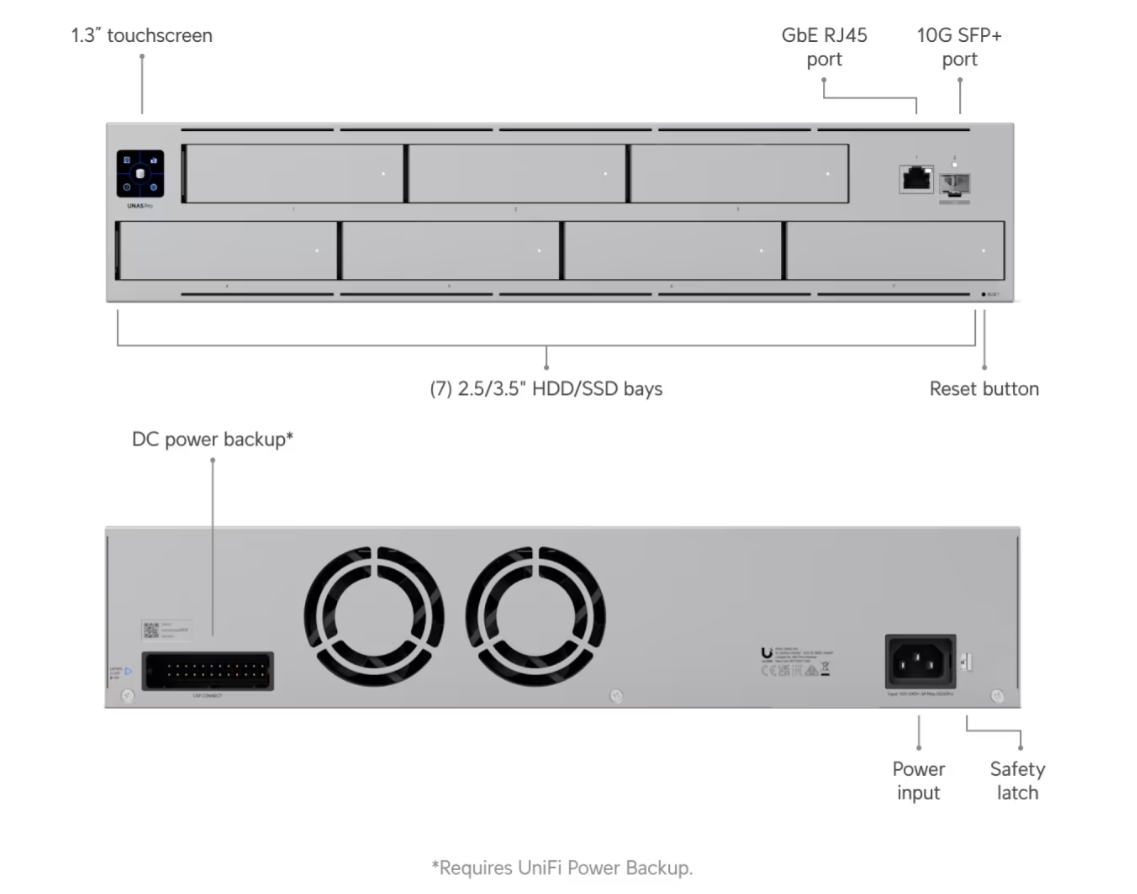

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
Specifications
Overview
Dimensions: 442.4 x 325 x 87.4 mm (17.4 x 12.8 x 3.4")
Storage Capacity: (7) 3.5" drive bays
Networking Interface: (1) 10G SFP+ (10G/1G) (1) GbE RJ45 (1G/100M/10M)
Power Redundancy: ✓
Form Factor: Rack mount (2U)
Hard Drive Capacity: (7) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives: 135W
Max. Power Consumption: 160W
Power Method: (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A
Power Supply: AC/DC, internal, 200W
Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
Memory: 8 GB
Management: Ethernet
RF Interface: Bluetooth 4.1
Display: 1.3" touchscreen
Weight: Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
LEDs
Ethernet: ✓
SFP+: ✓
HDD: ✓
RPS: ✓
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: FCC, CE, IC
Application Requirements
UniFi Drive: Version 1.16.0 and later
Features
- (7) 2.5/3.5 HDD / SSD support
- (1) 10G SFP+ uplink and (1) GbE RJ45 port
- Data protection with RAID storage technology
- UniFi Power Backup ready
- 1.3"" touchscreen for management
