Ubiquiti UMR-Industrial Mobile Router Industrial
Product Details
Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.
Specifications
Overview

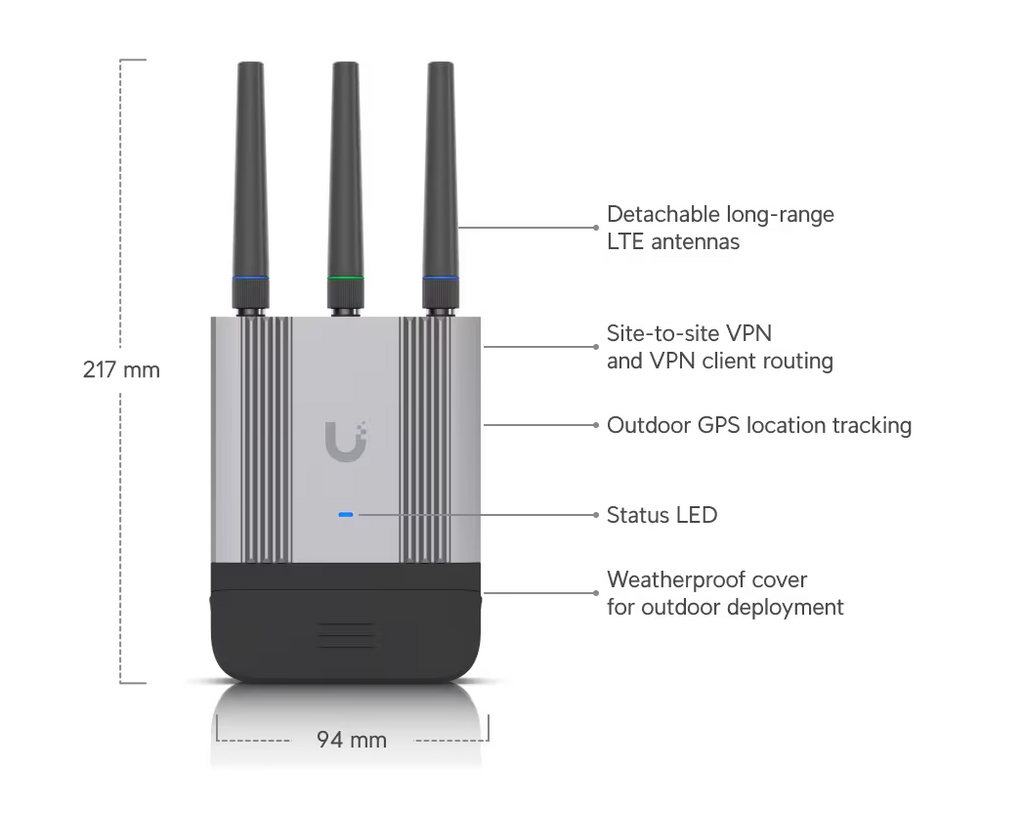

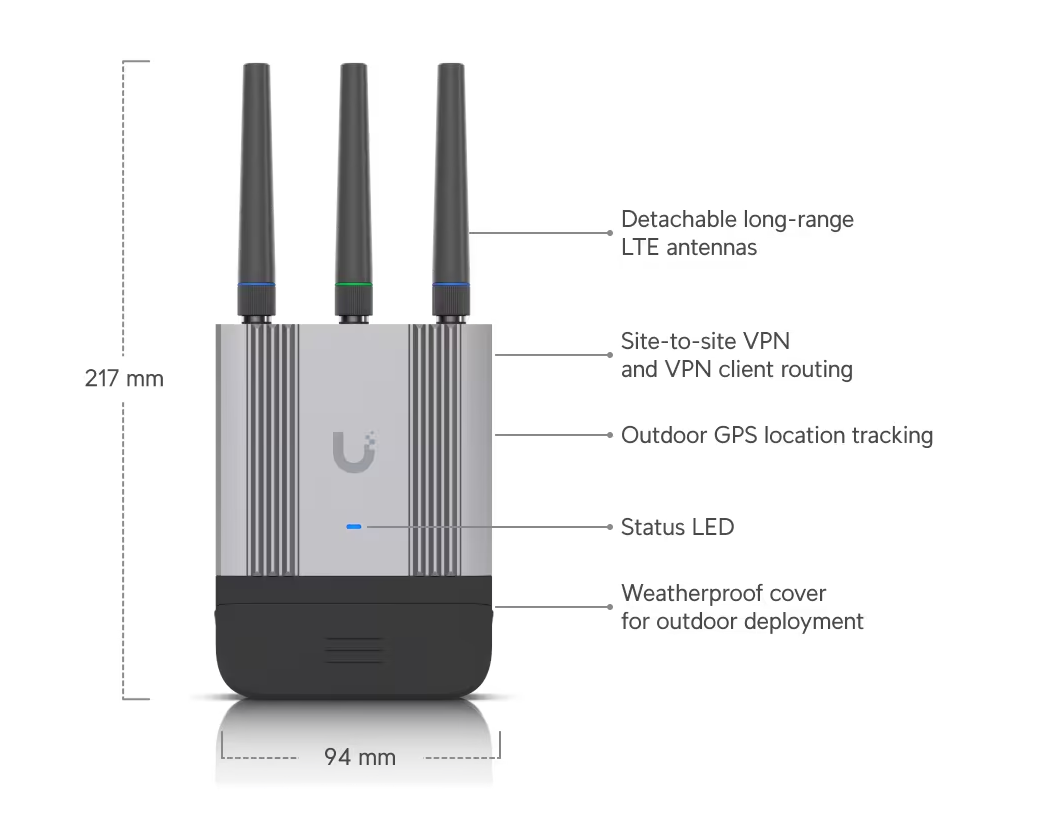

Dimensions: Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3") With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3") With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
Networking Interface: (2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4
SIM: Nano SIM
LTE Bands: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
PoE Interface: (1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch)
Mounting: DIN rail, Wall, Pole (Mounts Included)
Weatherproofing: IP66
Weight: Device: 360 g (12.7 oz) Device with outdoor cover: 395 g (13.9 oz) DIN rail/wall mounts: 25 g (0.9 oz)
Enclosure Material: Polycarbonate, aluminum
Mount Material: Wall, Pole, DIN Rail Mount: Polycarbonate
Pole Mount Diameter: 1–2" on pipe outer diameter
Wind Loading: 38.8 N at 200 km/h (8.7 lbf at 125 mph)
WAN
Priority & Fallback: ✓
Cellular: ✓
WiFi: ✓
Ethernet: ✓
LTE Passthrough mode: ✓
Ethernet Bridge Mode: ✓
VPN Client
OpenVPN: ✓
WireGuard: ✓
Site-to-Site VPN
IPsec: ✓
WireGuard: ✓
WiFi Standard: WiFi 4
Port Forwarding: ✓
Firewall: ✓
Static Routes: ✓
Supported Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)
Management: Ethernet WiFi
LTE Throughput Speed: Download 150 Mbps / Upload 50 Mbps
GPS: ✓
Antennas
Ports: (1) Mobile 1: SMA female (1Tx/1Rx) (1) Mobile 2: SMA female (1Rx) (1) GPS: SMA female (2) WiFi: RP-SMA female
Type: (2) External LTE antenna (2) External WiFi (1) External GPS
Max. TX Power: 22 dBm
WiFi MIMO: 2 x 2
Max. Power Consumption: 12.5W
Power Method: PoE+ (48—54V DC) USB Type-C (5V DC) 4-pin ATX DC (9—30V DC)
Power Supply: USB Type-C, 5V DC, 3A (Adapter included)
Buttons: (1) Factory-reset
Ambient Operating Temperature: -40 to 70° C (-40 to 158° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
Features
- Site-to-site VPN and VPN client routing
- (2) GbE ports with (1) PoE output
- Powered using PoE, USB Type-C, or 4-pin DC power socket
- Outdoor GPS location tracking
- Flexible wall, pole, and DIN rail mounting
