Description
Product Details
Easy-to-use hub for viewing Protect camera feeds on an HDMI display.
- View UniFi Protect cameras on an HDMI display
- Display up to 16 IP cameras simultaneously

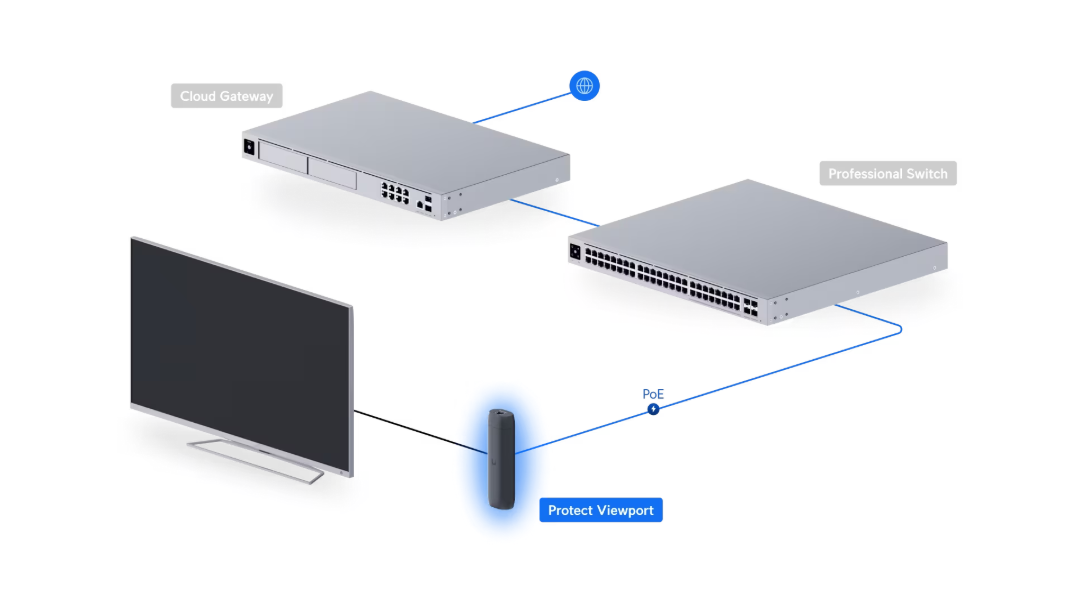

- Easy setup with UniFi Protect System
- Powered by Power over Ethernet up to 1 Gbps

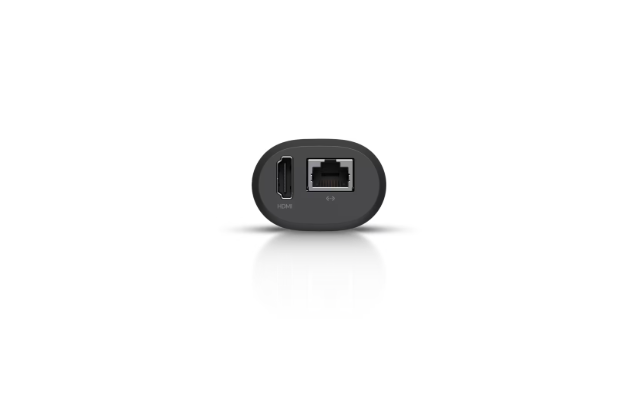

- HDMI video output up to 4K @ 30 fps
Specifications
|
|
MECHANICAL
|
|

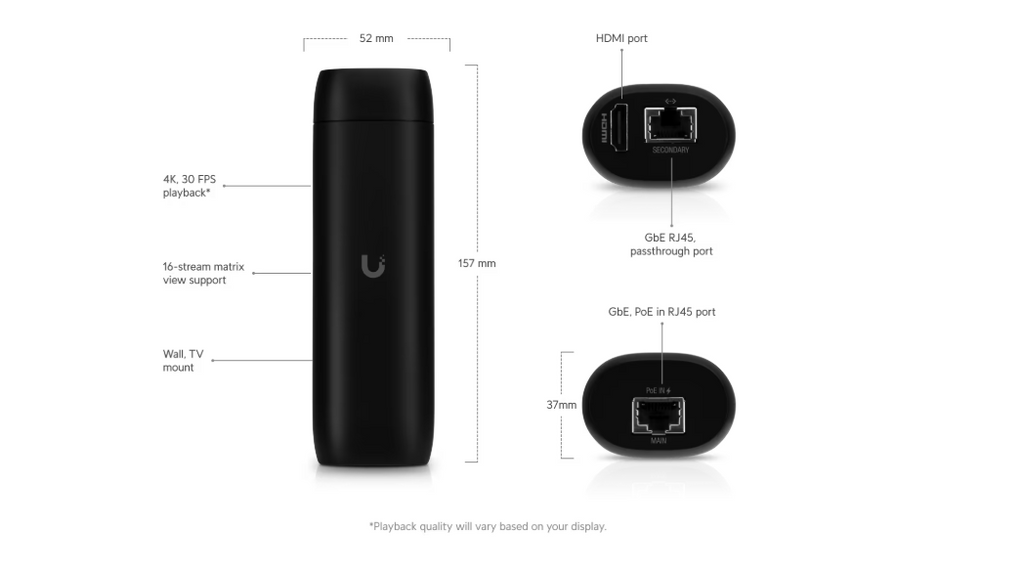

Dimensions |
157 x 52 x 37 mm (6.2 x 2.1 x 1.5") |
|
Weight |
Without mount: 230 g (8.1 oz) With TV mount: 252 g (8.9 oz) |
|
Enclosure Material |
Polycarbonate |
|
Mount Material |
Polycarbonate |
|
|
HARDWARE |
|
Processor |
Octa-core ARM® |
|
Memory |
4 GB low power DDR4X |
|
Networking interface |

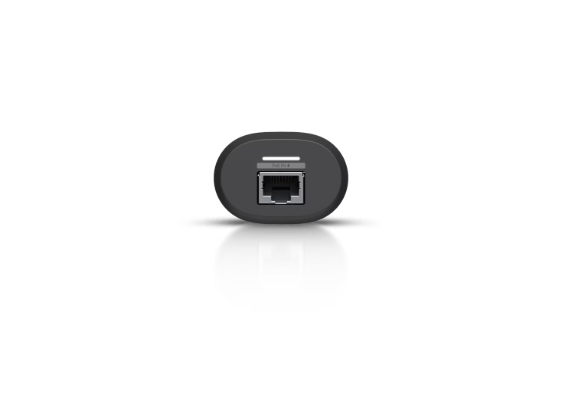

(1) GbE RJ45 port |
|
Power method |
PoE |
|
Max. power consumption |
9.5W |
|
ESD/EMP protection |
Air: ± 8kV, contact: ± 4kV |
|
Bluetooth |
5.0 |
|
Antennas |
Bluetooth |
|
Antenna gain |
2 dB |
|
Button |
Factory-reset |
|
Ambient operating temperature |
0 to 40° C (32 to 104° F) |
|
Ambient operating humidity |
20 to 80% noncondensing |
|
Certifications |
FCC, IC, CE |
|
NDAA Compliant |
Yes |
|
|
SOFTWARE
|
|
Web application |
UniFi Protect |
|
Mobile app |
UniFi Protect iOS™ and Android™ |
