Description

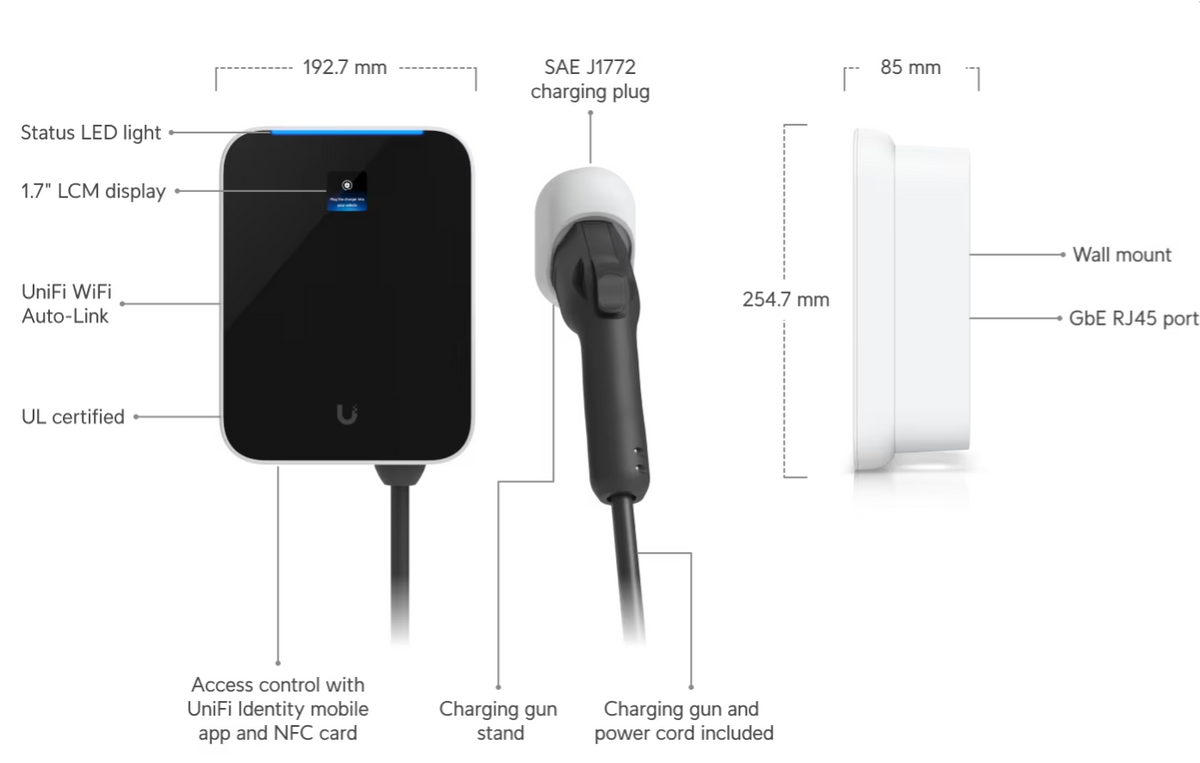

Ubiquiti UC-EV-Station-Lite EV Charging Station Lite
Product Details
Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment.
Specifications
Overview
Dimensions: 254.7 x 192.7 x 85 mm (10 x 7.6 x 3.3”)
Mounting: Wall Mount or Stand
Power Input: 200–240V ~ 50A, 50/60Hz, 1φ
Power Output: 200–240V ~ 50A, 50/60Hz, 1φ
Weatherproofing: Type 3R
Weight: 5.9 kg (13 lb)
Enclosure Material: Polycarbonate
Charging Cable Length: 7 m (23 ft)
Display
Size: 1.7" LCM display
Resolution: 240 x 240 (1:1)
Processor: Dual-core Arm® Cortex®-A53, 1 GHz
Connectivity: (1) GbE RJ45 port (1) USB-C port Bluetooth® 5.0 WiFi
Circuit Rating
Max. load: 70A: 50A 60A: 48A 50A: 40A 40A: 32A 30A: 24A 20A: 16A
Plug-in: 70A: No 60A: No 50A: Yes 40A: Yes 30A: Yes 20A: Yes
Hardwired: 70A: Yes 60A: Yes 50A: Yes 40A: Yes 30A: Yes 20A: Yes
Ambient Operating Humidity: 5 to 90% noncondensing
Ambient Operating Temperature: -40 to 50° C (-40 to 122° F)
NDAA Compliant: ✓
Certifications: FCC, IC, UL
Management Application: UniFi Connect: Version 3.14.4 and later. UniFi Connect iOS™ and Android™: Version 2.18 and later.
Features
- 11 kW max charging output with SAE J1772 charging plug
- 1.7 LCM display
- Access control with UniFi Identity mobile app and NFC card
- Connected with UniFi WiFi Auto-Link or Ethernet
- UL certified
