Description

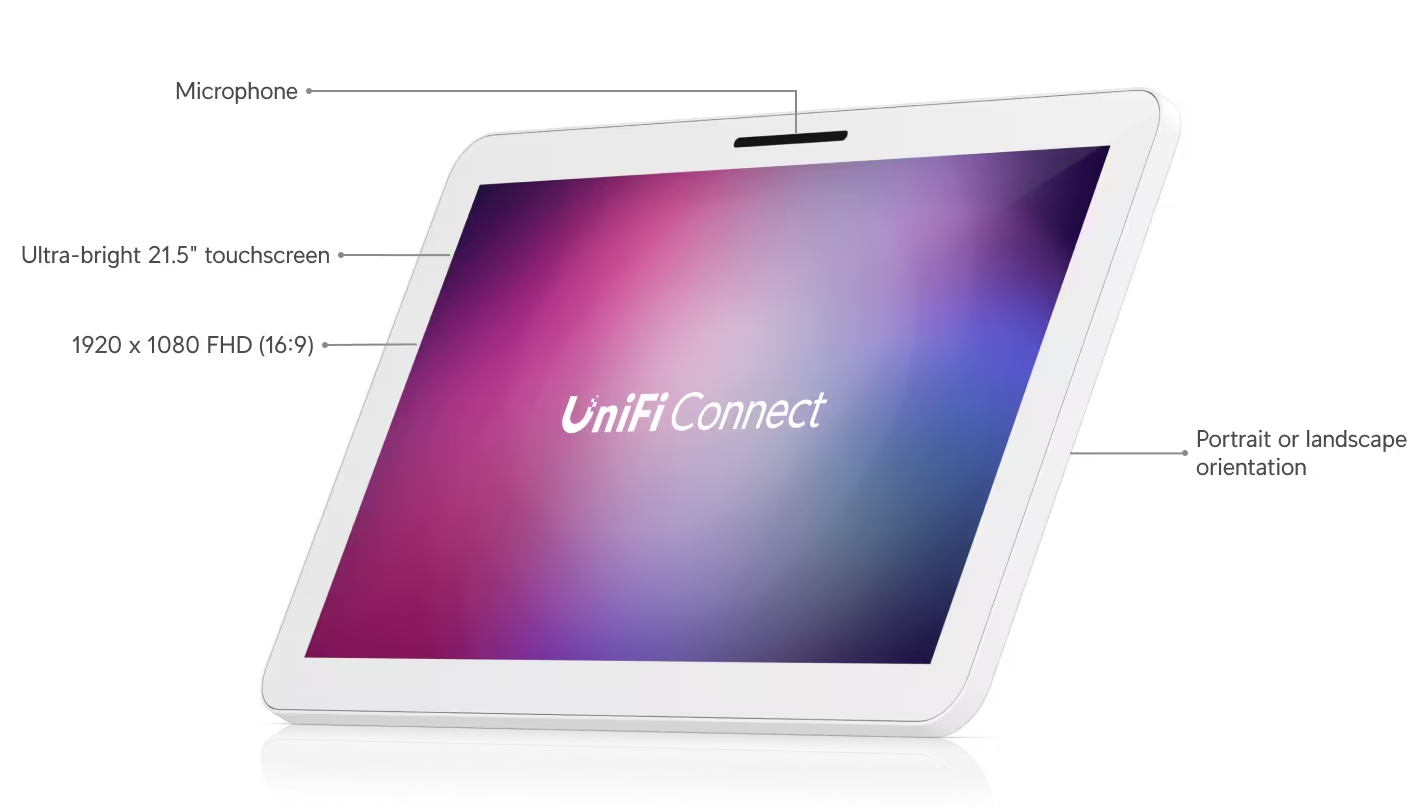

Ubiquiti UC-Display Connect Display
21.5" Full HD PoE++ touchscreen designed for interactive digital signage applications.
Specifications
Overview
Dimensions: 538.3 x 330 x 37 mm (21.2 x 13 x 1.5")
Mounting: VESA mount adapter (Included) Table stand, surface, arm, flush mount (Optional)
Touch Screen Technology: Capacitive multi-touch
UniFi Application Suite
Connect: ✓
Weight: 4.9 kg (10.8 lb)
Enclosure Material: Polycarbonate, aluminum
Screen Orientation: Portrait/Landscape
Display
Resolution: 1920 x 1080 FHD (16:9)
Size: 546 mm (21.5") diagonal
Brightness: 250 nits (Typical)
Processor: Octa-core ARM® Cortex®-A53 at 2.2 GHz
Memory: Storage: 32 GB RAM: 3 GB
Power Method: PoE++
Max. Power Consumption: 27W
Connectivity: (1) GbE RJ45 port (1) USB-C port (Reserved feature for future function update) Bluetooth® 4.2
Microphone: ✓
Speaker: ✓
Buttons: (1) Factory Reset
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 20 to 90% noncondensing
Certifications: CE, FCC, IC
NDAA Compliant: ✓
Management Application
UniFi Connect Web:Version 2.1.14 and later
UniFi Connect iOS™ and Android™: Version 1.0.0 and later
