Ubiquiti UC-Cast-Pro Display Cast Pro
Product Details
Managed digital signage player for HDMI displays with media content playback, web mode, and USB-C peripheral support.
Specifications
Overview

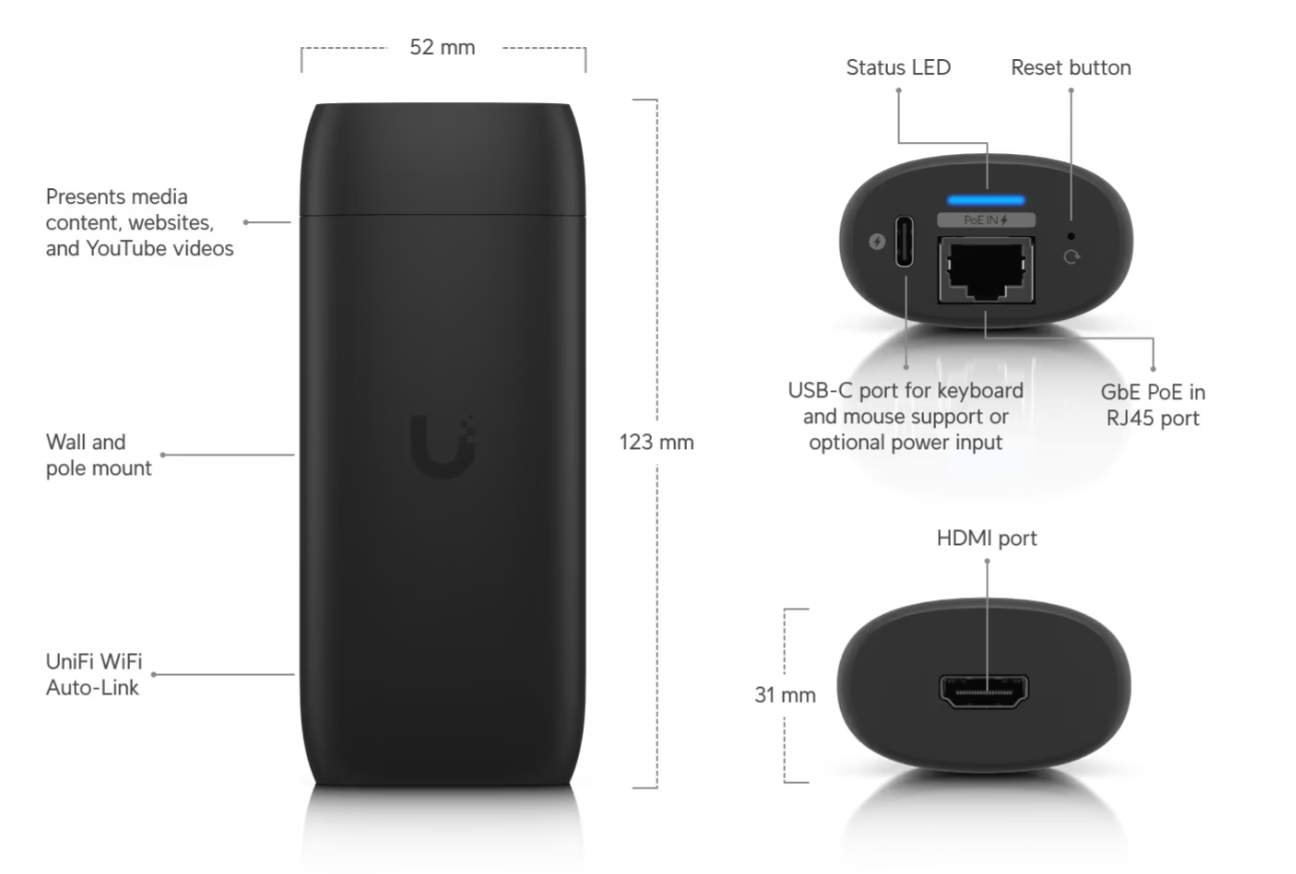

Dimensions: Without mount: 123 x 52 x 31 mm (3.5 x 2.1 x 1.2") With mount: 125.1 x 56.3 x 40.8 mm (3.6 x 2.1 x 1.4")
Display Output: (1) HDMI port
Video Content Support: 480p / 720p / 1080p / 4k
UniFi Application Suite
Connect: ✓
Weight: Without mount: 240 g (5.8 oz) With mount: 260 g (9.2 oz)
Pole Mount Diameter: 1—2" (25—50 mm)
Processor: Octa-core CPU including (2) ARM® Cortex®-A78 and (6) ARM® Cortex®-A55 Integrated Mali-G57 GPU
Memory: Storage: 32 GB RAM: 8 GB
Power Method: (1) GbE RJ45 PoE 48V DC, 0.35A (1) USB Type-C 5V DC, 3A UL 60950-1/62368-1 LPS/PS2 PSU
Connectivity
WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz
WiFi Standards
802.11 a/b/g/n/ac/ax
Buttons: (1) Factory-reset
LEDs
System: White/blue (Learn More )
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 20 to 90% noncondensing
Certifications: CE, FCC, IC, Wi-Fi CERTIFIED UL 62368-1, CSA C22.2 No. 62368-1
NDAA Compliant: ✓
Management Application
UniFi Connect Web: Version 3.14.6 and later
UniFi Connect iOS™ and Android™: Version 2.18.1 and later
Features
- Presents media content up to 4K resolution, websites, and YouTube videos to any HDMI-compatible display
- Create multimedia playlists and dynamic digital signage layouts with UniFi Connect
- Automatically power on/off display with HDMI CEC
- Keyboard and mouse control via USB-C
- PoE in or USB-C adapter power
