Description
Ubiquiti UC-Cast-Lite Display Cast Lite
Product Details
Digital signage player designed for media playback on HDMI displays.
Specifications
Overview

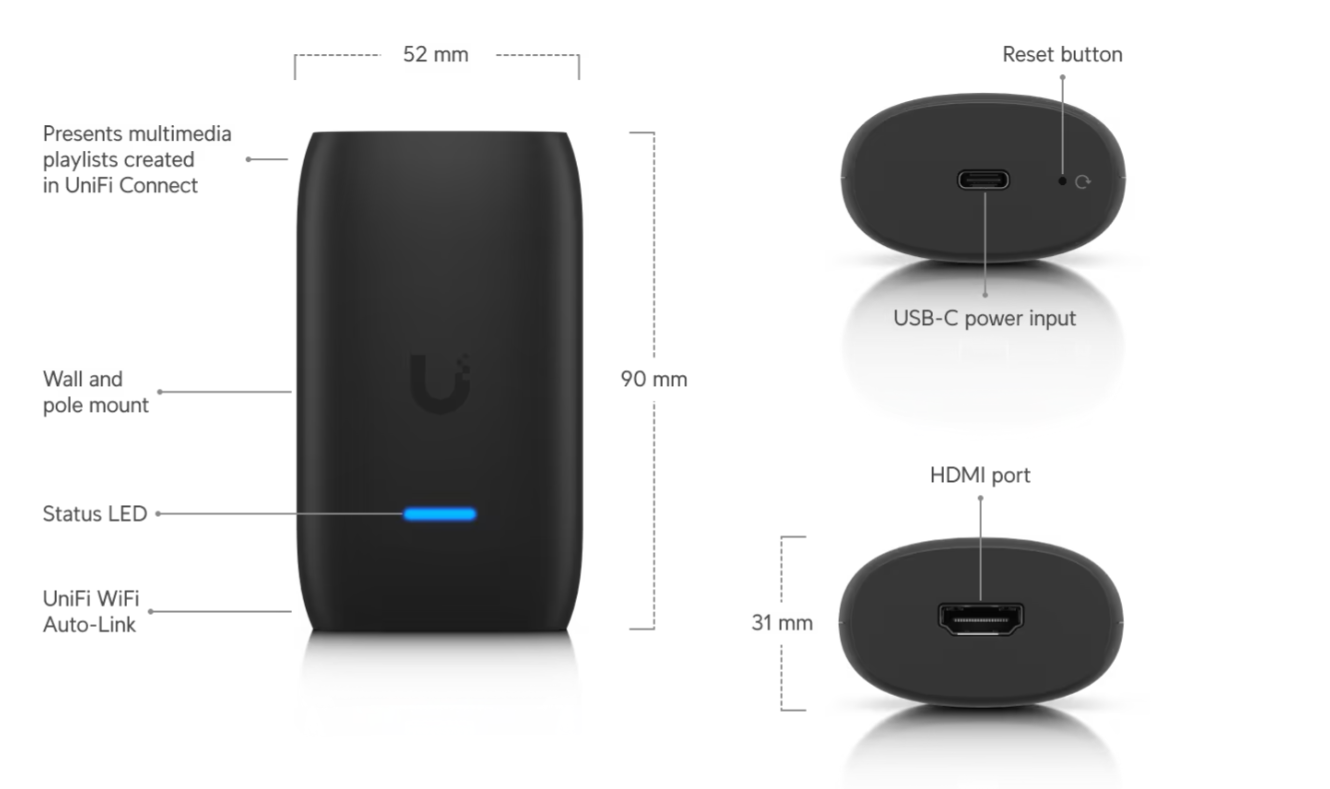

Dimensions: Without mount: 90 x 52 x 31 mm (3.5 x 2.1 x 1.2") With mount: 92.1 x 56.3 x 40.8 mm (3.6 x 2.1 x 1.4")
Display Output: (1) HDMI port
Video Content Support: 480p / 720p / 1080p
UniFi Application Suite
Connect: ✓
Weight: Without mount: 160 g (5.6 oz) With mount: 180 g (6.3 oz)
Pole Mount Diameter: 1~2" (25–50 mm)
Processor: Quad-Core Arm® Cortex®-A55, 1.9 GHz
Memory: Storage: 16 GB RAM: 2 GB
Power Method: (1) USB Type-C 5V DC, 1A
Max. Power Consumption: 5W
Connectivity: WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz
WiFi Standards: 802.11 a/b/g/n/ac/ax
Buttons: (1) Factory-reset
LEDs
System: White/blue (Learn More )
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 20 to 90% noncondensing
Certifications: CE, FCC, IC, Wi-Fi CERTIFIED UL 62368-1, CSA C22.2 No. 62368-1
NDAA Compliant: ✓
Management Application
UniFi Connect Web: Version 3.17.0 and later
UniFi Connect iOS™ and Android™: Version 2.26.0 and later
Features
- Supports media content playback up to 1080p resolution on any HDMI-compatible display
- Automatically powers the display on or off with HDMI CEC
- Powered by a USB-C adapter
- Connects easily with UniFi WiFi Auto-Link
