Description

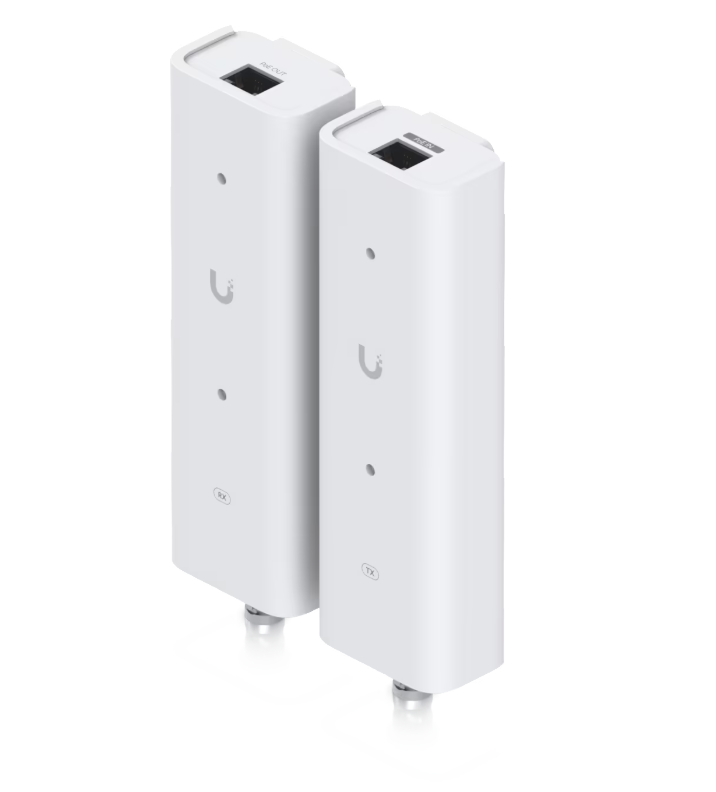

Ubiquiti UACC-Retrofit-PoE-2Wire PoE Over 2-Wire Retrofit Extender
Product Details
A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.
Specifications
| Mechanical | ||||||
|---|---|---|---|---|---|---|
| Dimensions | PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2") |
|||||
| Weight | PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz) |
|||||
| Enclosure material | Polycarbonate | |||||
| Mounting material | Polycarbonate | |||||
| Coaxial connector | BNC female | |||||
| Hardware | ||||||
| Networking interface | (1) 10/100 MbE (1) Homeplug AV |
|||||
| Power method | PoE++ | |||||
| PoE input | (1) PoE++, 50V DC, 1.2A | |||||
| PoE output | (1) PoE+, 48V DC, 0.6A | |||||
| Max. power consumption | 3W (Without PoE output) | |||||
| ESD/EMP protection | Air: ±8kV, contact: ±4kV | |||||
| Recommend max. cable length |
|
|||||
