Description

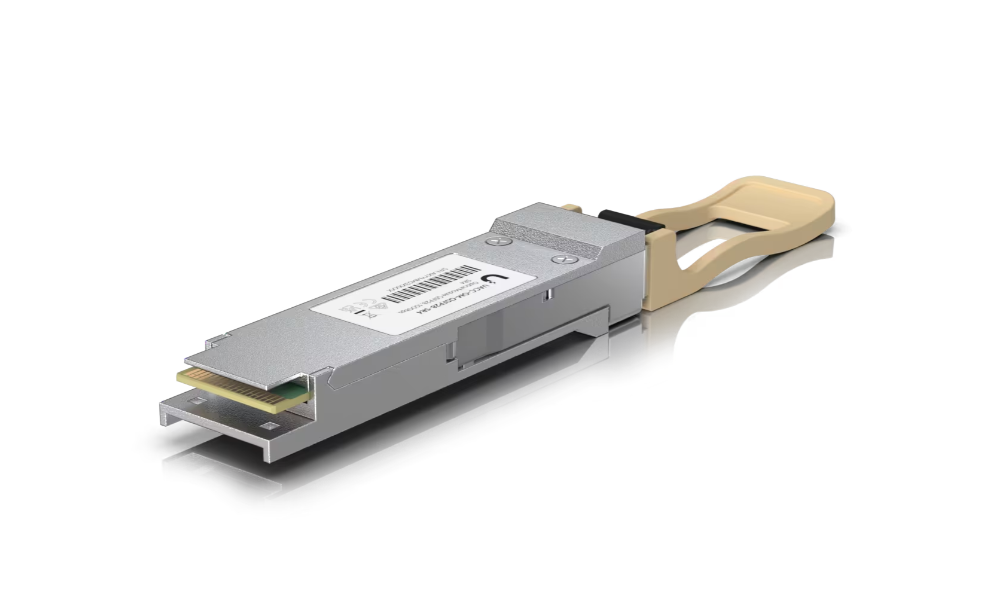

Ubiquiti UACC-OM-QSFP28-SR4 100G SR4 Multi-Mode Optical Module
Product Details
QSFP28 transceiver that supports 100G connections up to 100 m using multi-mode fiber with an MPO-12 Type B UPC connector.
Specifications
Overview
Type: (1) MPO 1x12
Supported Media: Multi-mode fiber
TX Wavelength: 850 nm
RX Wavelength: 850 nm
Max. Power Consumption: 2.5W
Supported Cable Distance: 100 m (328 ft)
Ambient Operating Temperature: 0 to 70° C (32 to 158° F)
Features
- Max data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- MPO-12 Type B UPC connector
- Supports multi-mode fiber connections up to 100 m*
