Description

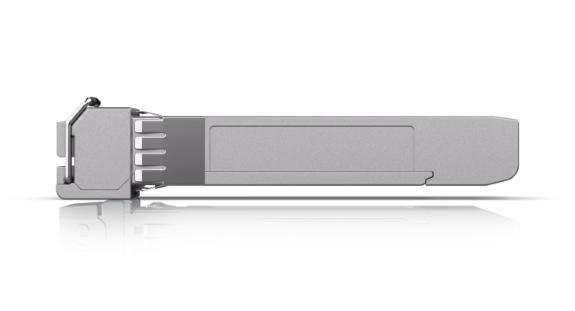

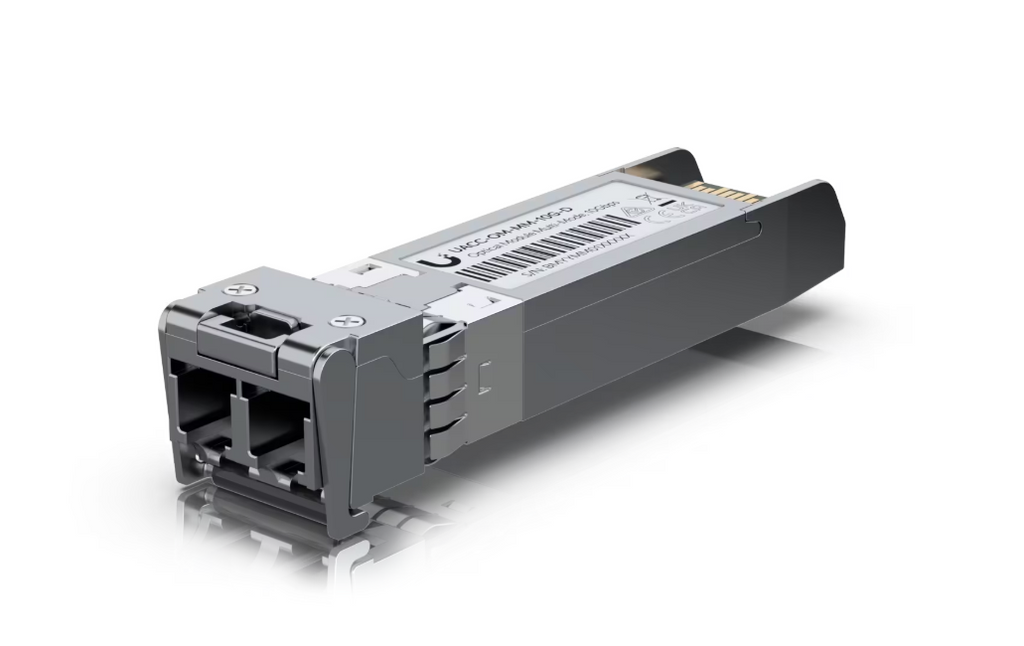

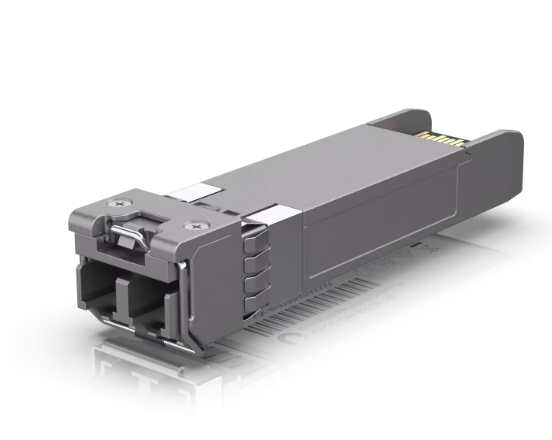

Ubiquiti UACC-OM-MM-10G-D 10G Multi-Mode Optical Module
SFP+ transceiver that supports 10G connections up to 300 m using multi-mode fiber with a duplex LC UPC connector.
Specifications
Overview
Type: (2) LC
Supported Media: Multi-Mode Fiber
TX Wavelength: Black latch: 850 nm
RX Wavelength: Black latch: 850 nm
Max. Power Consumption: 0.8W
Supported Cable Distance: 100 m (328 ft)
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Ambient Operating Temperature: 0 to 70° C (32 to 158° F)
Features
- Max data rate: 10 Gbps
- Compatible with SFP+ and SFP interfaces
- Duplex LC UPC connector
- Supports multi-mode fiber connections up to 300 m*
