Description

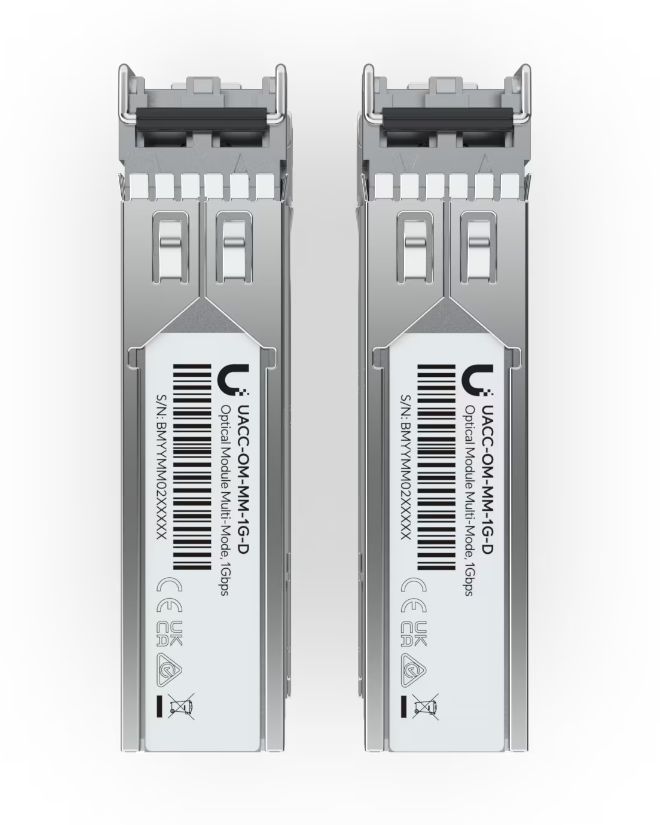

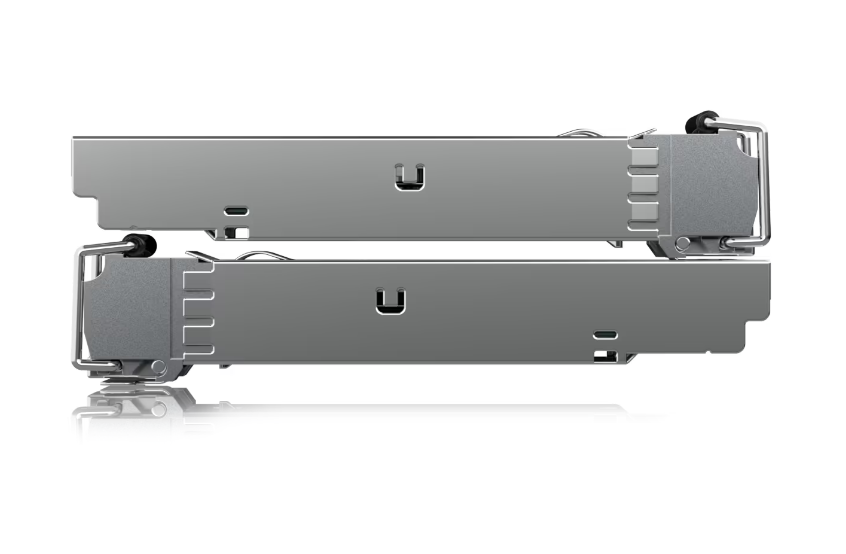

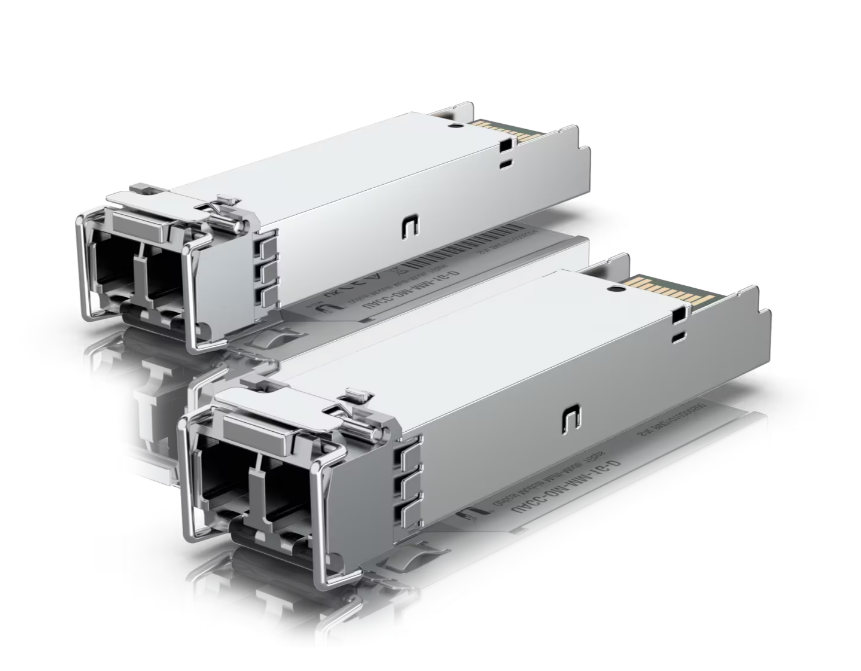

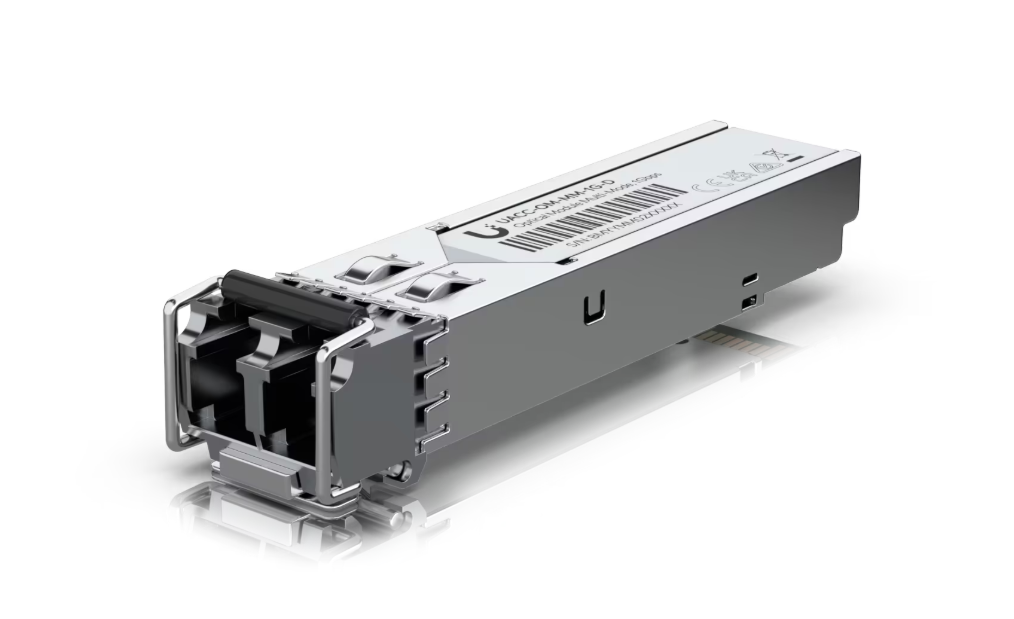

Ubiquiti UACC-OM-MM-1G-D 1G Multi-Mode Optical Module
Product Details
SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.
Specifications
Overview
Type: (2) LC
Supported Media: Multi-Mode Fiber
TX Wavelength: Black latch: 850 nm
RX Wavelength: Black latch: 850 nm
Max. Power Consumption: 0.66W
Supported Cable Distance: 550 m (1,804 ft)
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Pack Options: Single Unit 2-Pack 20-Pack
Ambient Operating Temperature: 0 to 70° C (32 to 158° F)
NDAA Compliant: ✓
Features
- Max data rate: 1 Gbps
- Compatible with SFP interfaces
- Duplex LC UPC connector
- Supports multi-mode fiber connections up to 550 m*
