Ubiquiti UACC-LRE Long Range Ethernet Repeater
Product Details
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
Specifications
Overview
Dimensions: 196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5")
Weight: 350 g (12.3 oz)
Enclosure Material: UV stabilized polycarbonate

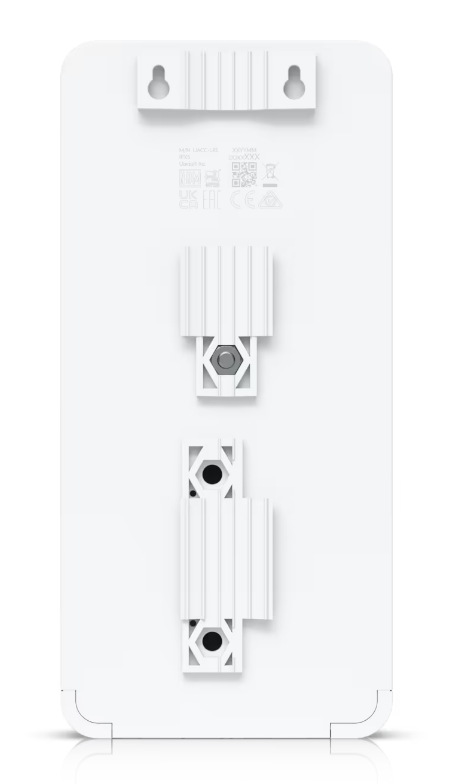

Mounting Material: Stainless steel
Weatherproofing: IPX5
Power Method: PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-)
Max. Power Consumption: 1.5W (Excluding PoE output)

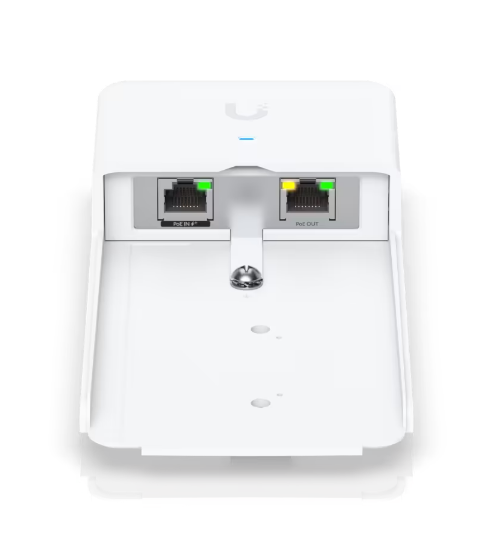

Networking Interface: (2) GbE RJ45 ports
PoE Interface: (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
Total Non-Blocking Line Rate: 2 Gbps
Switching Capacity: 4 Gbps
Forwarding Rate: 1.488 Mpps
Total Available PoE: 22.5W
Voltage Range PoE Mode: 37—57V DC
ESD/EMP Protection: Air/contact: ± 30kV
DC Sparkover Voltage: 90V at 100V/s
Max. Impulse Sparkover Voltage: 700V at 1kV/μs
Discharge Current: 10kA+
Max. MTU: 1,500 bytes
LEDs
System: Blue: power ON
Ethernet: Green: 1 Gbps Amber: 10/100 Mbps
PoE: Amber: passthrough PoE out
Ambient Operating Temperature: -40 to 80° C (-40 to 176° F)
Ambient Operating Humidity: 10 to 95% noncondensing
Features
- Extend PoE connections up to 1 km*
- (1) GbE RJ45 port for PoE/PoE+ input**
- (1) GbE RJ45 port for passthrough PoE output
- 10kA+ surge protection
- Works reliably in extreme temperatures (-40 to 80° C)
