Description

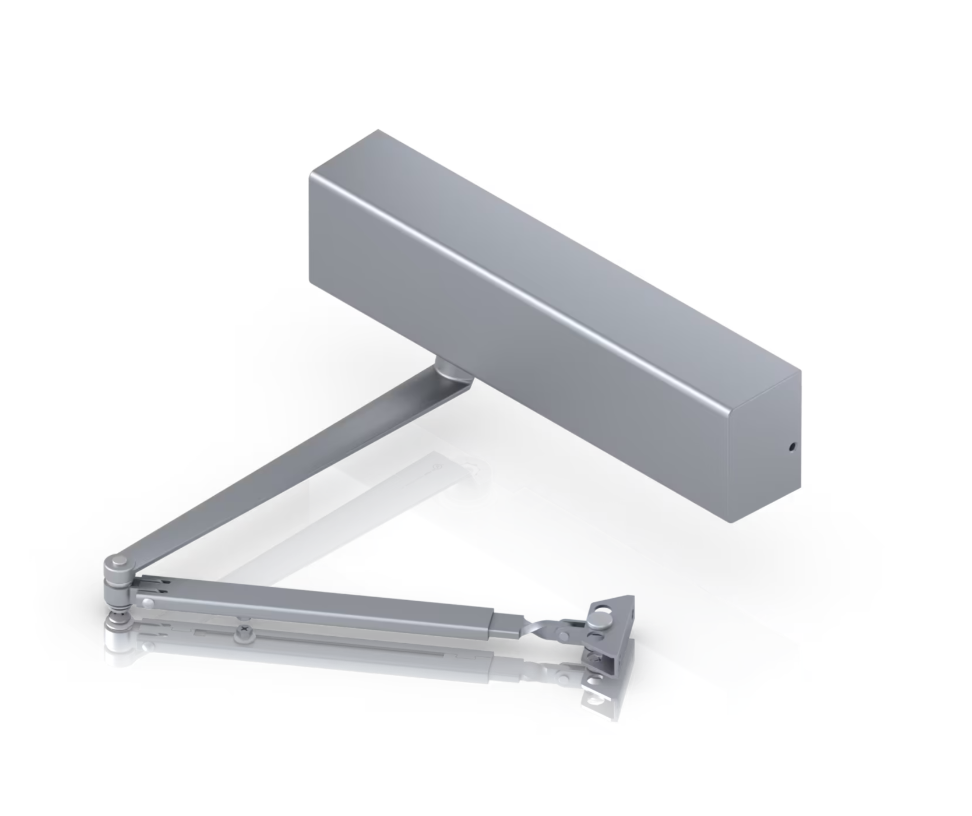

Ubiquiti UACC-DoorCloser Door Closer
A mechanical door closer that ensures controlled closure for safety and convenience.
Specifications
Mechanical
Dimensions: Lock body: 328 x 88.6 x 53.5 mm (12.9 x 3.5 x 2.1")
Weight: 3.3 kg (7.3 lb)
Max. Door Size
Standard Door/Top Jamb Mount
30”(762 mm): Size 1 Interior / Size 3 Exterior 36”(914 mm): Size 2 Interior / Size 4 Exterior 42”(1067 mm): Size 3 Interior / Size 5 Exterior 48”(1219 mm): Size 4 Interior / Size 6 Exterior
Parallel Arm Bracket Mount
30”(762 mm): Size 1 Interior / Size 3 Exterior 36”(914 mm): Size 2 Interior / Size 4 Exterior 42”(1067 mm): Size 3 Interior / Size 5 Exterior 48”(1219 mm): Size 4 Interior / —
Application Range
Standard door mount on the pull side Top jamb mount on the push side Parallel arm bracket mount on the push side (Size 1-5 only)
Power Size: 1-6
Certifications: UL 228, UL 10C, ANSI/BHMA A156.4-(2019) Grade1, ANSI A117.1 ADA
