Description
Product Details

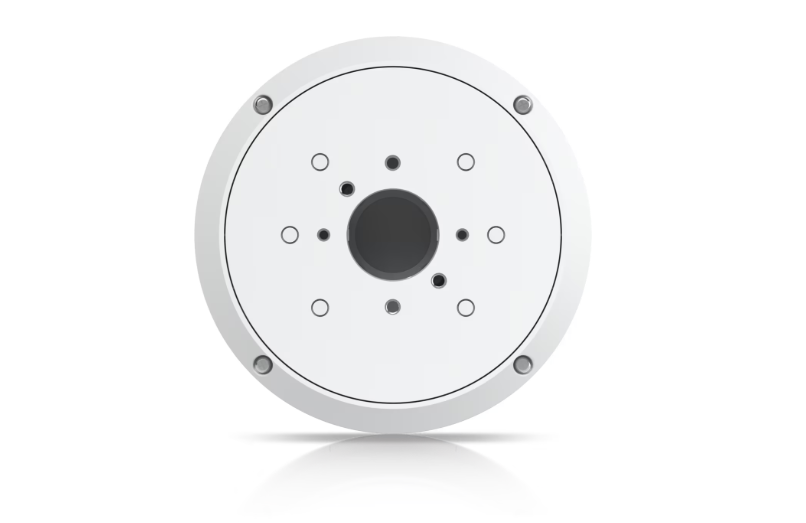

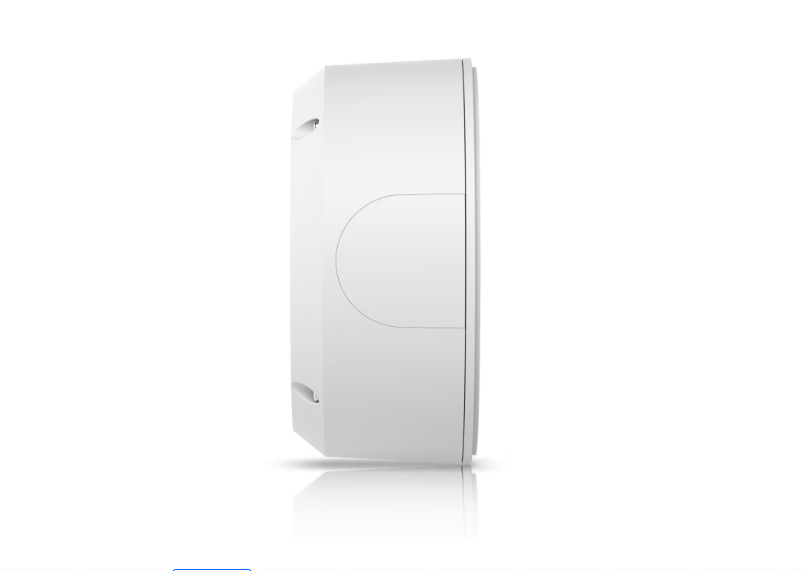

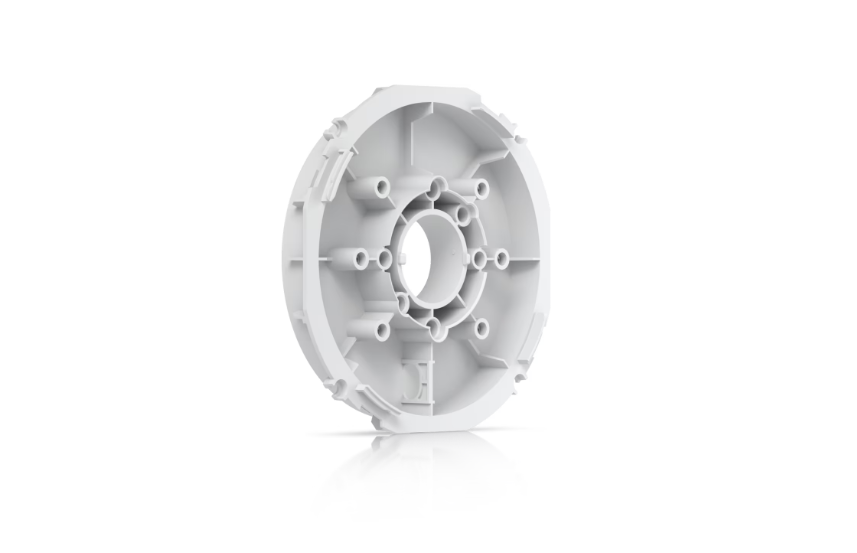

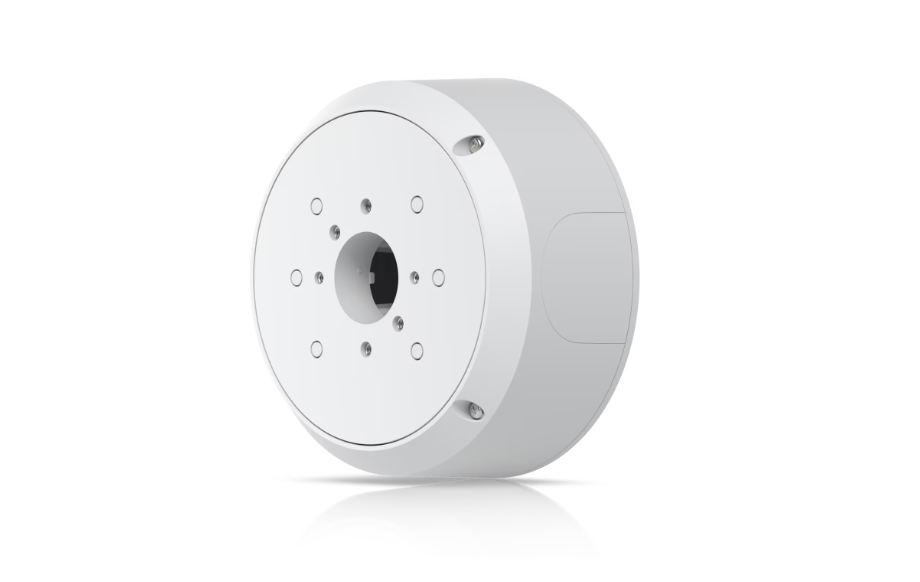

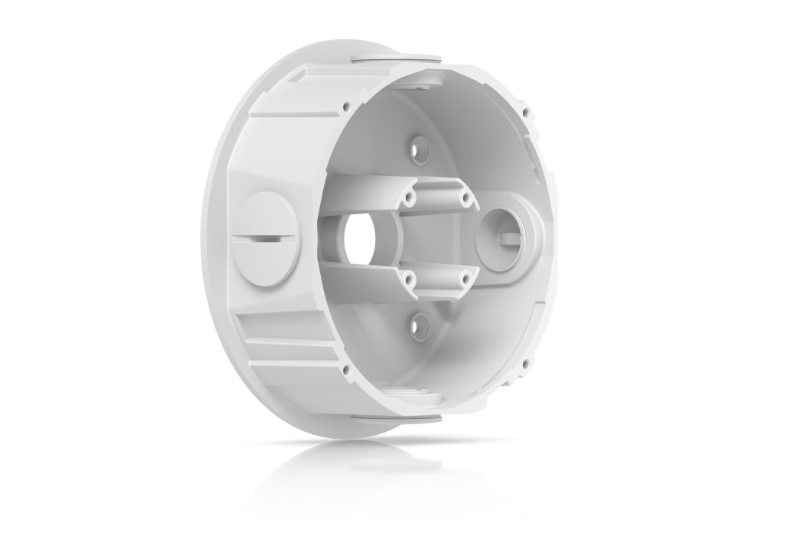

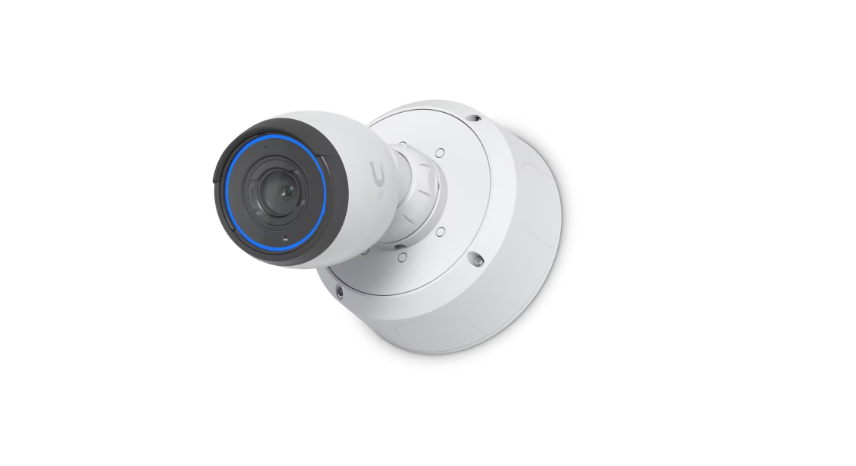

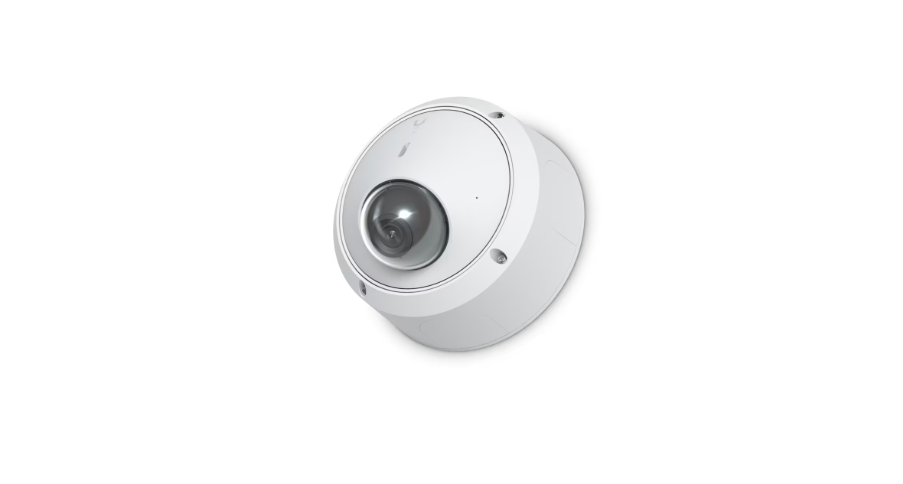

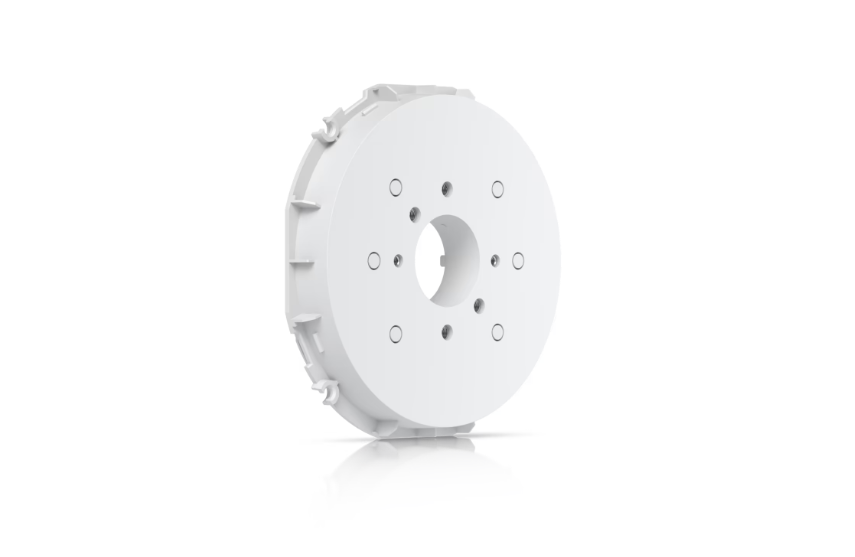

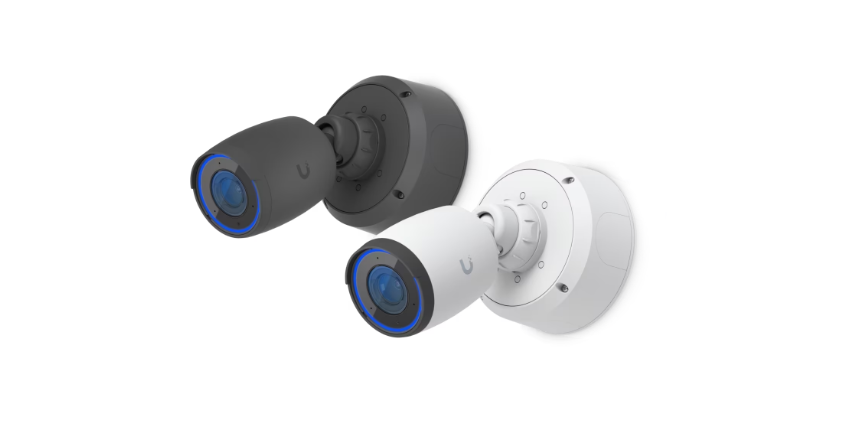

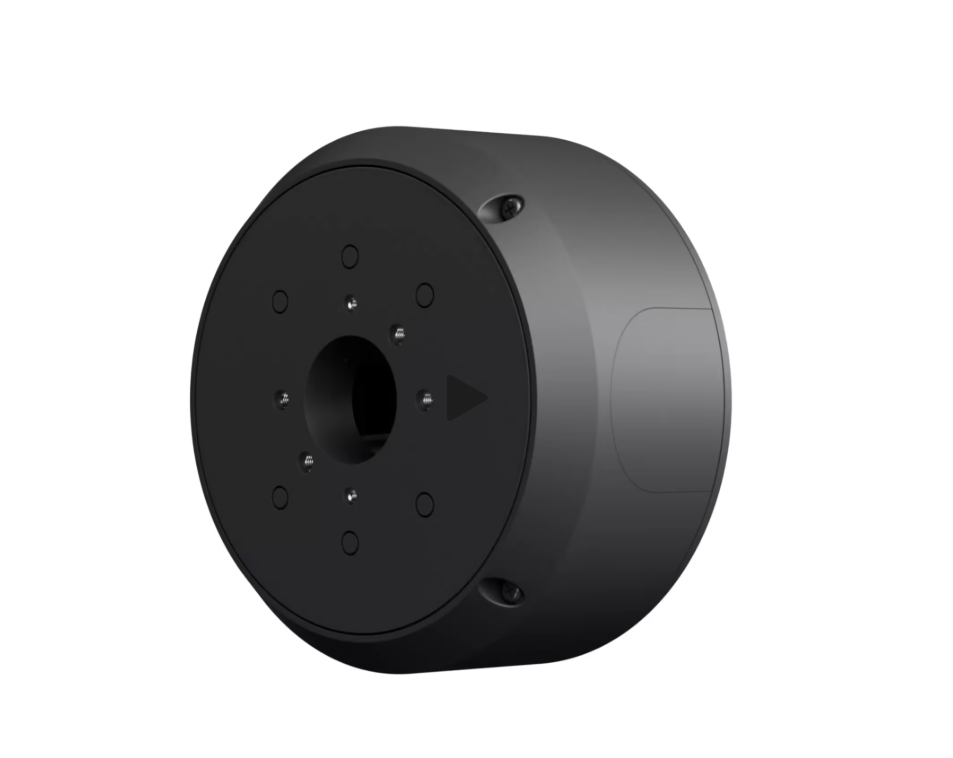

Tamper-resistant junction box for UniFi Bullet, Dome, and Turret cameras that enhances mounting durability, aesthetics, and ease of maintenance.
- Supports flat surface, pole and pendant mounting
- Includes side and rear 3/4 conduit entrances
Specifications
|
Dimensions |
140.4 x 59.7 mm (5.5 x 2.4") |
|
Pole Mount Diameter |
1.5–2" (38–50 mm) |
|
Weight |
Junction box: 470 g (16.6 oz) Mount Holder: 66 g (2.3 oz) Deco ring: 17g (0.6 oz) Pole mount: 62 g (2.2 oz) |
|
Enclosure Material |
Aluminum alloy, polycarbonate |
|
Mounting Material |
Aluminum alloy |
|
Threaded Outlets |
G3/4"
|
|
Compatibility |
UVC-AI-Bullet UVC-AI-PRO UVC-AI-DSLR UVC-AI-Dome UVC-AI-Turret UVC-G6-Bullet UVC-G6-Turret UVC-G5-Dome UVC-G5-Dome-Ultra UVC-G5-Turret-Ultra UVC-G5-Pro UVC-G5-Bullet UVC-G4-Pro UVC-G4-Bullet UVC-G4-Dome UVC-G3-Pro UVC-G3-Bullet |
