Ubiquiti UA-Ultra Access Ultra
Product Details
An access reader with a built-in hub for complete, single-door entry control from one device.
Specifications
Overview

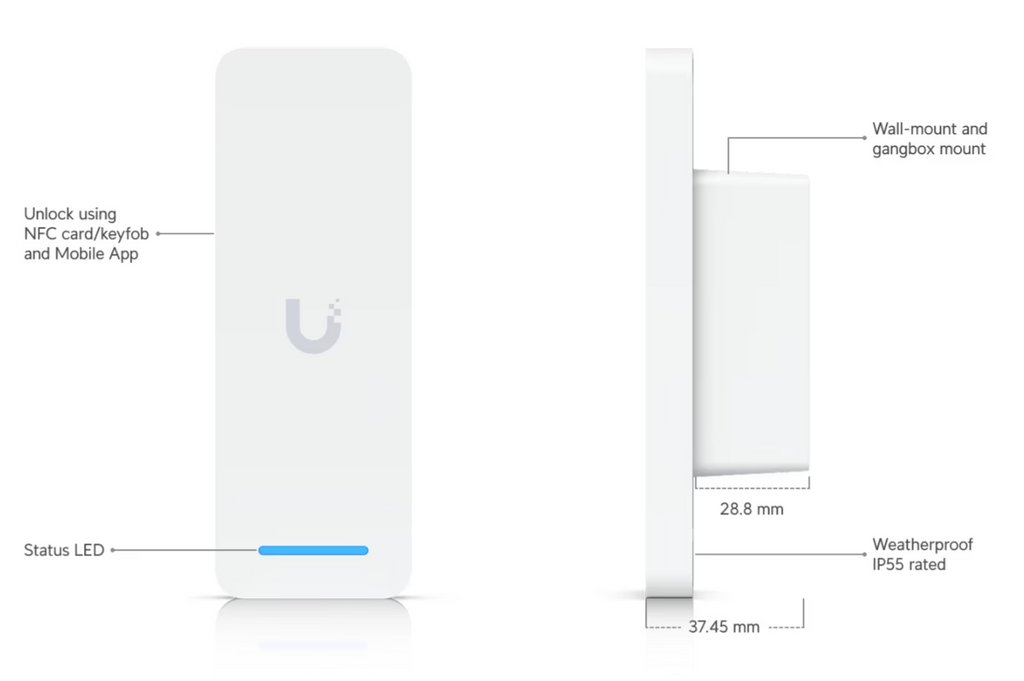

Dimensions: 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5")
NFC Card & Keyfob Access: ✓
Mobile Unlock: ✓
Maximum User Count: 3,000
NDAA Compliant: ✓
UL 294 Level: Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Tamper Switch: ✓
Weatherproofing: IP55
Weight: 140 g (4.9 oz)
Enclosure Material: Polycarbonate, aluminum alloy
Mount Material: Stainless steel
Mounting: Wall mount, gang box mount (Included) Junction box (Optional)
Indoor and Outdoor Use: Yes
Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity: 5 to 90% noncondensing
Networking Interface: (1) 10/100 MbE RJ45 port
Connectivity: BLE 4.2 Ethernet
Power Method: PoE+ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 18W
Supported Voltage Range: 44—57V DC
ESD/EMP Protection: Air: ±8kV, contact: ± 4kV
Powered Output Relay: Lock: 12V DC, 1A
Speaker: ✓
LEDs: R/G/B/W Learn More
Button: (1) Factory-reset
NFC Frequency: 13.56 Mhz
NFC Read Range: < 50 mm (1.95'')
NFC Technology: ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications: CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level: UA-Ultra, V01
Management Application: Access
Software Information: The software version can be checked at https://unifi.ui.com
Features
- (1) Lock terminal (12V/1A)
- (1) Exit request input
- Unlock using an NFC card or UniFi Identity mobile app
- IP55 weather resistance (-30 to 40° C)
