Ubiquiti UA-Intercom-Viewer Access Intercom Viewer
Product Details

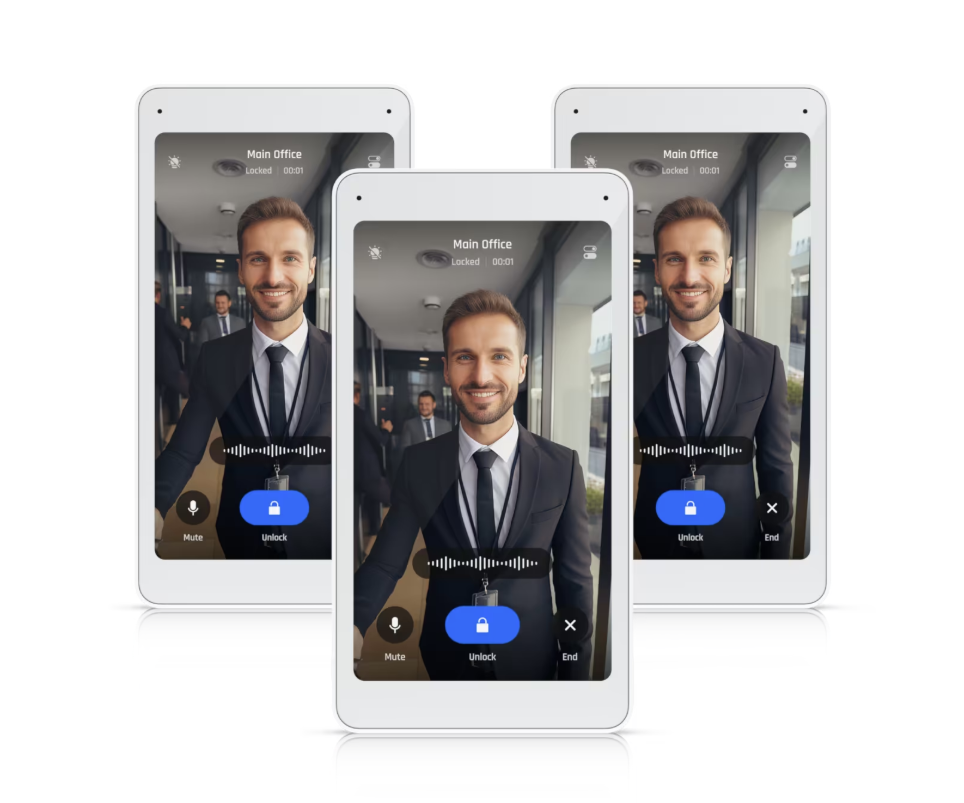

Display that works with Intercom and Reader Pro for visitor screening and remote access control.
Specifications
Overview

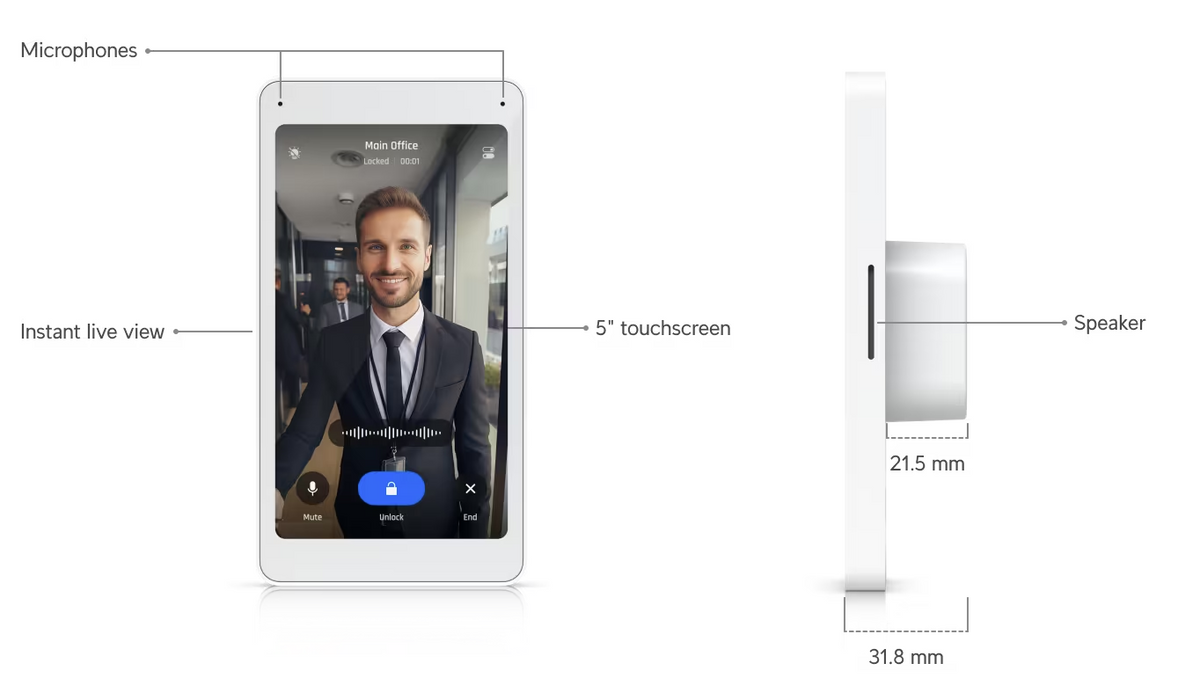

Dimensions: 135 x 185 x 32 mm (5.3 x 7.3 x 1.3")
Mobile Unlock: ✓
NDAA Compliant: ✓
UL 294 Level: Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight: 168 g (5.9 oz)
Enclosure Material: Glass, polycarbonate
Mount Material: Aluminum alloy
Mounting: Wall (Included) Gang box mount (Optional)
Indoor and Outdoor Use: Indoor only
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Networking Interface: (1) 10/100 Mbps RJ45 port
Connectivity: Ethernet
Power Method: PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 5W
Supported Voltage Range: 44—57V DC
Display: 127 mm (5") diagonal
Touch Screen Technology: Capacitive multi-touch
Display Luminance: 300 nits (Typical)
Screen Orientation: Portrait
Resolution: 1280 x 720 px
Microphone: ✓
Speaker: ✓
Buttons: (1) Factory-reset
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Intercom-Viewer, V01
Management Application: Access
Software Information: The software version can be checked at https://unifi.ui.com
Features
- Two-way audio
- Instant live view
- 5 touch display
- Connect and power using a PoE switch
- Compatibility: UA-Intercom, UA-G3-Pro, UA-G2-Pro
