Description

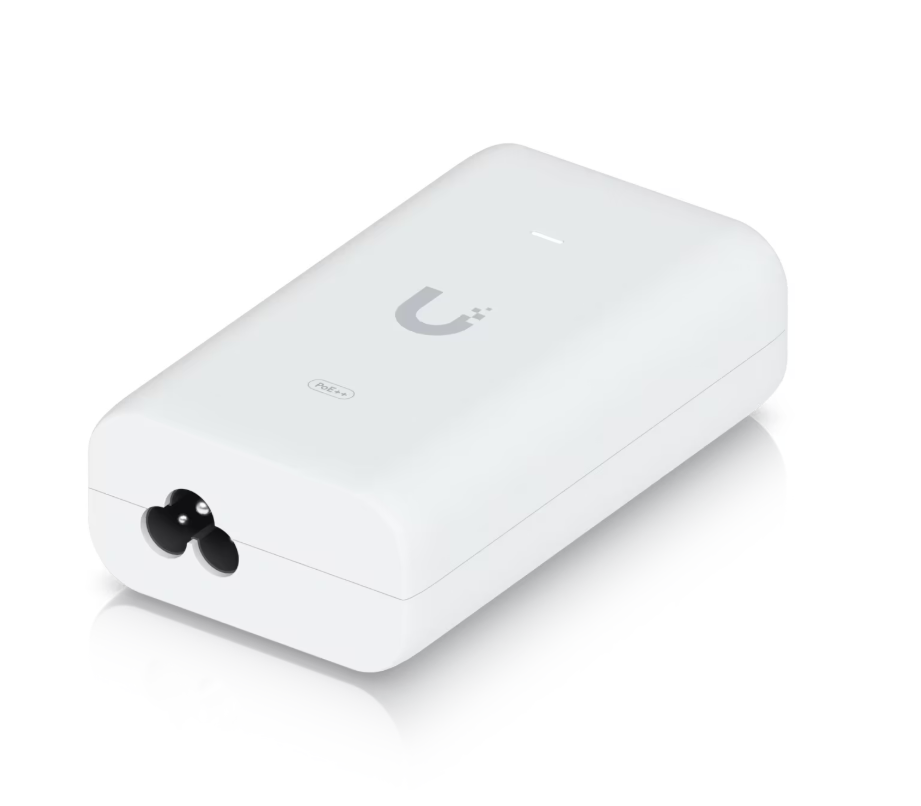

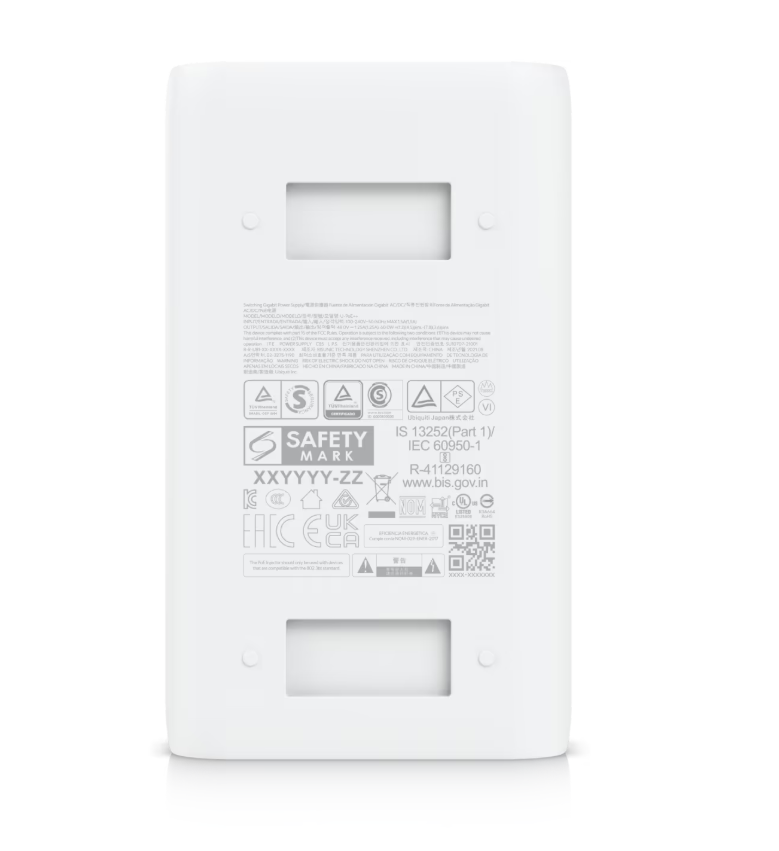

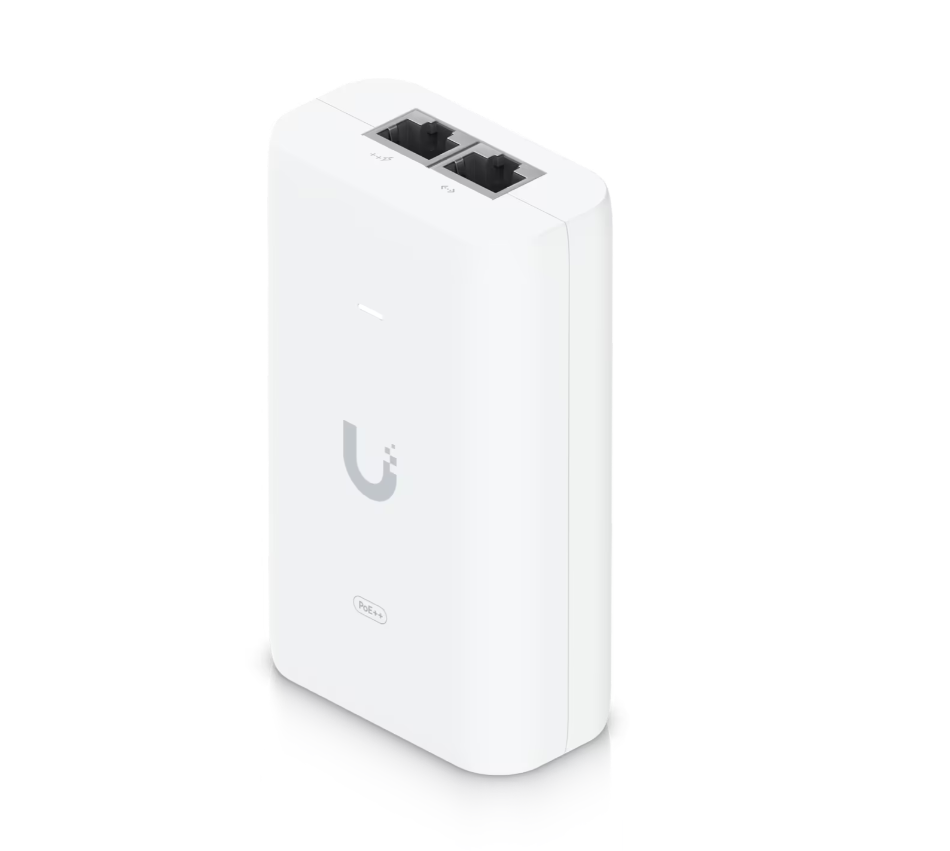

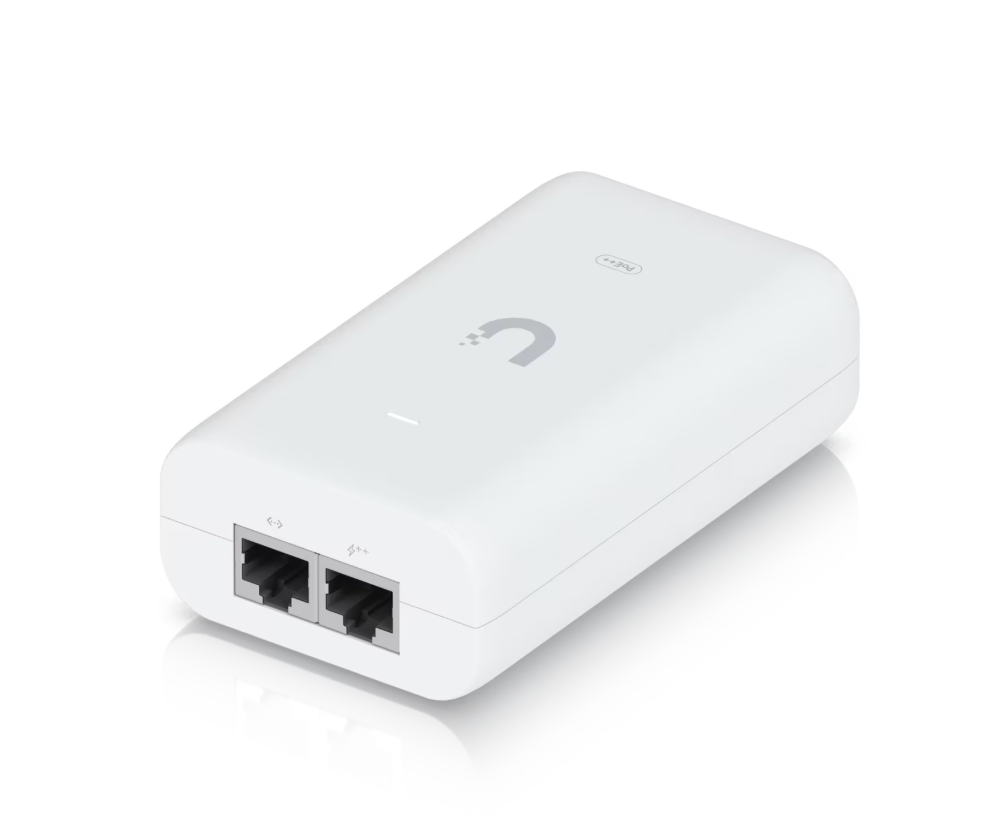

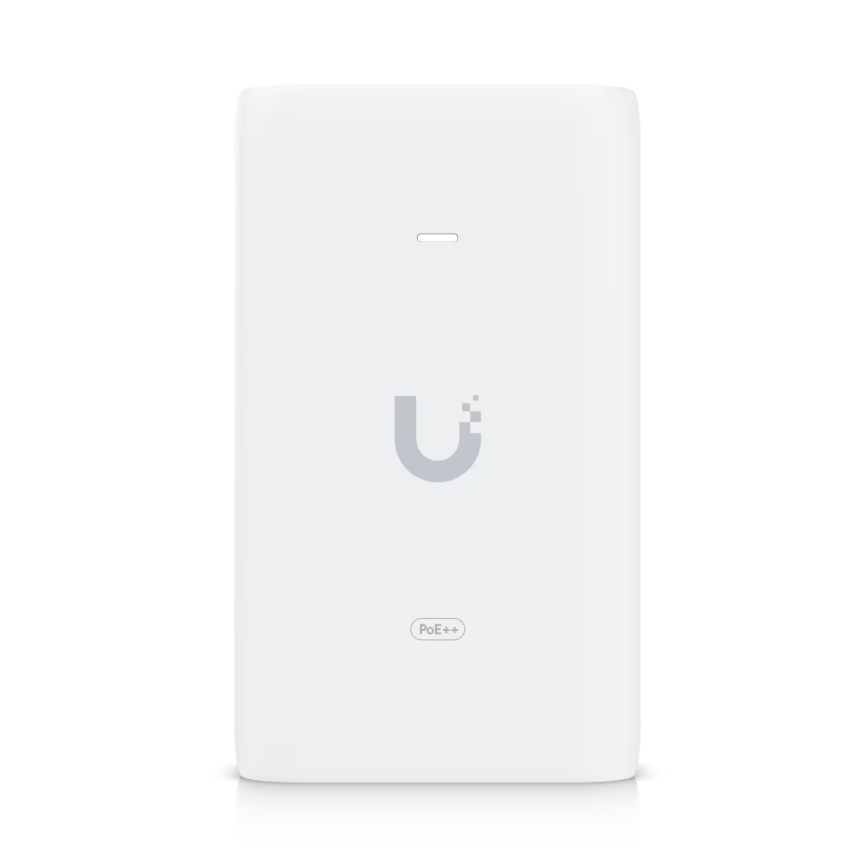

Ubiquiti U-PoE++ PoE++ Adapter (60W)
Product Details
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Compatibility
- UA-G2-SK-Pro
- UA-Hub-Door
- UA-G2-SK
- UC-Display
- UA-SK-Elevator
Specifications
| Specification | Details |
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC @ 1.25A |
| Max. PoE+ Wattage | 60W |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Input Current | 1.3A @ 120V AC |
| Inrush Current | <100A peak @ 120V AC / <200A peak @ 230V AC |
| Efficiency | 85+% |
| Gigabit LAN Port | Yes (✓) |
| Data In / PoE | RJ45 Shielded Socket |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Operating Temp. | 0 to 40° C (32 to 104° F) |
| Storage Temp. | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | Yes (✓) |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| NDAA Compliant | Yes (✓) |
| Certifications | CE, FCC, IC, UL, CCC |
